PAM8610
A Product Line of
Diodes Incorporated

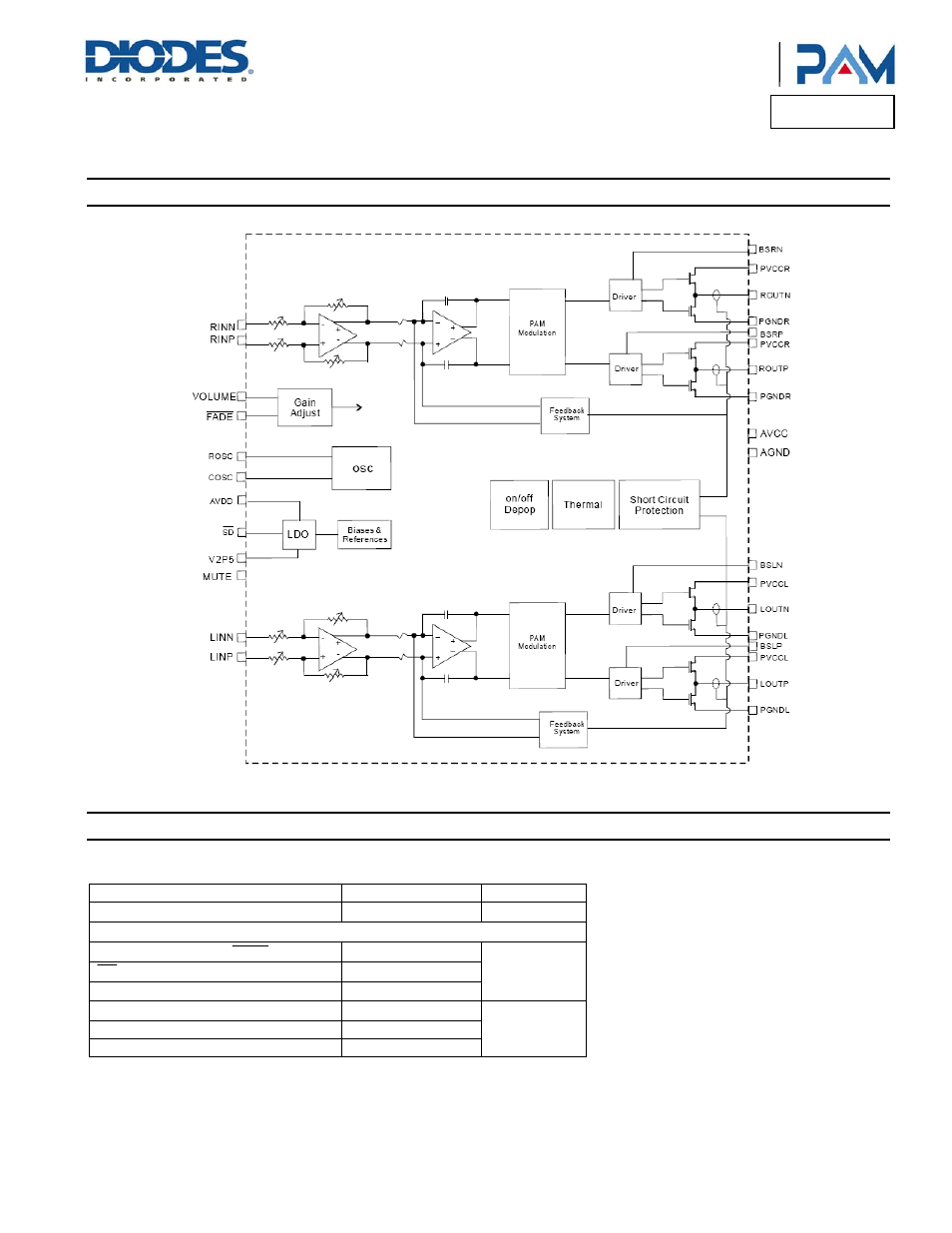

Functional Block Diagram
Absolute Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
These are stress ratings only and functional operation is not implied. Exposure to absolute maximum ratings for prolonged time periods may
affect device reliability. All voltages are with respect to ground.
Parameter Rating Unit
Supply Voltage V DD
-0.3 to +16.5 V
Input Voltage RangeV I :
MUTE, V REF , VOLUME, FADE 0 to +6.0
V SD -0.3 to V DD
RINN, RINP, LINN, LINP -0.3 to +6.0
Junction Temperature Range, T
J
-40 to +125
°C Storage Temperature -65 to +150
Lead Temperature 1, 6mm (1/16 inch) 260, 5 sec
