PAM8406
Document number: DSxxxxx Rev. 1 - 0
1 of 14
www.diodes.com
March 2013
© Diodes Incorporated
PAM8406
A Product Line of
Diodes Incorporated
ALTERNATIVE 5W STEREO AUDIO AMPLIFIER
Description
The PAM8406 is a 5W audio amplifier with an alternative option
between Class-D and Class-AB output which makes PAM8406 very
ideally for the applications efficiency-EMI compatible.
PAM8406 offers low THD+N, high SNR allowing it to achieve high-
quality sound reproduction. The fully differential output wi th new filter
less architecture (Class-D Mode) allows the device to drive the
speaker directly, requiring no low-pass output filters and DC blocking
capacitors, thus to save the system cost and PCB area.
The efficiency of the PAM8406 is up to 90%. It can extend the battery
life, ideally for portable applications. The PAM8406 is fully protected
against faults with short circuit protection and thermal protection.
The PAM8406 is available in SOP-16L/SOP-16(EP) package.
Features
 Alternative Output: Class-D or Class-AB
 5W Output at 10% THD with a 2Ω Load and 5V Power Supply
at Class-D Mode
 3W Output at 10% THD with a 4Ω Load and 5V Power Supply
 Filterless, Low Quiescent Current and No EMI
 Low THD+N at Fully Output Range
 Superior Low Noise
 Efficiency up to 90% with Class-D Mode
 No Pop At Turn-on/off
 Fully Short Circuit Protection With Auto Recovery
 Thermal Shutdown
 Few External Components to Save the Space and Cost
 SOP-16L/SOP-16(EP) Package

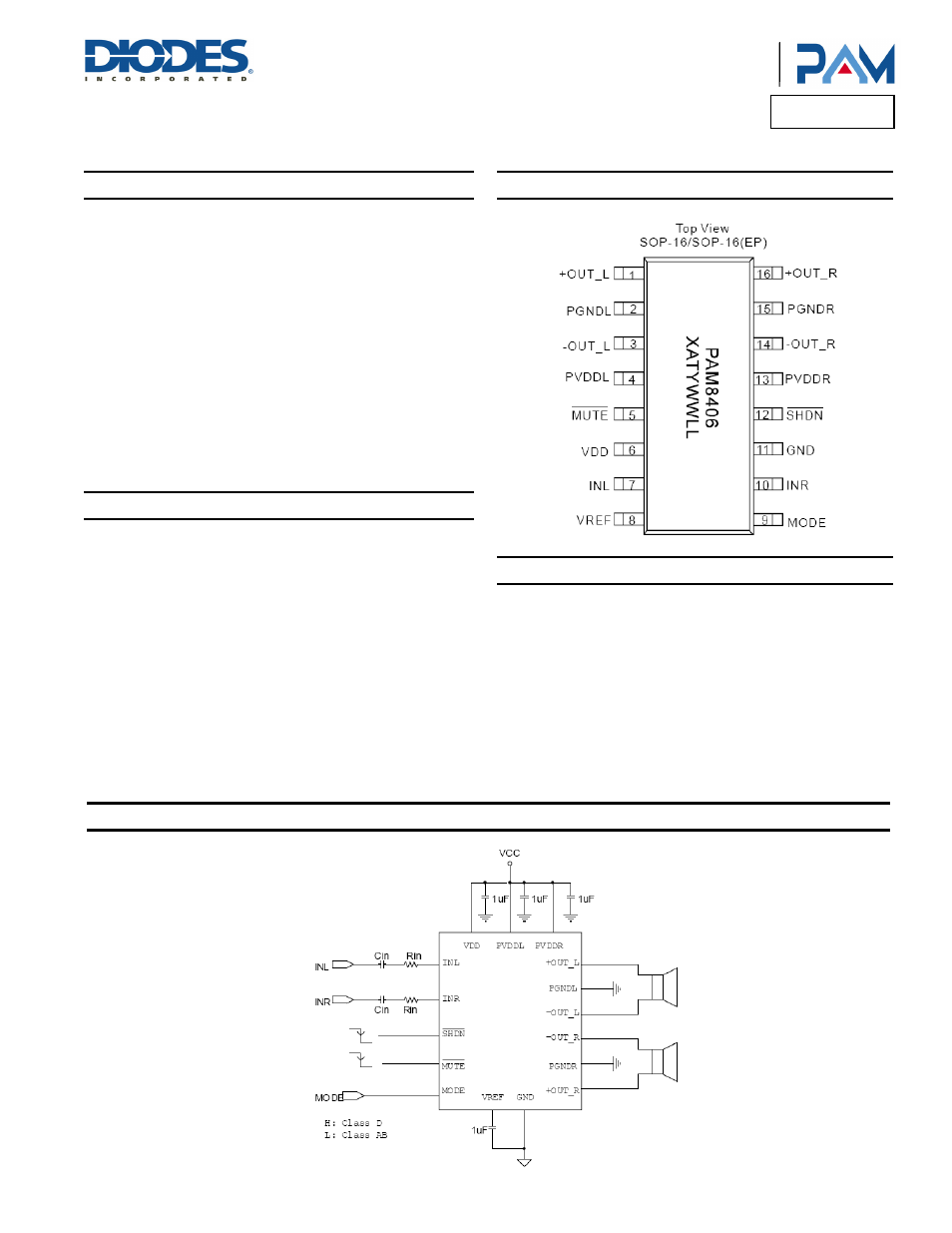

Pin Assignments
Applications
 LCD TVs
 Mutimedia Speakers
 AM/FM System
 DABs
Typical Applications Circuit
