PAM8320
Document number: DS36610 Rev. 1 - 2
1 of 11
www.diodes.com
October 2013
© Diodes Incorporated
PAM8320
New Product
A PRODUCT LINE OF
DIODES INCORPORATED
20W Mono Class D Audio Amplifier
Description
The PAM8320 is an efficient 20W mono Class-D audio power
amplifier, designed to drive speakers as low as 4Ω in a bridge-tied-
load configuration. Due to the low power dissipation and high
efficiency of up to 95%, the device can be used without any external
heat sink whilst playing music.
The PAM8320 features short circuit protection, thermal shutdown,
over voltage protection and under voltage lock-out.
The PAM8320 is available in a SO-16EP package.
Features
 Operates from 4.5V to 15V
 20W into 4Ω BTL Load from 12V Supply
 Single-Ended Analog Input
 No Pop Noise for Start-up and Shut-down Sequences
 Internal Oscillator (No External Components Required)
 High Efficient Class-D Operation Eliminates Need for Heat Sinks
 Thermal and Short-Circuit Protection with Auto Recovery
 Over Voltage Protection and Under Voltage Lock-out
 Space-Saving Surface-Mount SO-16EP Package
 Pb-Free Package
Pin Assignments
SO-16EP
PVCCN
SDN
MUTE
VCM
AGND
AGND
VCLAMP
PVCCP PGNDP
OUTP
BSP
AVCC
BSN
OUTN
PGNDN
P
A
M
832
0
X
XXY
W
W
L
L
9
1
2
3
4
5
6
7
8
10
11
12
13
14
15
16
IN
Applications
 PC Speaker
 Blue Tooth Speaker
 Home Sound Systems
 Active Speakers
 Docking stations

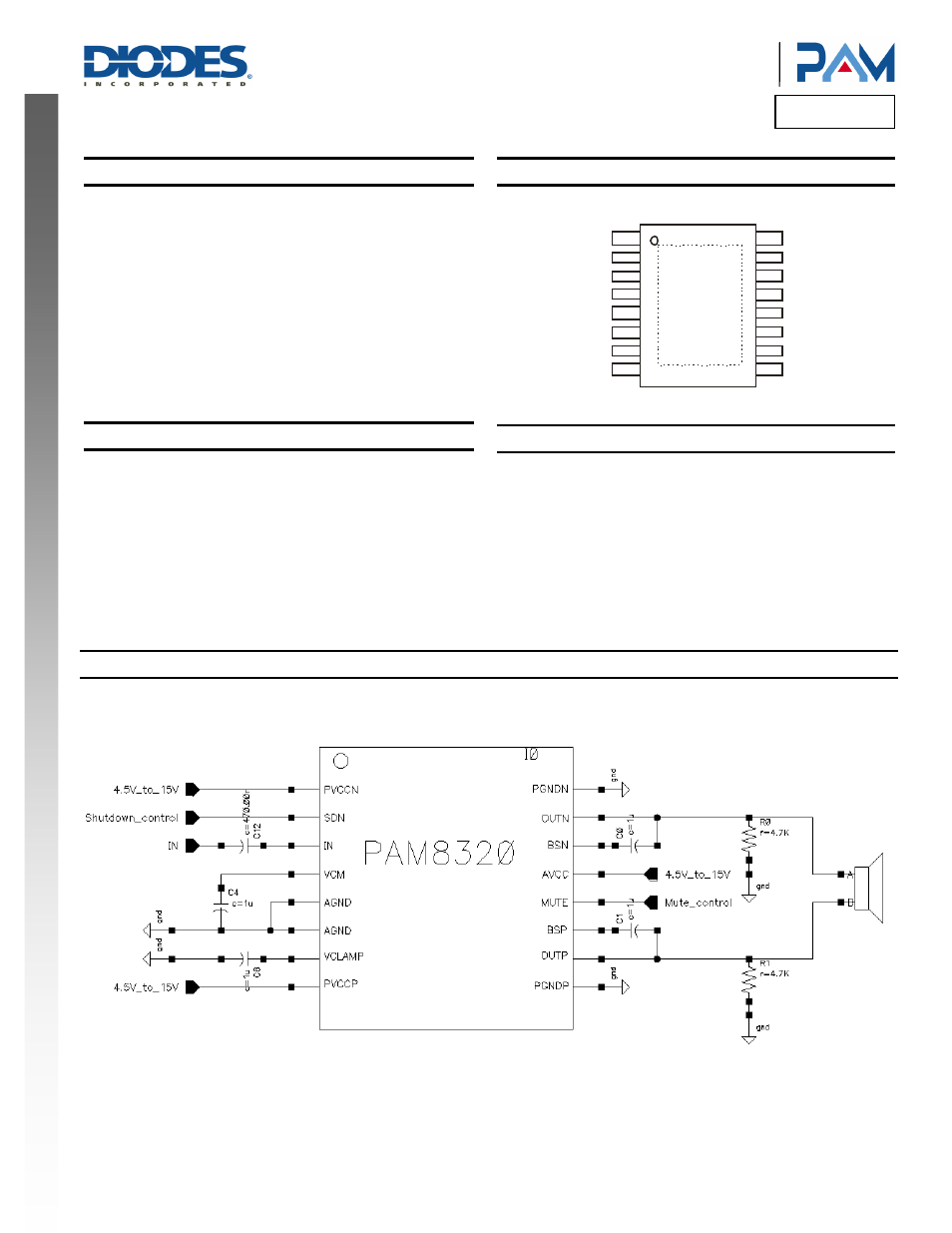

Typical Applications Circuit
