PAM8301
Document number: DSxxxxx Rev. 1 - 3
6 of 10
www.diodes.com
July 2013
© Diodes Incorporated
PAM8301
A Product Line of
Diodes Incorporated

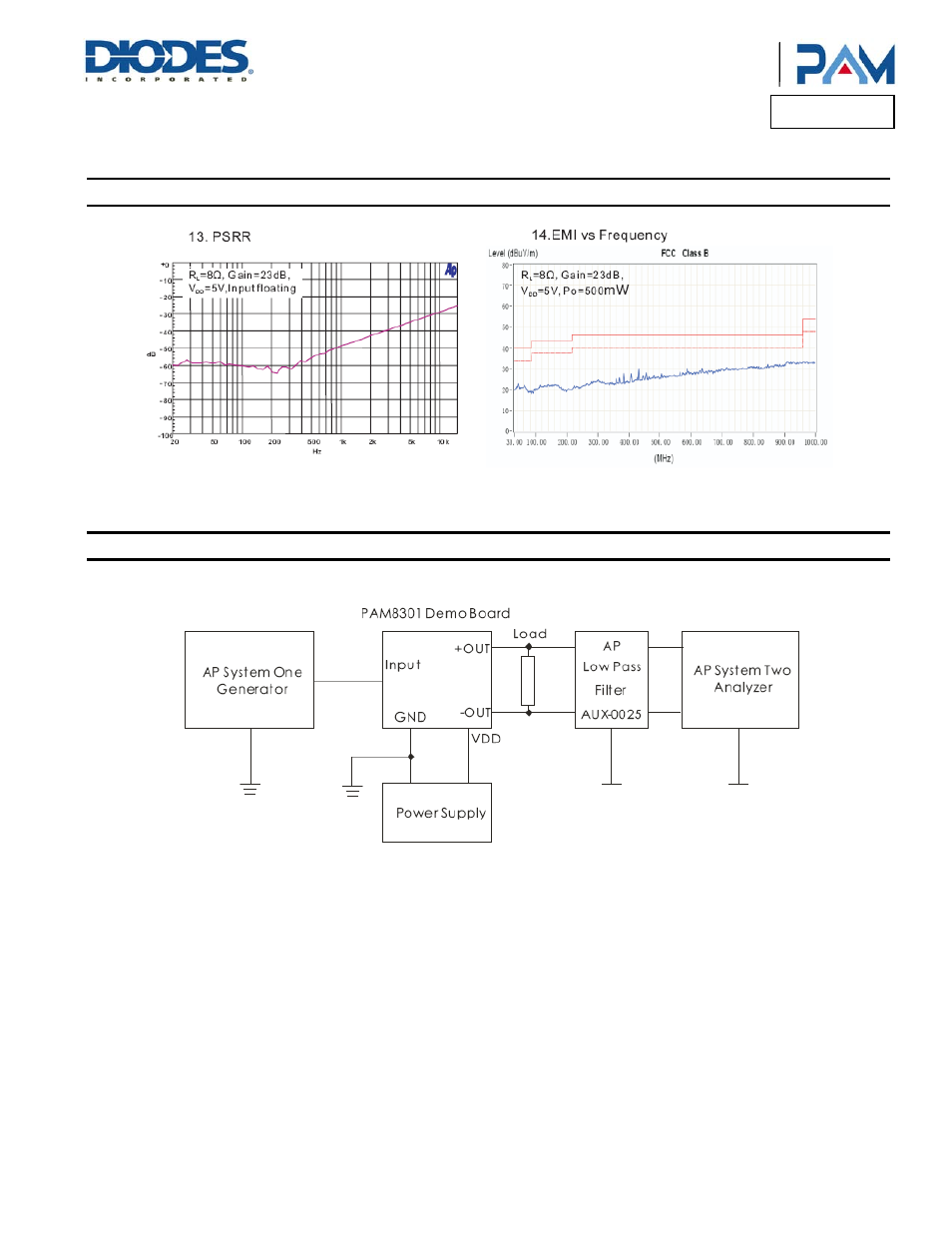

Typical Performance Characteristics
(cont.) (@T
A
= +25°C, unless otherwise specified.)
Application Information
Test Setup for Performance Testing
Notes: 1. The AP AUX-0025 low pass filter is necessary for every class-D amplifier measurement with AP analyzer.
2. Two 22 μH inductors are used in series with load resistor to emulate the small speaker for efficiency measurement.
