PAM2327
Document number: DS36277 Rev. 2 - 2
9 of 11
July 2013
© Diodes Incorporated
PAM2327
A Product Line of
Diodes Incorporated
Application Information
(cont.)
Hiccup Mode Short Circuit Control
When the converter output is shorted or the device is overloaded,each high-side MOSFET current- limit event turns off the high-side MOSFET and
turns on the low-side MOSFET. An internal counter is used to count the each current-limit event. The counter is reset after consecutive high-side
MOSFETs turn on without reaching current limit. If the current- limit condition persists, the counter fills up. The control logic then stops both high-
side and lowside MOSFETs and waits for a hiccup period, before attemping a new soft-start sequence. The counter bit is decided by V
FB
voltage.
If V
FB
≤ 0 2, the counter is 3-bit counter; if V
FB
>0.2 the counter is 6-bit counter. The typical hicuup made duty cycle is 1.7%. The hicuup mode is
disable during soft-start time.
Thermal Shutdown
When the die temperature exceeds +150°C, a reset occurs and the reset remains until the temperature decrease to +120°C, at which time the
circuit can be restarted.

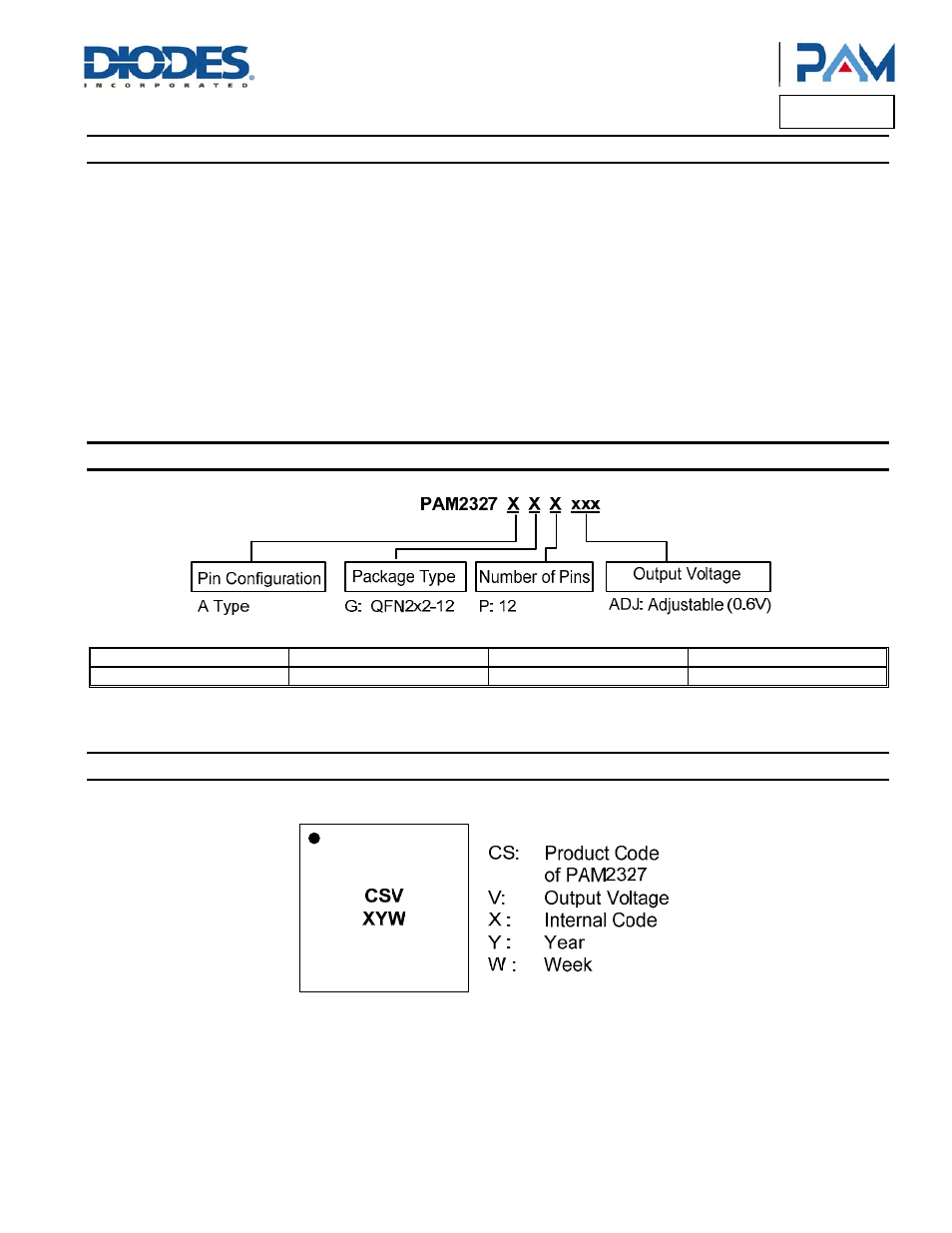

Ordering Information
Part Number
Marking
Part Type
Standard Package
PAM2327AGPADJ
CSVXYW
QFN2x2-12
3000 Units/Tape & Reel
Marking Information
