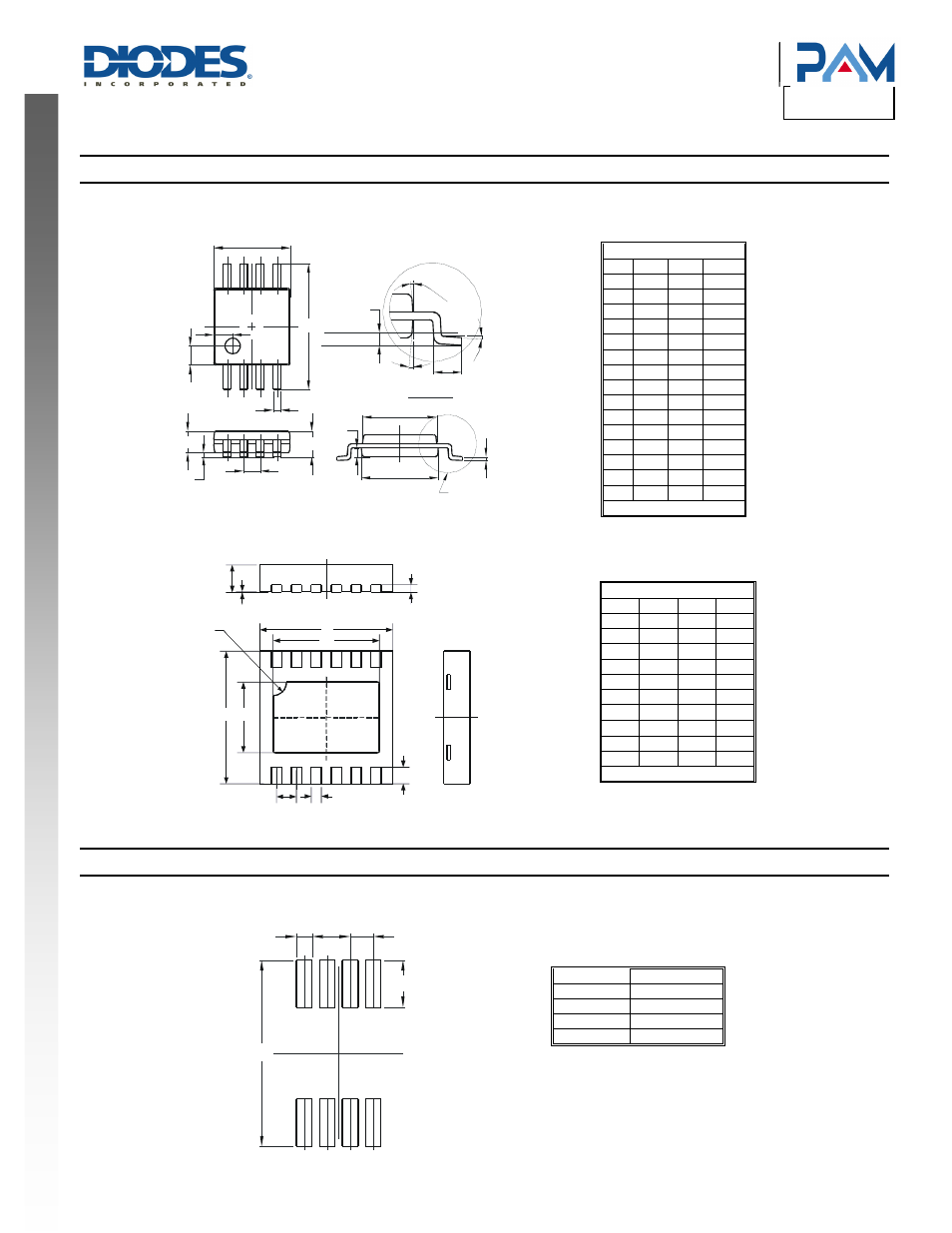

Package Outline Dimensions
(All dimensions in mm.)
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for the latest version.
(1) MSOP-8
(2) U-DFN3030-12
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
(1) MSOP-8
MSOP-8
Dim Min Max Typ
A - 1.10 -
A1 0.05 0.15 0.10
A2 0.75 0.95 0.86
A3 0.29 0.49 0.39
b 0.22 0.38 0.30
c 0.08 0.23 0.15
D 2.90 3.10 3.00
E 4.70 5.10 4.90
E1 2.90 3.10 3.00
E3 2.85 3.05 2.95
e - - 0.65
L 0.40 0.80 0.60
a 0° 8° 4°
x - - 0.750
y - - 0.750
All Dimensions in mm
U-DFN3030-12
Dim Min Max Typ
A 0.57 0.63 0.60
A1 0 0.05 0.02
A3 ⎯ ⎯ 0.15
b 0.18 0.28 0.23
D 2.90 3.10 3.00
D2 2.30 2.50 2.40
e ⎯ ⎯ 0.45
E 2.90 3.10 3.00
E2 1.50 1.70 1.60
L 0.25 0.55 0.40
All Dimensions in mm
Dimensions Value (in mm)
C 0.650
X 0.450
Y 1.350
Y1 5.300
A
A1
A2
e
Seating Plane
Gauge Plane
L
See Detail C
Detail C
c
a
E1
E3
A3
1
E
y
x
D
b
0.25
4x10°
4x1
0°
SEATING PLANE
A3
A
A1
Pin#1 ID
L
E E2
D
D2
e b
X C
Y
Y1
