Diodes MMDTA06 User Manual
Features & benefits, Mechanical data, Ordering information
MMDTA06
Document Number: DS35114 Rev: 1 - 2
1 of 8
April 2011
© Diodes Incorporated
MMDTA06
ADVAN
CE I
N
F
O
RM
ATI
O
N

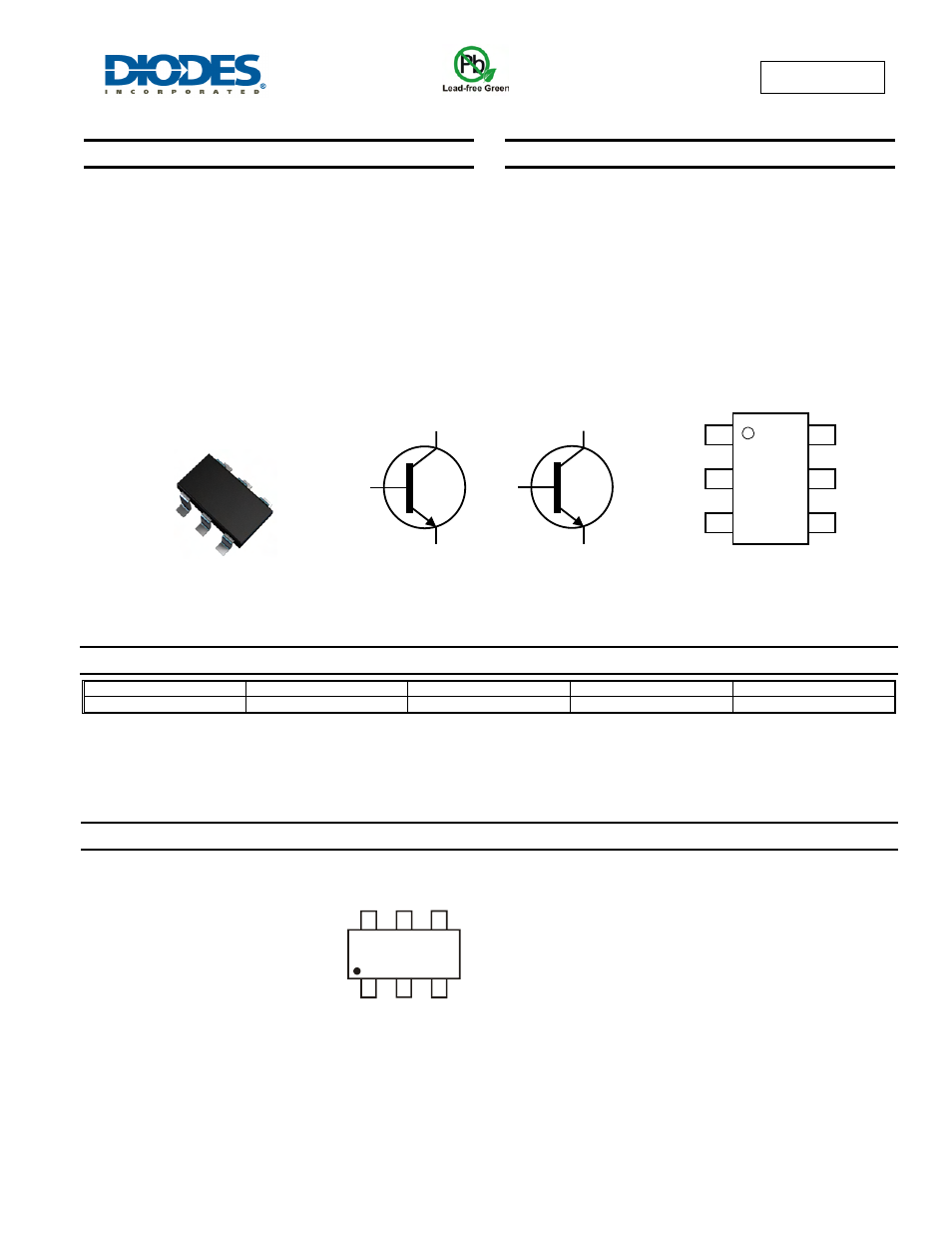

80V DUAL NPN SMALL SIGNAL SURFACE MOUNT TRANSISTOR
Features & Benefits
• BV
CEO
> 80V
•
I
CM
= 1A Peak Pulse Current
•
General purpose NPN transistors ideally suited for low power
amplification and switching applications
•
Dual transistors in a single SOT26 package taking half the
footprint of two equivalent transistors in SOT23
•
Epitaxial planar die construction
•
“Lead Free”, RoHS Compliant (Note 1)
•
Halogen and Antimony Free. "Green" Device (Note 2)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
SOT26
•
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Solderable per MIL-STD-202, Method 208
•
Lead Free Plating: Matte Tin Finish annealed over Copper
leadframe
•
Weight: 0.015 grams (approximate)
Ordering Information
(Note 3)
Product
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
MMDTA06-7
A06 7 8 3,000
Notes:
1. No purposefully added lead.
2. Diodes Inc’s “Green” Policy can be found on our websit
3. For packaging details, go to our website at
Marking Information
A06 = Product Type Marking Code
Device Symbol
Top View
Pin-Out
C1
E1
C2
B1
E2
B2
Top View
SOT26
C2
E2
B2
C1
E1
B1
A06
