Diodes DLD101 - Manual (Page 8)

DLD101
Document number: DS32007 Rev. 8 - 2
8 of 9
www.diodes.com
April 2010
© Diodes Incorporated
DLD101
NEW PROD
UC
T

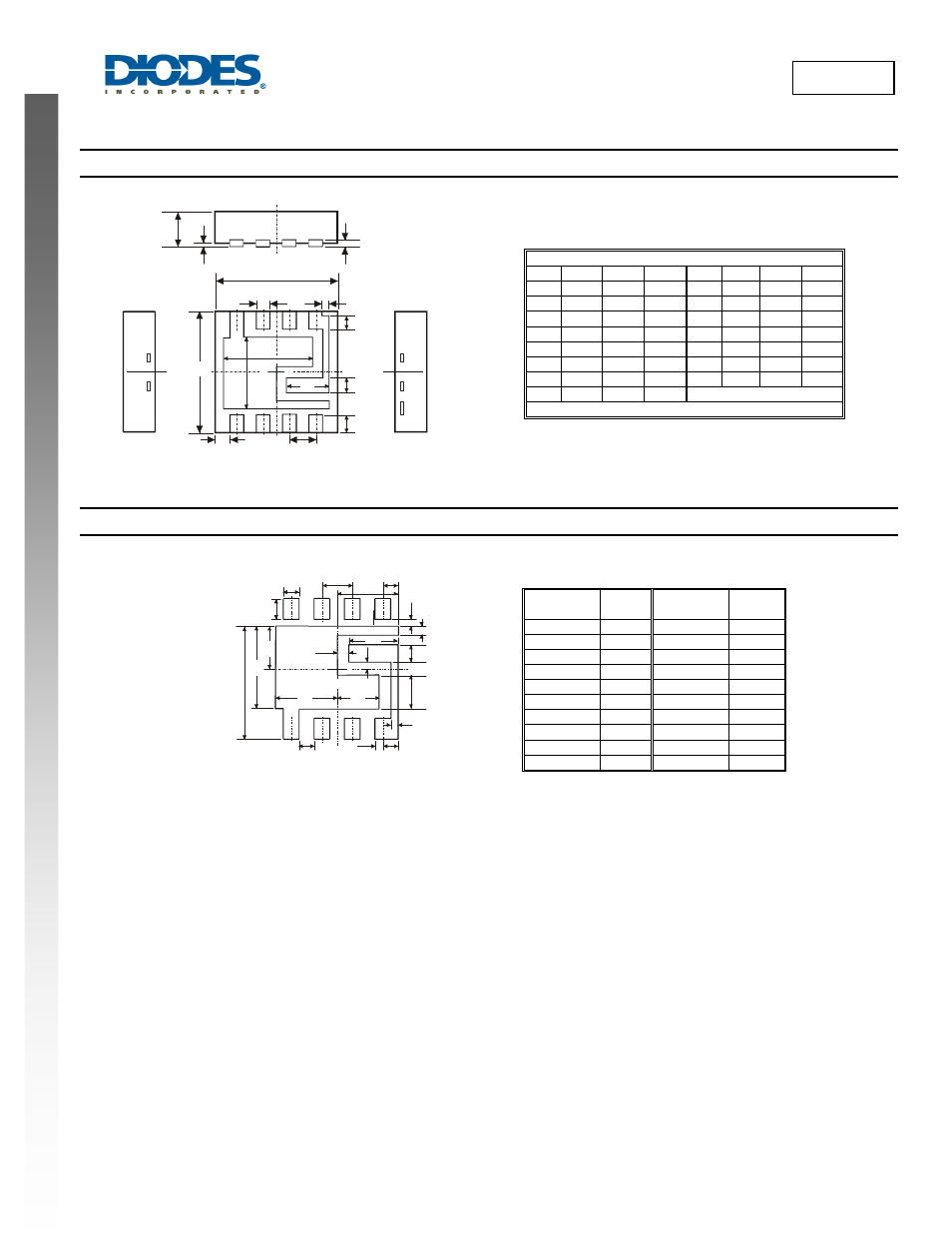

Package Outline Dimensions
Suggested Pad Layout
DFN3030D-8
Dim Min Max Typ Dim Min Max Typ
A 0.570 0.630 0.600 e - - 0.650
A1 0 0.050 0.020 E 2.950 3.075 3.000
A3 - - 0.150 E1 1.800 2.000 1.900
b 0.290 0.390 0.340 E2 0.290 0.490 0.390
D 2.950 3.075 3.000 E3 0.175 0.375 0.275
D1 2.175 2.375 2.275 L 0.300 0.40 0.350
D2 0.980 1.180 1.080 Z - - 0.355
D3 0.105 0.305 0.205
All Dimensions in mm
Dimensions
Value
(in mm)
Dimensions
Value
(in mm)
C 0.650 X2 0.220
G 0.150 X3 0.375
G1 0.950 X4 1.080
G2 0.270 X5 0.150
G3 0.135 Y 2.600
G4 1.350 Y1 1.900
G5 0.925 Y2 0.150
G6 1.350 Y3 0.390
X 0.440 Y4 0.815
X1 0.210 Y5 0.550
Y
Y5
Y2
Y3
Y4
G2
G3
G
G6 X
X1 X2 X3
X5
C
Y1
G1
G4 G5
X4
X3
A1
A3 SEATING PLANE
A
D
b D3
E
e
L
E2
E3
E1
D1
D2
BOTTOM VIEW
Z
