DT2042-04SO
Document number: DS36296 Rev. 2 - 2
4 of 5
www.diodes.com
August 2013
© Diodes Incorporated
DT2042-04SO
ADVAN
CE I
N
F
O
RM
ATI
O
N

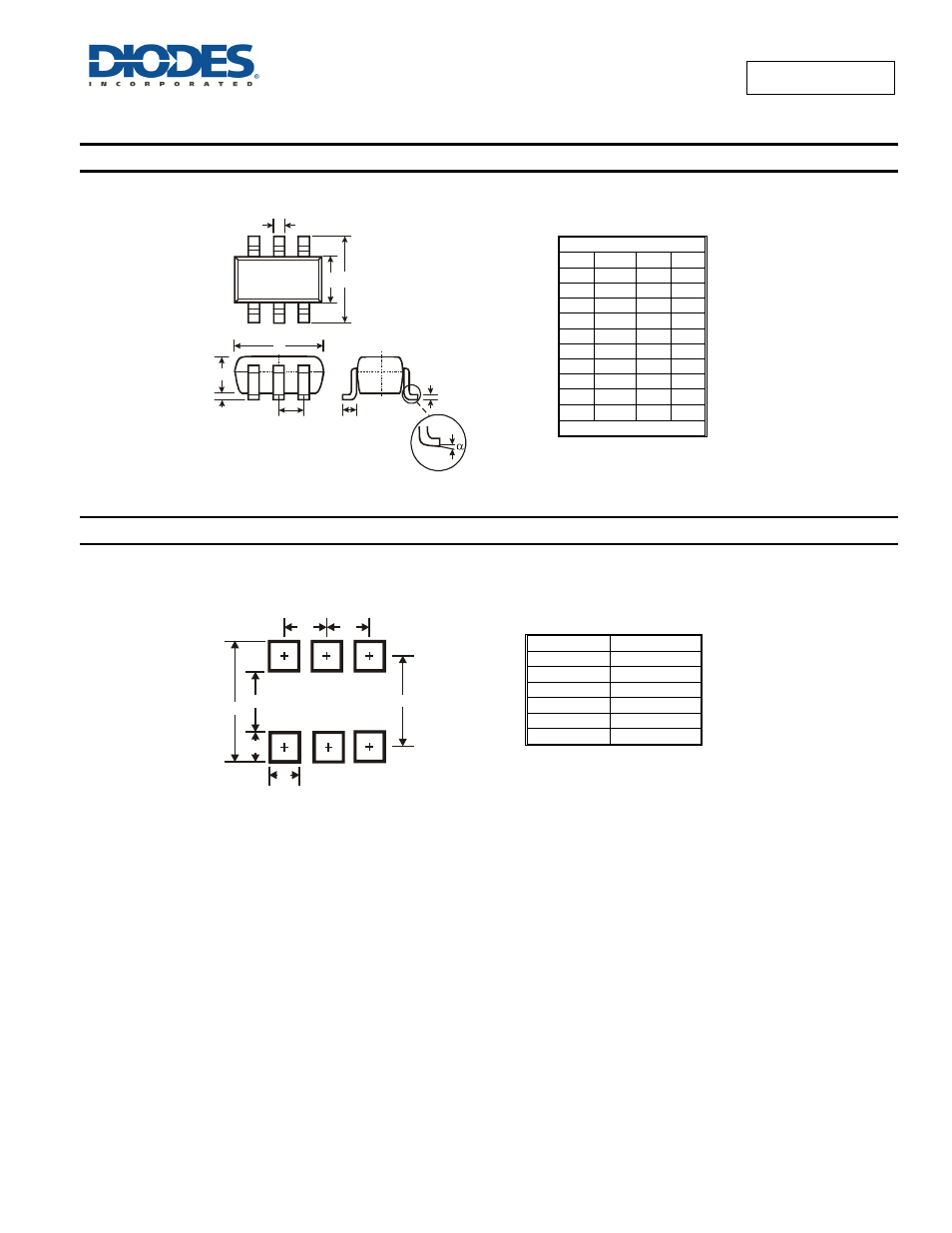

Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
SOT26
Dim Min Max Typ
A 0.35 0.50 0.38
B 1.50 1.70 1.60
C 2.70 3.00 2.80
D   0.95
H 2.90 3.10 3.00
J 0.013 0.10 0.05
K 1.00 1.30 1.10
L 0.35 0.55 0.40
M 0.10 0.20 0.15
 0° 8° 
All Dimensions in mm
Dimensions Value (in mm)
Z 3.20
G 1.60
X 0.55
Y 0.80
C1 2.40
C2 0.95
A
M
J
L D
B C
H
K
X
Z
Y
C1
C2 C2
G
