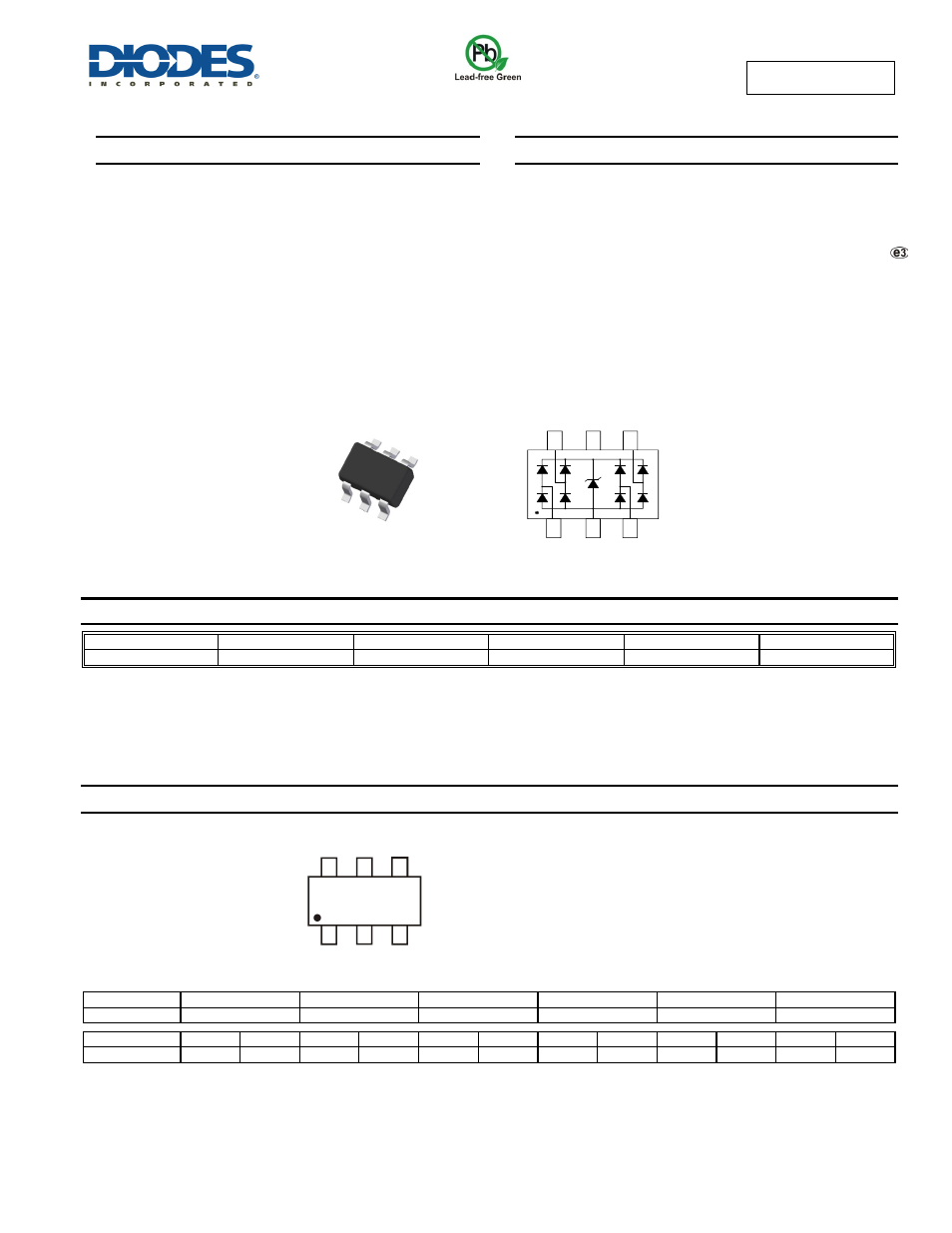

DT2042-04SO

Document number: DS36296 Rev. 2 - 2

1 of 5

www.diodes.com

August 2013

© Diodes Incorporated

DT2042-04SO

ADVAN

CE I

N

F

O

RM

ATI

O

N


4 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY

Features

Low Clamping Voltage

Typical 9V at 10A 100ns, TLP

Typical 9V at 10A 8μs/20μs

IEC 61000-4-2 (ESD): Air – ±30kV, Contact – ±30kV

IEC 61000-4-4 (EFT): 60A(5/50ns, I/O to V

ss

)

IEC 61000-4-5 (Lightning): ±10A

4 Channels of ESD protection

Low Channel Input Capacitance of 1.2pF Typical

TLP Dynamic Resistance: 0.25Ω

Typically Used for High Speed Ports such as USB 2.0,
IEEE1394, VGA, Laptop and Personal Computers,

Flat Panel Displays, Video Graphics Displays, SIM Ports

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Mechanical Data

 Case:

SOT26

Case Material: Molded Plastic, “Green” Molding Compound.

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Matte Tin Finish annealed over Copper leadframe

(Lead Free Plating). Solderable per MIL-STD-202, Method 208

Weight: 0.016 grams (approximate)













Ordering Information

(Note 4)

Product

Compliance Marking

Reel Size (inches)

Tape Width (mm)

Quantity per Reel

DT2042-04SO-7

Standard

BC5

7

8

3,000/Tape & Reel

Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.


Marking Information










Date Code Key

Year

2013

2014

2015

2016 2017 2018

Code A

B

C

D

E

F

Month

Jan

Feb

Mar

Apr

May

Jun

Jul

Aug

Sep

Oct

Nov

Dec

Code 1 2 3 4 5 6 7 8 9 O N D








Top View

Device Schematic

BC5 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: A = 2013)
M = Month (ex: 9 = September)

SOT26

A17

YM

BC5

I/O 4

NC

I/O 3

I/O 1

V

SS

I/O 2

6

5

4

3

2

1
