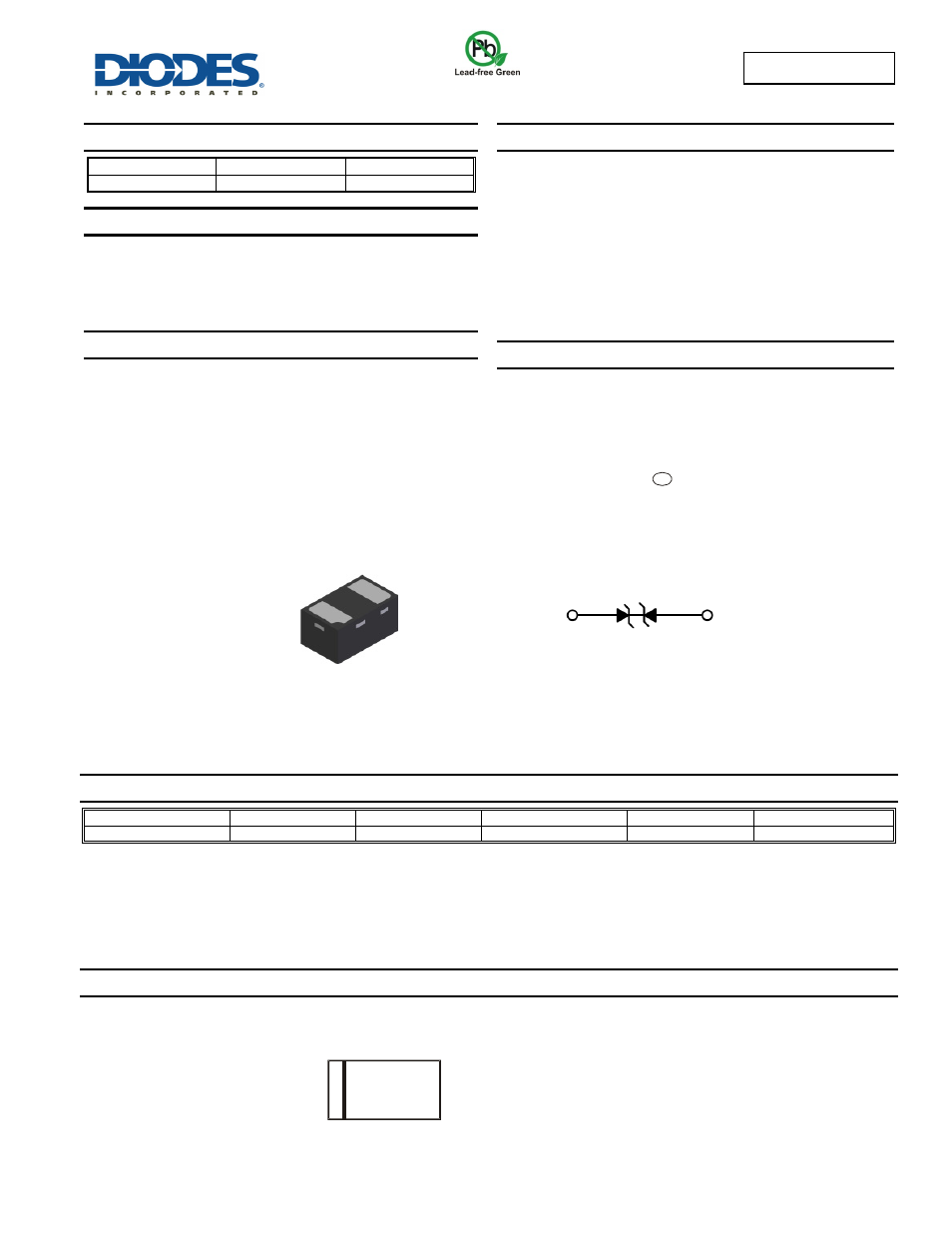

DESDALC5LP
ADVAN
CE I
N
F
O
RM
ATI
O
N
ADVANCED INFORMATION
1 CHANNEL BIDIRECTIONAL TVS DIODE
Product Summary
V
BR (min)
I
PP (max)
I
R (max)
5.8V and 11V
9A
25nA
Description
This new generation TVS is designed to protect sensitive electronics
from the damage due to ESD. The combination of small size and high
ESD surge capability makes it ideal for use in portable applications
such as cellular phones, digital cameras, and MP3 players.
Applications
• Cellular
Handsets
• Portable
Electronics
• Computers
and
Peripheral
Features
•
Low Profile Package (0.53mm max) and Ultra-small PCB Footprint
Area (1.08 * 0.68mm max) Suitable for Compact Portable
Electronics
•
Provides ESD Protection per IEC 61000-4-2 Standard:
Air ±30kV, Contact ±30kV
•
1 Channel of ESD Protection
•
Low Channel Input Capacitance
•
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
• Case:
X1-DFN1006-2
•
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: NiPdAu over Copper leadframe. Solderable per MIL-
STD-202, Method 208
•
Weight: 0.001 grams (approximate)
Ordering Information
(Note 4)
Product
Compliance Marking
Reel Size (inches)
Tape Width (mm)
Quantity per Reel
DESDALC5LP-7B
Standard
Q3
7
8
10,000/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Device Schematic
Bottom View
X1-DFN1006-2
Q3 = Product Type Marking Code
Line Denotes Pin 1
Q3
e4
