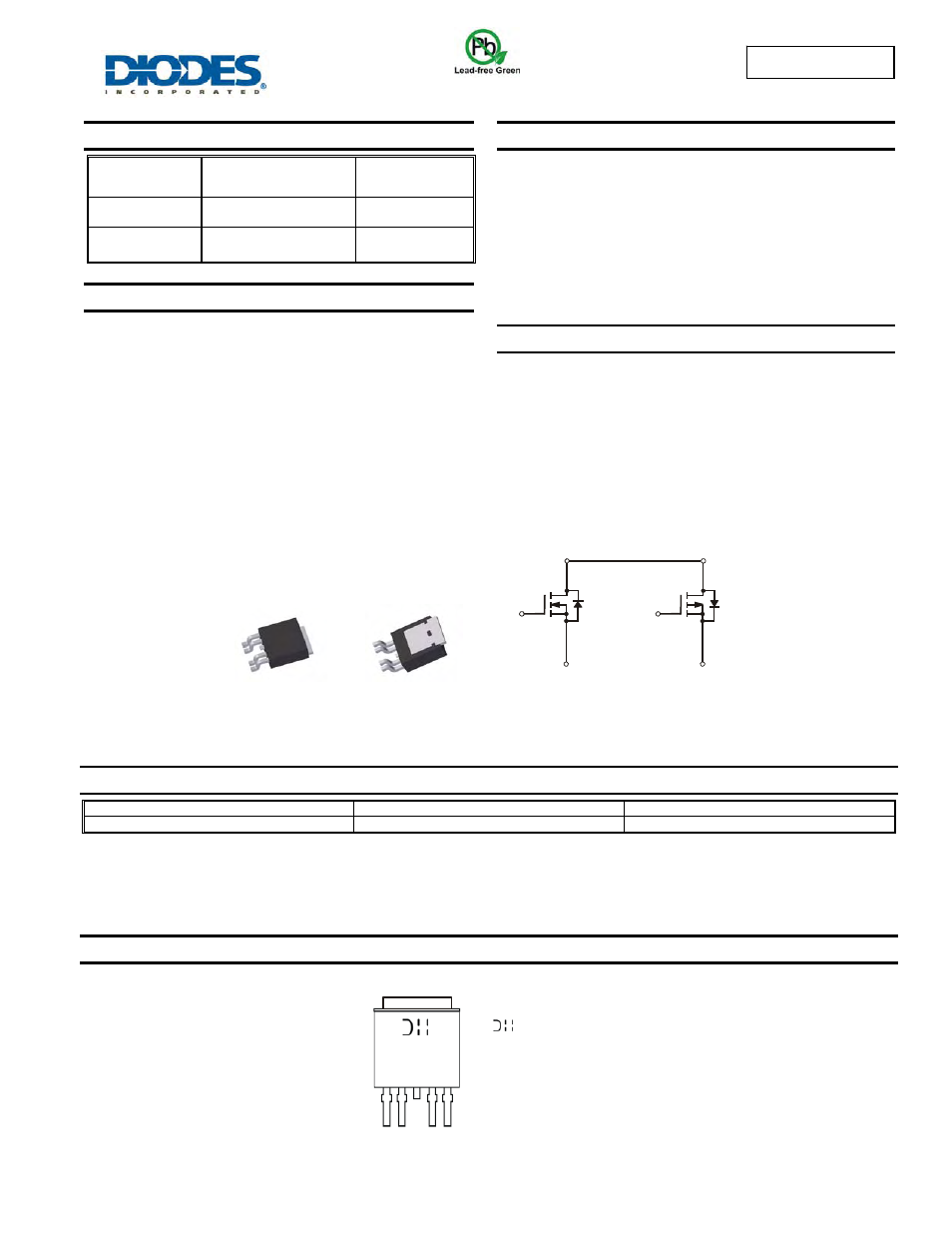

DMG4511SK4
Document number: DS32042 Rev. 4 - 2
1 of 9
July 2011
© Diodes Incorporated
DMG4511SK4
COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(ON)
I
D
T
A
= 25°C
35V 35m
Ω @ V
GS
= 10V
13A
-35V 45m
Ω @ V
GS
= -10V
-12A
Description and Applications
This new generation MOSFET has been designed to minimize the on-
state resistance (R
DS(on)
) and yet maintain superior switching
performance, making it ideal for high efficiency power management
applications.
• Backlighting
• DC-DC
Converters
•
Power management functions
Features and Benefits
• Low
On-Resistance
•
Low Gate Threshold Voltage
•
Low Input Capacitance
•
Fast Switching Speed
•
Low Input/Output Leakage
• Complementary
Pair
MOSFET
•
Lead Free/RoHS Compliant (Note 1)
•
"Green" Device (Note 2)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
TO252-4L
•
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminal Connections: See Diagram Below
•
Terminals: Finish – Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Weight: 0.328 grams (approximate)
Ordering Information
(Note 3)
Part Number
Case
Packaging
DMG4511SK4-7
TO252-4L
3000 / Tape & Reel
Notes:
1. No purposefully added lead.
2. Diodes Inc.'s "Green" policy can be found on our w
3. For packaging details, go to our website at
Marking Information
Top View
Bottom View
D
1
S
1
G
1
D
2
S
2
G
2
N-Channel MOSFET
P-Channel MOSFET
= Manufacturer’s Marking
G4511S = Product Type Marking Code
YYWW = Date Code Marking
YY = Year (ex: 09 = 2009)
WW = Week (01 – 53)
G4511S
YYWW
