DMC3028LSDX
Document number: DS36210 Rev. 3 - 2
8 of 9
www.diodes.com
June 2013
© Diodes Incorporated
DMC3028LSDX
ADVAN
C
E
I
N
F
O
R
MA
T
IO
N
ADVAN
C
E
D
I
N
F
O
RM
AT
IO
N

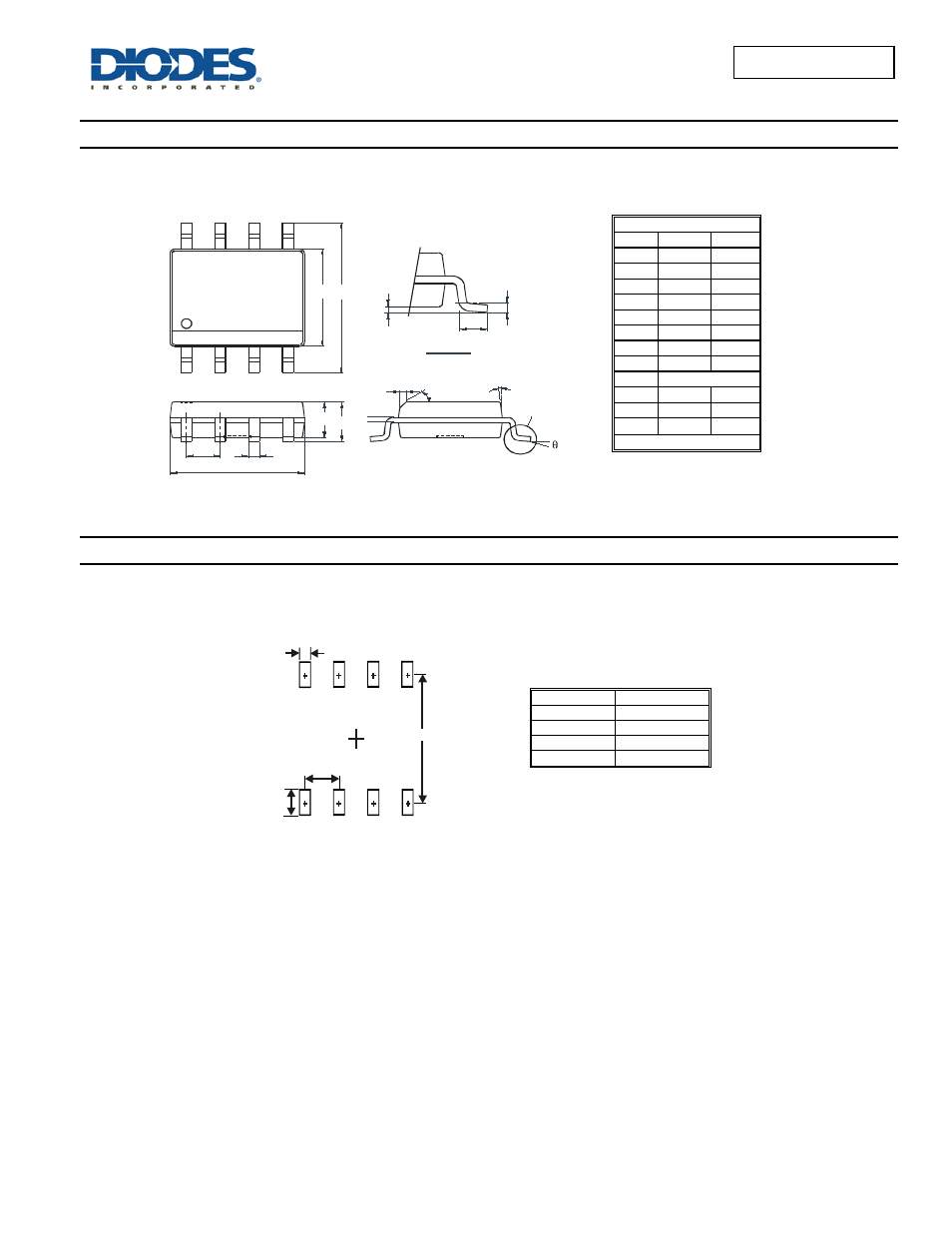

Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
SO-8
Dim Min Max
A - 1.75
A1 0.10 0.20
A2 1.30 1.50
A3 0.15 0.25
b 0.3 0.5
D 4.85 4.95
E 5.90 6.10
E1 3.85 3.95
e 1.27 Typ
h - 0.35
L 0.62 0.82
Θ
0
°
8
°
All Dimensions in mm
Dimensions Value (in mm)
X 0.60
Y 1.55
C1 5.4
C2 1.27
Gauge Plane
Seating Plane
Detail ‘A’
Detail ‘A’
E E1
h
L
D
e b
A2
A1
A
45 °
7 °~ 9 °
A3
0
.2
5
4
X
C1
C2
Y
