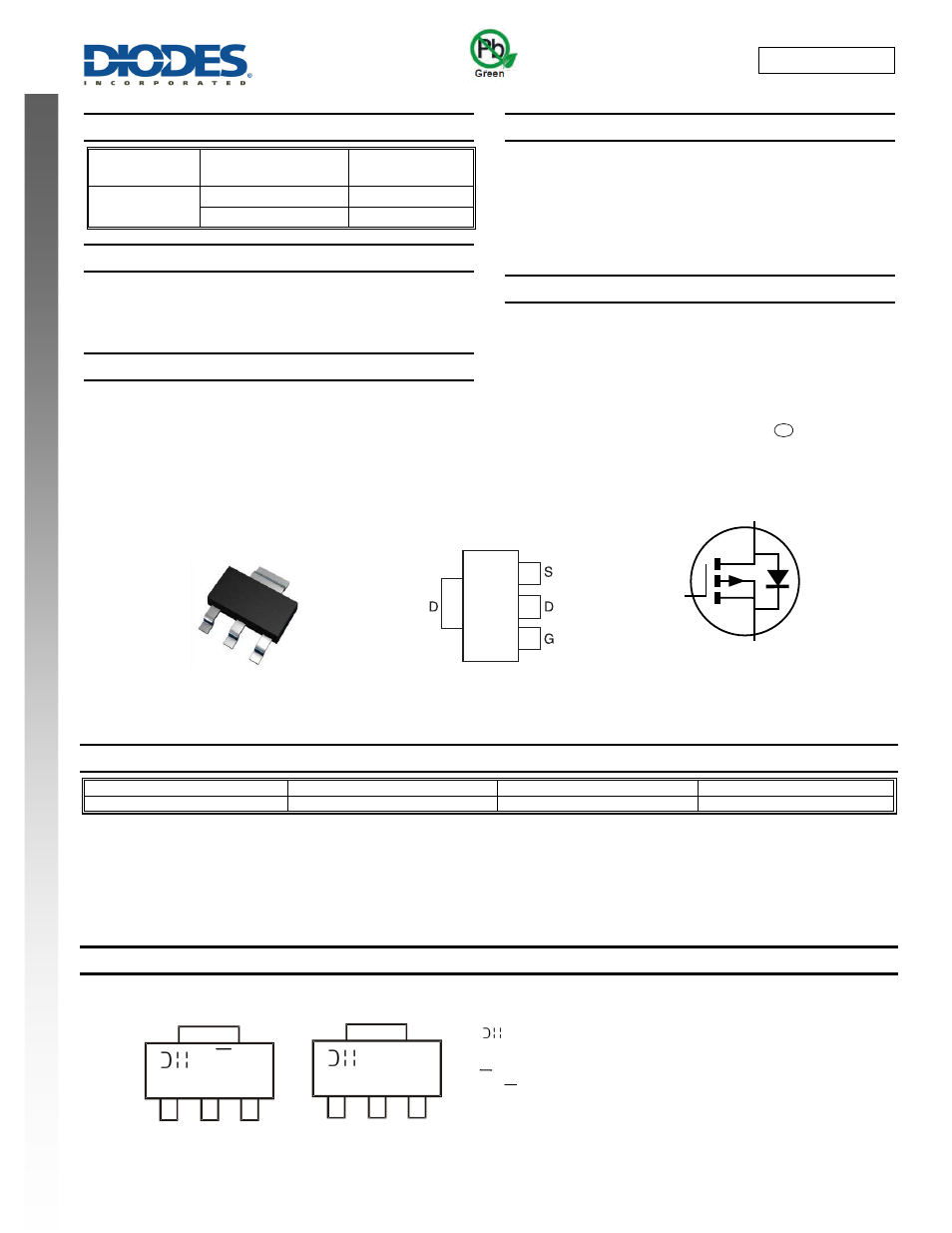

DMP6185SE
ADVAN
CE I
N
F
O
RM
ATI
O
N
NEW PROD
UC
T
60V P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(on)
I
D
T
A
= +25°C
-60V
150mΩ @ V
GS
= -10V -3A
185mΩ @ V
GS
= -4.5V -2.7A
Description
This MOSFET has been designed to minimize the on-state resistance
and yet maintain superior switching performance, making it ideal for
high efficiency power management applications.
Applications
• Motor Control
• Transformer Driving Switch
• DC-DC Converters
• Power Management Functions
• Uninterrupted Power Supply
Features and Benefits
• 100% Unclamped Inductive Switch (UIS) test in production
• Low on-resistance
• Fast switching speed
• Lead-Free Finish; RoHS compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case: SOT223
• Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals Connections: See diagram below
• Terminals: Finish - Matte Tin annealed over Copper lead frame.
Solderable per MIL-STD-202, Method 208
• Weight: 0.112 grams (approximate)
Ordering Information
(Note 4)
Part Number Qualification Case Packaging
DMP6185SE-13 Standard SOT223 2,500 / Tape & Reel
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Pin Out - Top View Top View
SOT223
e3
D
S
G
Equivalent Circuit
P6185
YWW
P6185
YWW
= Manufacturer’s Marking
P6185 = Marking Code
YWW = Date Code Marking for SAT (Shanghai Assembly/ Test site)
YWW = Date Code Marking for CAT (Chengdu Assembly/ Test site)
Y or Y= Year (ex: 3 = 2013)
WW = Week (01 - 53)
