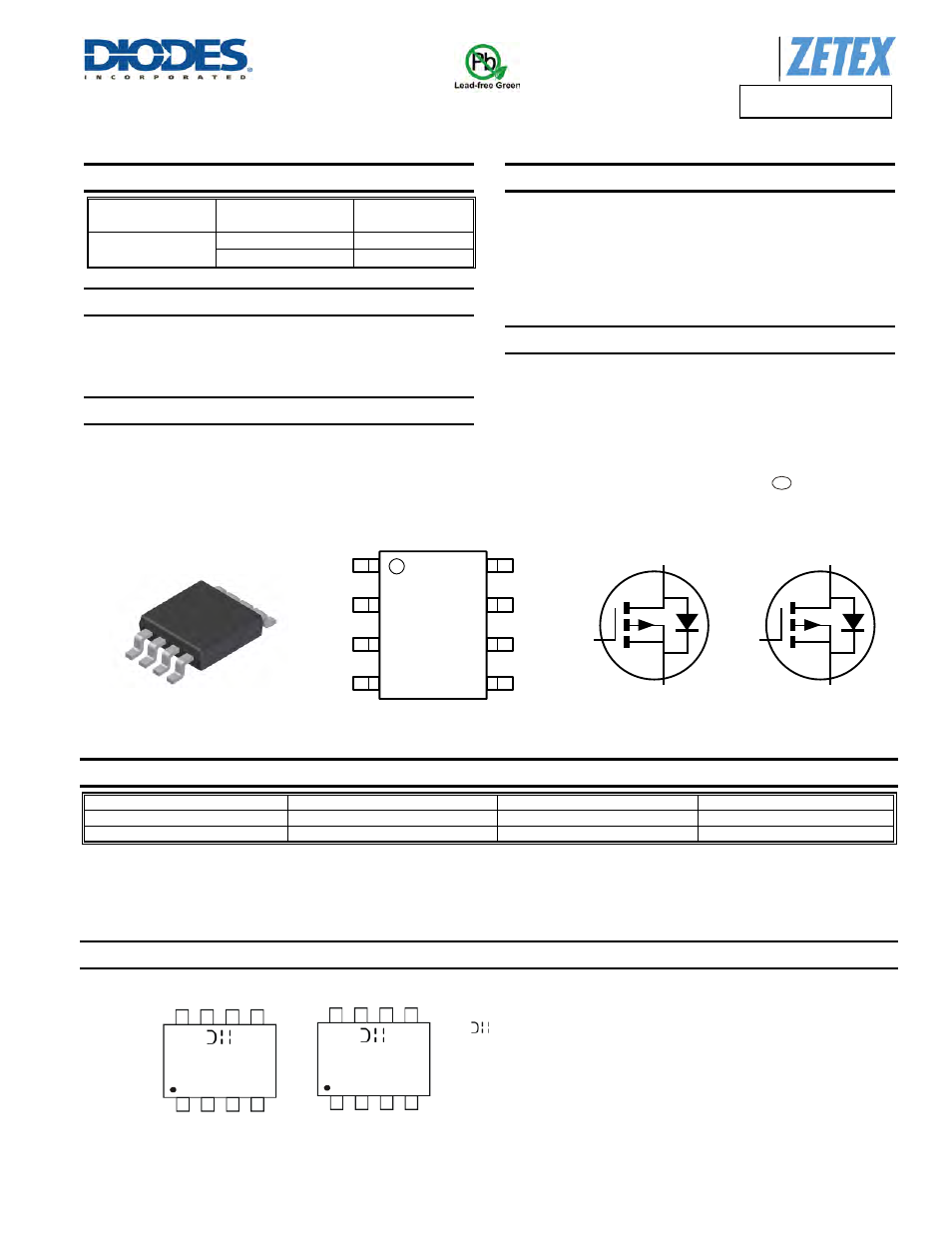

DMP4050SSD

Document Number DS32107 Rev 3 - 2

1 of 8

www.diodes.com

April 2013

© Diodes Incorporated

ADVAN

CE I

N

F

O

RM

ATI

O

N

A Product Line of

Diodes Incorporated

DMP4050SSD



40V DUAL P-CHANNEL ENHANCEMENT MODE MOSFET

Product Summary

V

(BR)DSS

R

DS(on)

Max

I

D

T

A

= +25°C

-40V

50m

 @ V

GS

= -10V

-5.2A

79m

 @ V

GS

= -4.5V

-4.1A

Description

This MOSFET has been designed to minimize the on-state resistance

and yet maintain superior switching performance, making it ideal for

high efficiency power management applications.

Applications

 Motor

Control

 Backlighting
 DC-DC

Converters

Power Management Functions

Features and Benefits

 Low

On-Resistance

Fast Switching Speed

Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability


Mechanical Data

 Case:

SO-8

Case Material: Molded Plastic, “Green” Molding Compound. UL

Flammability Classification Rating 94V-0 (Note 1)

Moisture Sensitivity: Level 1 per J-STD-020

Terminals Connections: See diagram below

Terminals: Finish - Matte Tin annealed over Copper lead frame.

Solderable per MIL-STD-202, Method 208

Weight: 0.074 grams (approximate)

















Ordering Information

(Note 4)

Part Number

Qualification Case

Packaging

DMP4050SSD-13

Standard

SO-8

2500 / Tape & Reel

DMP4050SSDQ-13

Automotive

SO-8

2500 / Tape & Reel

Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http”//www.diodes.com/products/packages.html.

Marking Information










Equivalent Circuit

= Manufacturer’s Marking
P4050SD = Product Type Marking Code for DMP4050SSD-13
P4050DQ = Product Type Marking Code for DMP4050SSDQ-13
YYWW = Date Code Marking
YY = Year (ex: 09 = 2009)
WW = Week (01-53)

P4050SD

YY

WW

Top View

SO-8

Top View

D1

S1

G1

S2

G2

D1

D2

D2

D2

S2

G2

D1

S1

G1

P4050DQ

YY

WW

e3
