DMP3012LPS
Document number: DS35247 Rev. 2 - 2
5 of 6
www.diodes.com
April 2014
© Diodes Incorporated
DMP3012LPS

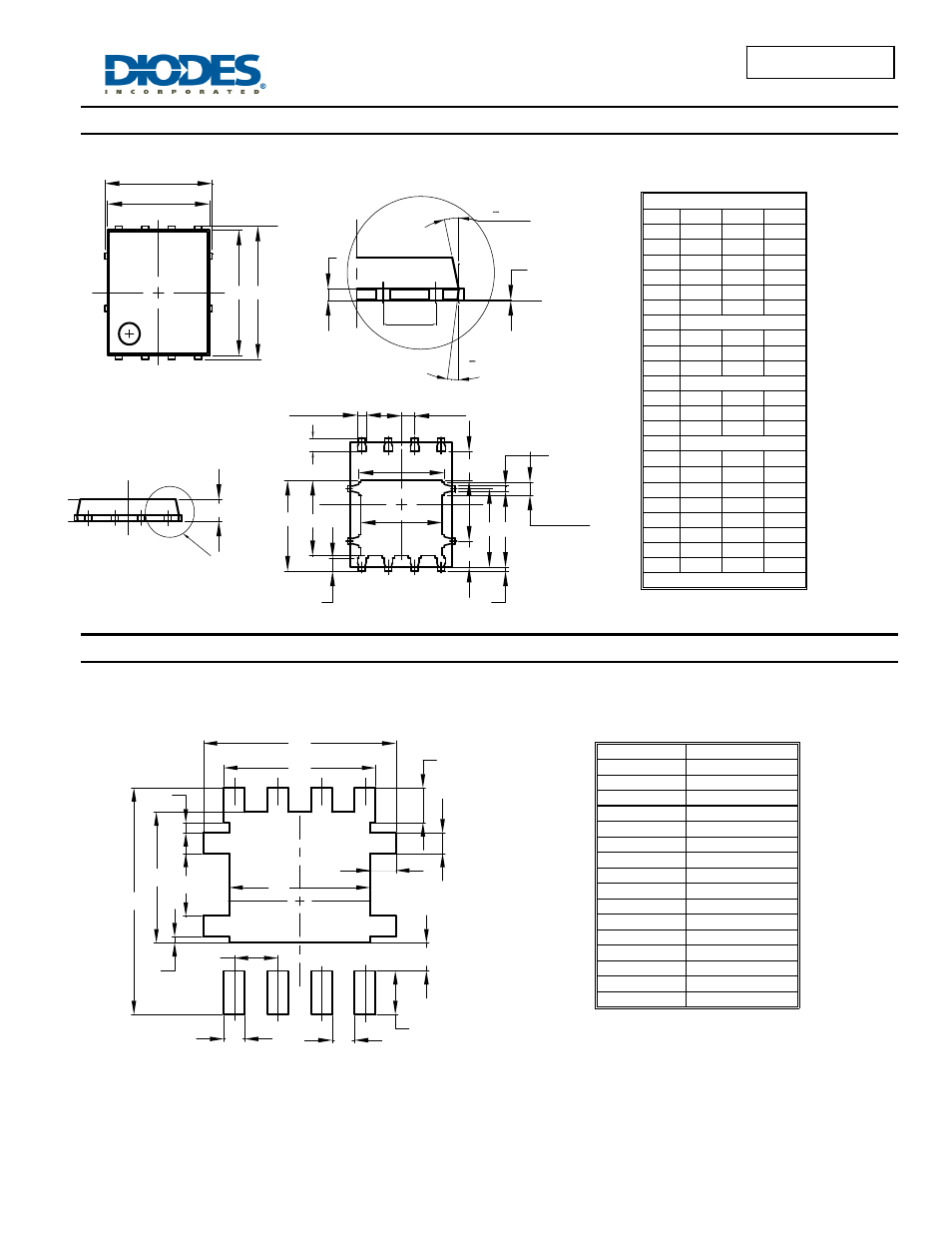

Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
POWERDI5060-8
Dim Min Max Typ
A 0.90 1.10 1.00
A1 0.00 0.05 −
b 0.33 0.51 0.41
b2 0.200 0.350 0.273
b3
0.40 0.80 0.60
c 0.230 0.330 0.277
D 5.15 BSC
D1 4.70 5.10 4.90
D2 3.70 4.10 3.90
D3 3.90 4.30 4.10
E 6.15 BSC
E1 5.60 6.00 5.80
E2 3.28 3.68 3.48
E3 3.99 4.39 4.19
e 1.27 BSC
G 0.51 0.71 0.61
K 0.51 − −
L 0.51 0.71 0.61
L1 0.10 0.20 0.175
M 3.235 4.035 3.635
M1 1.00 1.40 1.21
Θ 10° 12° 11°
Θ1 6° 8° 7°
All Dimensions in mm
Dimensions Value (in mm)
C 1.270
G 0.660
G1 0.820
X 0.610
X1 4.100
X2 0.755
X3 4.420
X4 5.610
Y 1.270
Y1 0.600
Y2 1.020
Y3 0.295
Y4 1.825
Y5 3.810
Y6 0.180
Y7 6.610
D1
E1
A
L
K
M
L1
D2
G
E2
Detail A
O (4X)
A1
c
e
D
E
1
Detail A
b (8X) e/2
1
O (4X)
M1
b2 (4X)
b3 (4X)
E3
D3
Y 7
X 3
Y 2
Y 5
X 1
G 1
X
C
Y ︵4 x ︶
G
X 2
Y 3
Y 4
Y 6
X 4
Y 1
