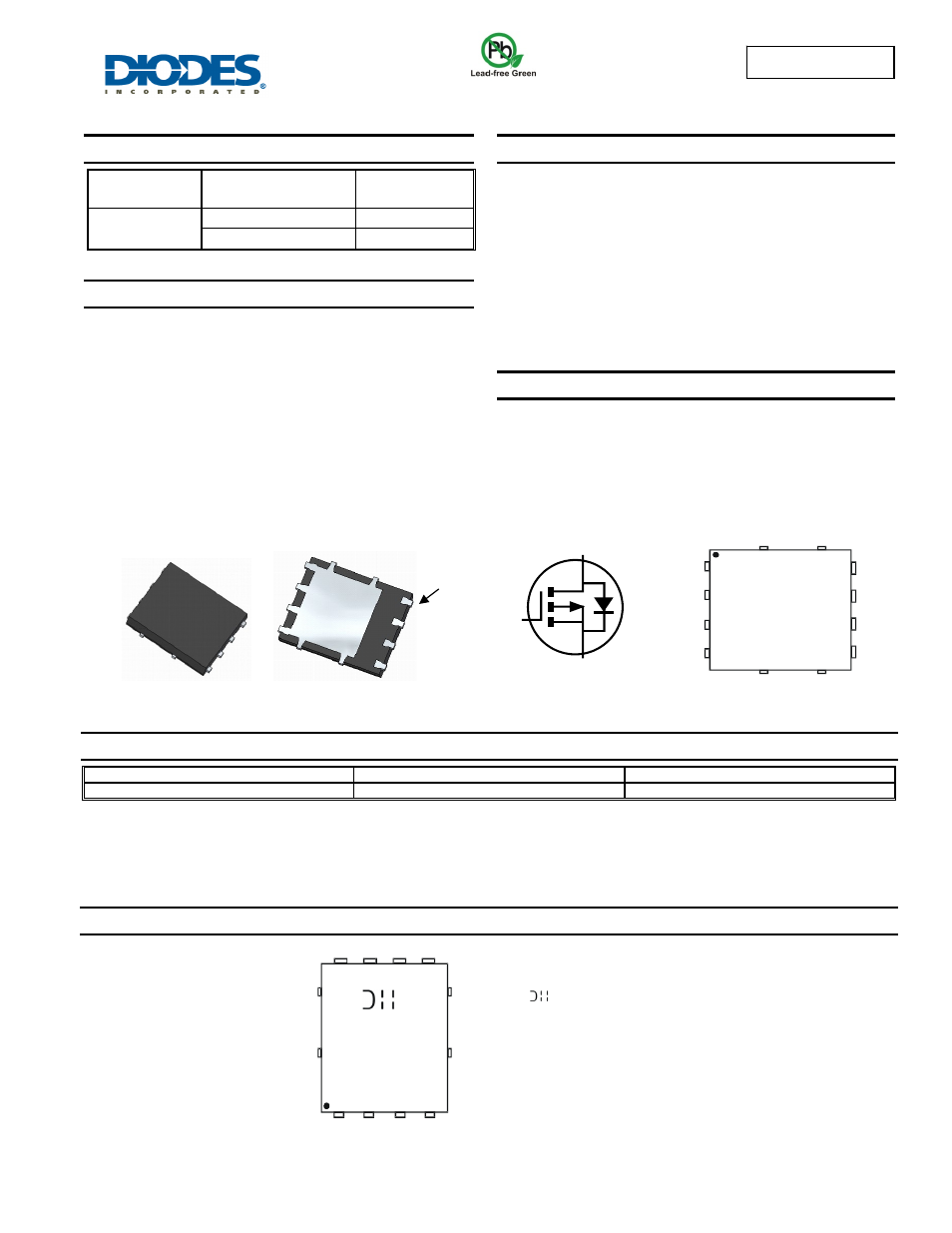

DMP3012LPS
P-CHANNEL ENHANCEMENT MODE MOSFET
POWERDI
®
5060-8
Product Summary
V
(BR)DSS
R
DS(ON)
I
D
T
C
= +25°C
-30V
9mΩ @ V
GS
= -10V
-45A
12mΩ @ V
GS
= -4.5V
-35A
Description and Applications
This new generation 30V P-Channel Enhancement Mode MOSFET
has been designed to minimize R
DS(ON)
and yet maintain superior
switching performance. This device is ideal for use in Notebook
battery power management and loadswitch.
•
Notebook Battery Power Management
• DC-DC
Converters
• Loadswitch
Features and Benefits
•
Thermally Efficient Package-Cooler Running Applications
• High
Conversion
Efficiency
• Low
RDS(ON)
– Minimizes On State Losses
•
Low Input Capacitance
•
Fast Switching Speed
•
<1.1mm Package Profile – Ideal for Thin Applications
•
ESD HBM Protected up to 1kV
•
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
POWERDI5060-8
•
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminal Connections: See Diagram Below
•
Weight: 0.097 grams (approximate)
Ordering Information
(Note 4)
Part Number
Case
Packaging
DMP3012LPS-13
POWERDI5060-8
2500 / Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant
2. S
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Top View
Pin Configuration
Internal Schematic
Bottom View
Top View
POWERDI5060-8
Pin1
D
S
G
= Manufacturer’s Marking
P3012LS = Product Type Marking Code
YYWW = Date Code Marking
YY = Year (ex: 13 = 2013)
WW = Week (01 - 53)
S
D
S
S
G
D
D
D
P3010LS
YY
WW
S
D
D
G
D
D
S
S
