DMG3401LSN
Document number: DS35502 Rev. 4 - 2
5 of 6
www.diodes.com
October 2012
© Diodes Incorporated
DMG3401LSN
NEW PROD
UC
T
0.00001 0.0001 0.001 0.01 0.1 1 10 100 1,000
t1, PULSE DURATION TIMES (sec)

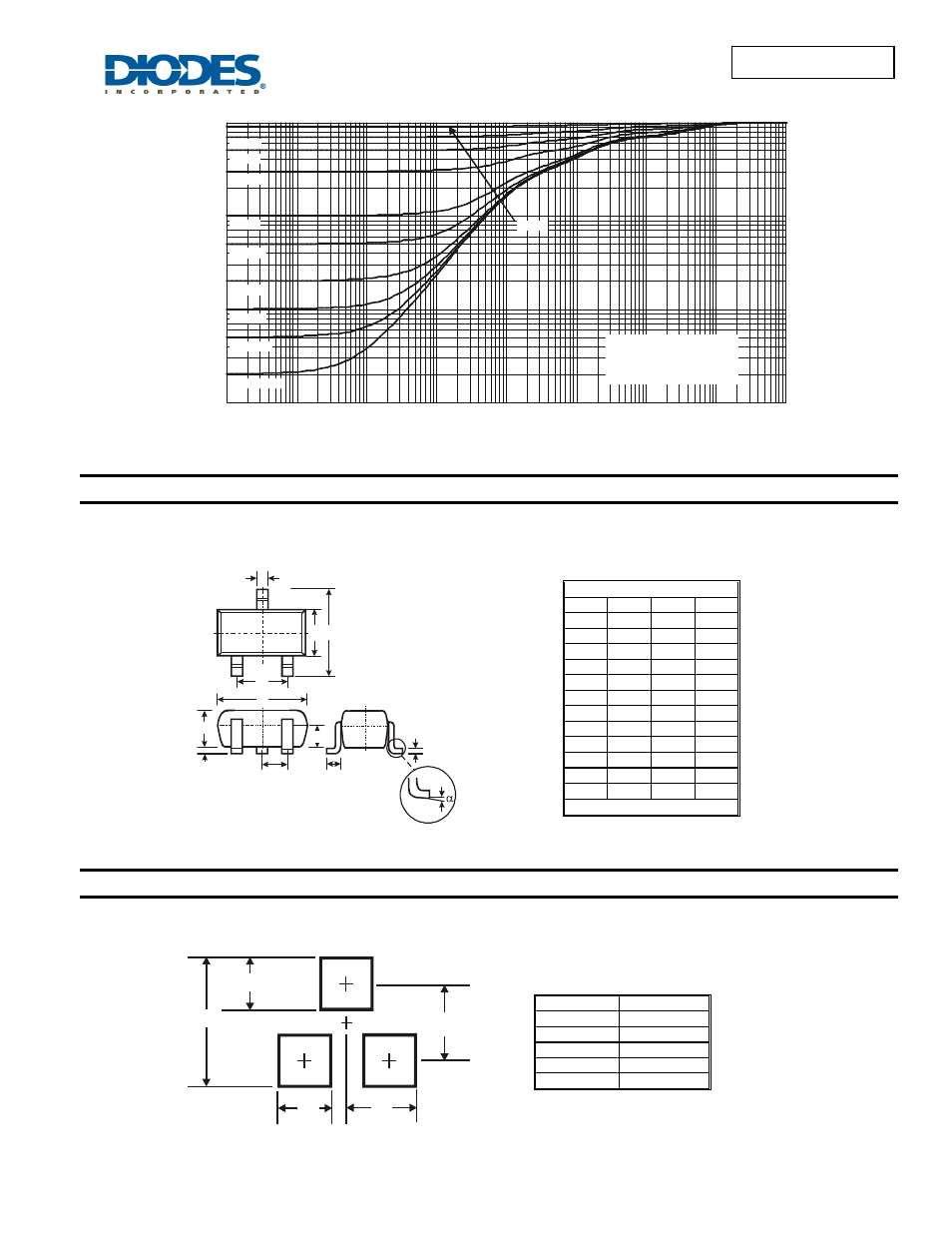

Figure 13 Transient Thermal Resistance
0.001
r(t
),
T
R
ANSI
E
N
T
T
H
E
R
MA
L
R
ES
IS
T
AN
C
E
0.01
0.1
1
R (t) = r(t) * R
R = 160°C/W
Duty Cycle, D = t1/ t2
θ θ
θ
JA JA
JA
D = 0.7
D = 0.9
D = 0.5
D = 0.3
D = 0.1
D = 0.05
D = 0.02
D = 0.01
D = 0.005
Single Pulse
Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
SC59
Dim Min Max Typ
A 0.35 0.50 0.38
B 1.50 1.70 1.60
C 2.70 3.00 2.80
D - - 0.95
G - - 1.90
H 2.90 3.10 3.00
J 0.013 0.10 0.05
K 1.00 1.30 1.10
L 0.35 0.55 0.40
M 0.10 0.20 0.15
N 0.70 0.80 0.75
α 0° 8° -
All Dimensions in mm
Dimensions Value (in mm)
Z 3.4
X 0.8
Y 1.0
C 2.4
E 1.35
X E
Y
C
Z
A
M
J
L D
B C
H
K
G
N
