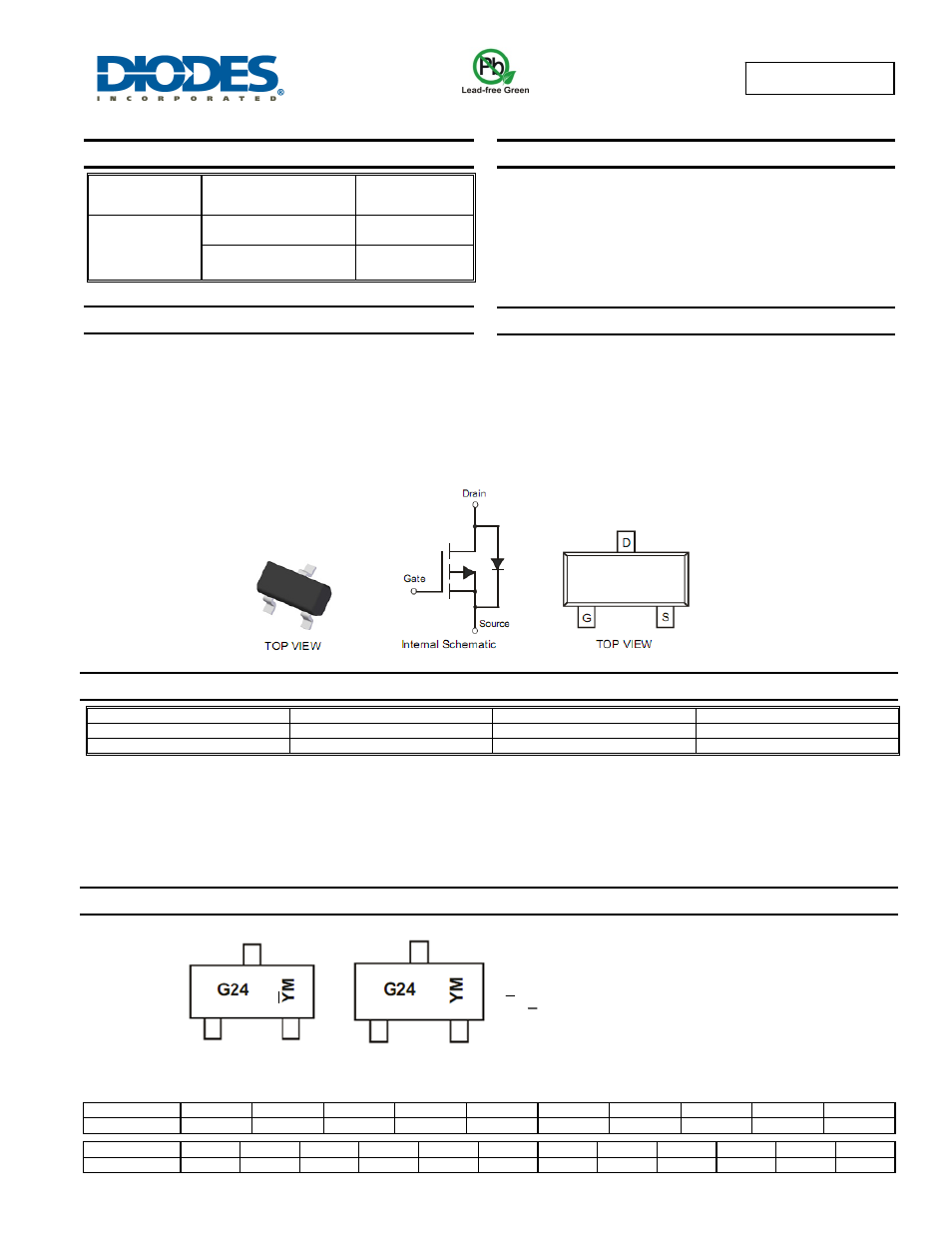

DMG2307L
Document number: DS35414 Rev. 3 – 2
1 of 6
www.diodes.com
November 2013
© Diodes Incorporated
DMG2307L
NEW PROD
UC
T
P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(ON)
max
I
D
max
T
A
= +25°C
-30V
90mΩ @ V
GS
= -10V -3.8A
134mΩ @ V
GS
= -4.5V -3.1A
Description and Applications
This MOSFET has been designed to minimize the on-state resistance
(R
DS(on)
) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.

General Purpose Interfacing Switch
 Power Management Functions
 Load Switch for Portable Devices
Features and Benefits
 Low On-Resistance
 Low Input Capacitance
 Fast Switching Speed
 Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
 Halogen and Antimony Free. “Green” Device (Note 3)
 Qualified to AEC-Q101 standards for High Reliability
Mechanical Data
 Case: SOT-23
 Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
 Moisture Sensitivity: Level 1 per J-STD-020
 Terminal Connections Indicator: See diagram
 Terminals: Finish  Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
 Weight: 0.08 grams (approximate)
Ordering Information
(Notes 4 & 5)
Part Number Compliance Case Packaging
DMG2307L-7 Standard SOT-23 3000Tape & Reel
DMG2307LQ-7 Automotive SOT-23 3000Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally
the same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Date Code Key
Year 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018
Code W X Y Z A B C D E F
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Code 1 2 3 4 5 6 7 8 9 O N D
Chengdu A/T Site
Shanghai A/T Site
G24 = Product Type Marking Code
YM = Date Code Marking for SAT (Shanghai Assembly/ Test site)
YM = Date Code Marking for CAT (Chengdu Assembly/ Test site)
Y or Y = Year (ex: A = 2013)
M = Month (ex: 9 = September)
