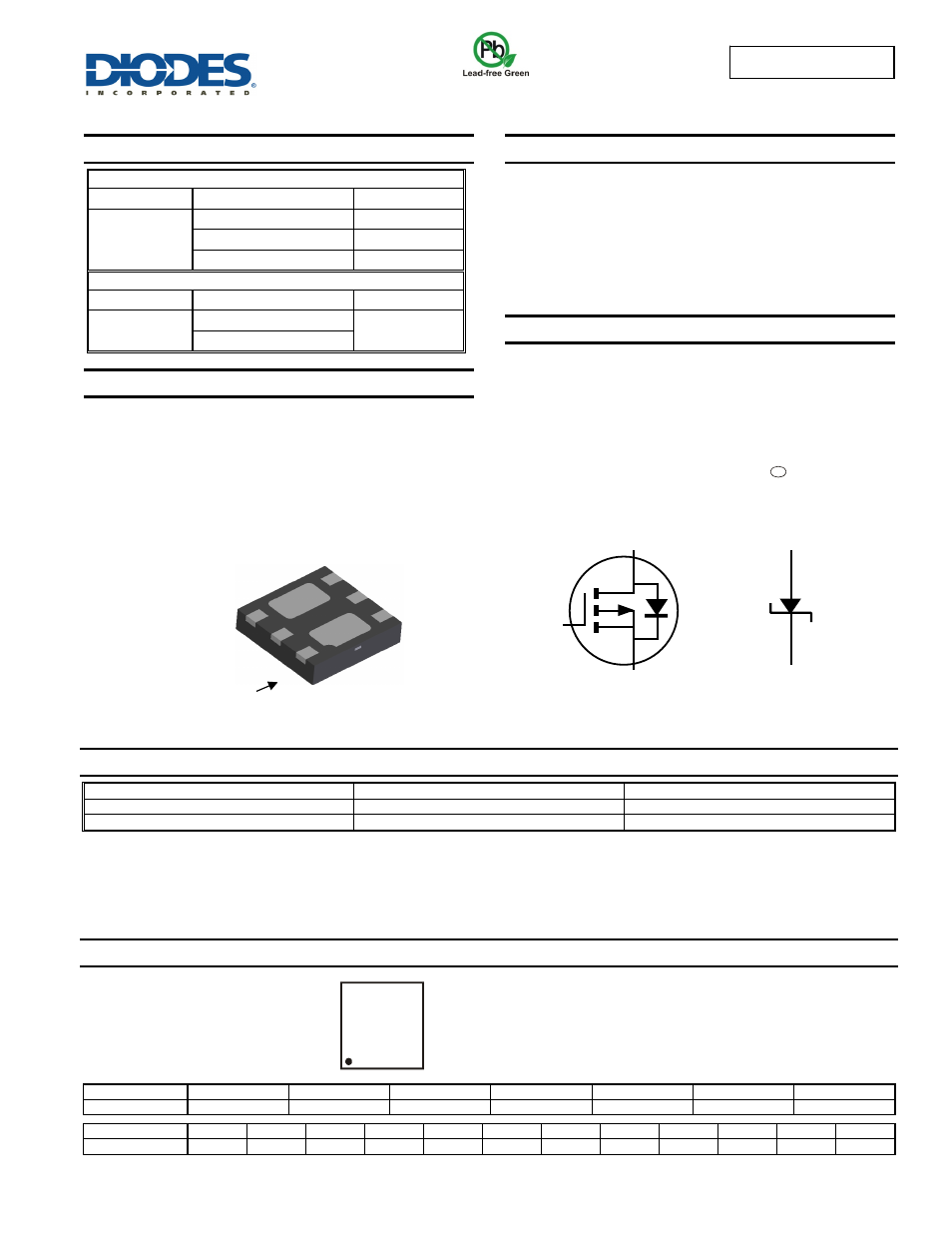

DMS2095LFDB
Document number: DS35955 Rev. 3 - 2
1 of 7
April 2014
© Diodes Incorporated
DMS2095LFDB
NEW PROD
UC
T
P-CHANNEL ENHANCEMENT MODE MOSFET
WITH INTEGRATED SCHOTTKY DIODE
Product Summary
MOSFET
V
(BR)DSS
R
DS(on) max
I
D
-20V
95m
Ω @ V
GS
= -4.5V
-3.4A
120m
Ω @ V
GS
= -2.5V
-3.0A
150m
Ω @ V
GS
= -1.8V
-2.7A
SCHOTTKY DIODE
V
R
V
F max
I
O
20V
400mV @ I
F
= 0.5A
1.0A
470mV @ I
F
= 1.0A
Features and Benefits
•
MOSFET with Low R
DS(ON)
– minimize conduction losses
•
Low Gate Threshold Voltage, -1.3V Max
•
Schottky Diode with Low Forward Voltage Drop
•
Low Profile, 0.5mm Max Height
•
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
•
Case: U-DFN2020-6 Type B
•
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminal Connections: See Diagram
•
Terminals: Finish – NiPdAu annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Weight: 0.0065 grams (approximate)
Description and Applications
This new generation MOSFET has been designed to minimize the on-
state resistance (R
DS(ON)
) and yet maintain superior switching
performance, making it ideal for high efficiency power management
applications.
•
Power management functions
Ordering Information
(Note 4)
Part Number
Case
Packaging
DMS2095LFDB-7
U-DFN2020-6 Type B
3,000/Tape & Reel
DMS2095LFDB-13
U-DFN2020-6 Type B
10,000/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Date Code Key
Year
2011
2012
2013
2014
2015
2016
2017
Code Y Z A B C D E
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code 1 2 3 4 5 6 7 8 9 O N D
U-DFN2020-6
Type B
Q1 P-MOSFET
Bottom View
MS2 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: V = 2008)
M = Month (ex: 9 = September)
e4
MS2
YM
A
NC
D
S
G
K
D
Pin1
K
D
S
G
D1
SCHOTTKY DIODE
A
K
