DMP2215L
Document number: DS31125 Rev. 7 - 2
4 of 5
July 2009
© Diodes Incorporated
DMP2215L
Ordering Information
(Note 6)
Part Number
Case
Packaging
DMP2215L
-7
SOT-23
3000/Tape & Reel
Notes:
6. For packaging details, go to our website at
Marking Information
Date Code Key
Year
2007
2008
2009
2010
2011
2012
Code U V W X
Y
Z
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code
1 2 3 4 5 6 7 8 9 O N D

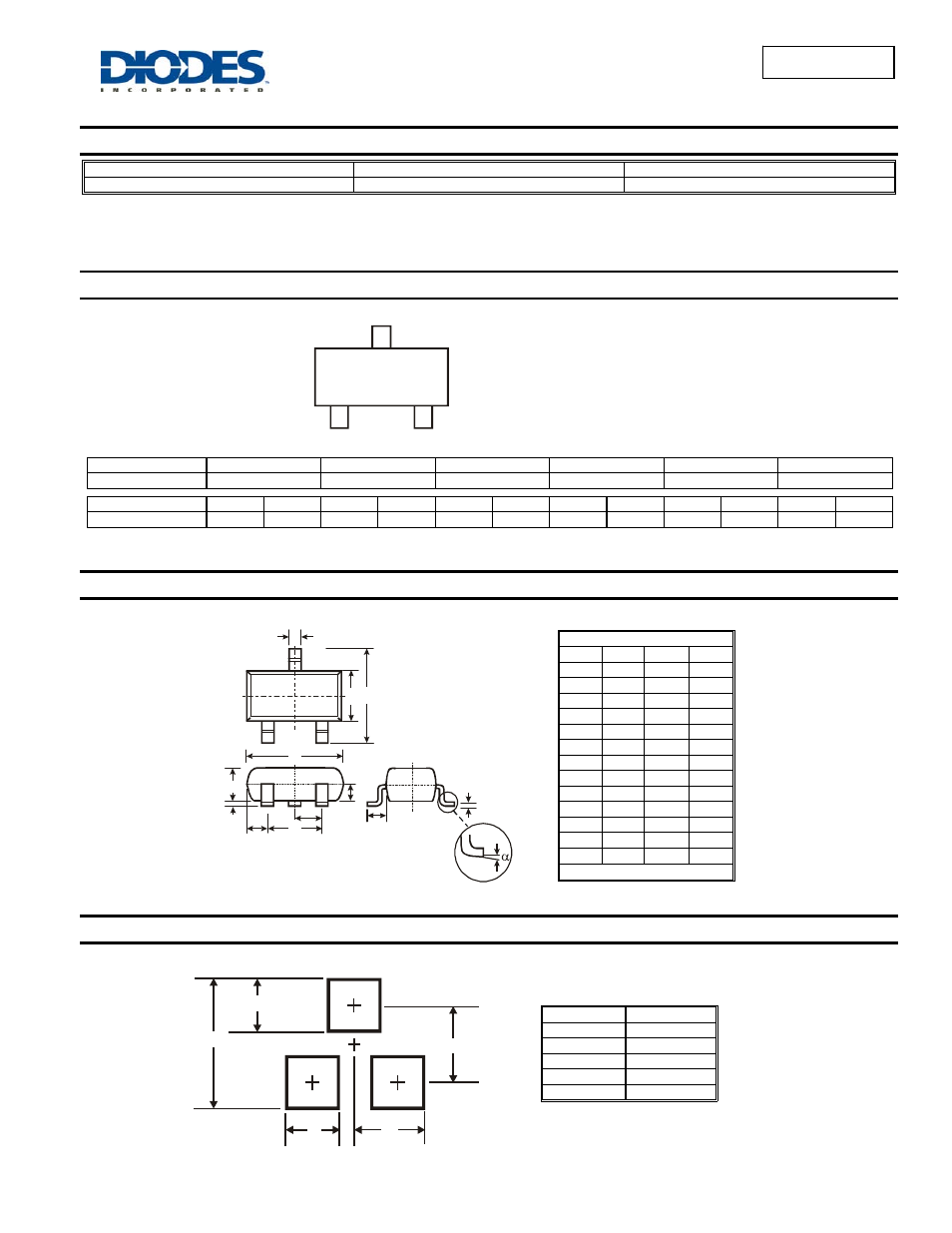

Package Outline Dimensions
Suggested Pad Layout
SOT-23
Dim Min Max Typ
A
0.37 0.51 0.40
B
1.20 1.40 1.30
C
2.30 2.50 2.40
D
0.89 1.03 0.915
F
0.45 0.60 0.535
G
1.78 2.05 1.83
H
2.80 3.00 2.90
J
0.013
0.10 0.05
K
0.903
1.10 1.00
K1
- -
0.400
L
0.45 0.61 0.55
M
0.085
0.18 0.11
α
0° 8° -
All Dimensions in mm
Dimensions
Value (in mm)
Z
2.9
X
0.8
Y
0.9
C
2.0
E
1.35
22P = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: U = 2007)
M = Month (ex: 9 = September)
22P
YM
A
M
J
L
D
F
B C
H
K
G
K1
X
E
Y
C
Z
