DMP2215L
Document number: DS31125 Rev. 7 - 2
1 of 5
July 2009
© Diodes Incorporated
DMP2215L
P-CHANNEL ENHANCEMENT MODE FIELD EFFECT TRANSISTOR
Features
•
Low On-Resistance:
R
DS(ON)
< 100m
Ω @ V
GS
= -4.5V, I
D
= -2.7A
R
DS(ON)
< 215m
Ω @ V
GS
= -2.5V, I
D
= -2.0A
•
Low Gate Threshold Voltage
•
Low Input Capacitance
•
Fast Switching Speed
•
Low Input/Output Leakage
•
Lead Free By Design/RoHS Compliant (Note 2)
•
"Green" Device (Note 4)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
SOT-23
•
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020D
• Terminals:
Finish
⎯ Matte Tin annealed over Copper
leadframe. Solderable per MIL-STD-202, Method 208
•
Terminal Connections: See Diagram
•
Marking Information: See Page 4
•
Ordering Information: See Page 4
•
Weight: 0.008 grams (approximate)
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Characteristic Symbol
Value
Units
Drain-Source Voltage
V
DSS
-20 V
Gate-Source Voltage
V
GSS
±12 V
Drain Current (Note 1)
Steady
State
T
A
= 25
°C
T
A
= 70
°C
I
D
-2.7
-2
A
Pulsed Drain Current (Note 3)
I
DM
8 A
Thermal Characteristics
Characteristic Symbol
Value
Units
Total Power Dissipation (Note 1)
P
D
1.08 W
Thermal Resistance, Junction to Ambient @T
A
= 25°C (Note 1)
R
θJA
115 °C/W
Operating and Storage Temperature Range
T
J,
T
STG
-55 to +150
°C
Notes:
1. Device mounted on FR-4 PCB. t
≤5 sec.
2. No purposefully added lead.
3. Pulse
width
≤10μS, Duty Cycle ≤1%.
4.
Diodes Inc.'s "Green" policy can be found on our website at

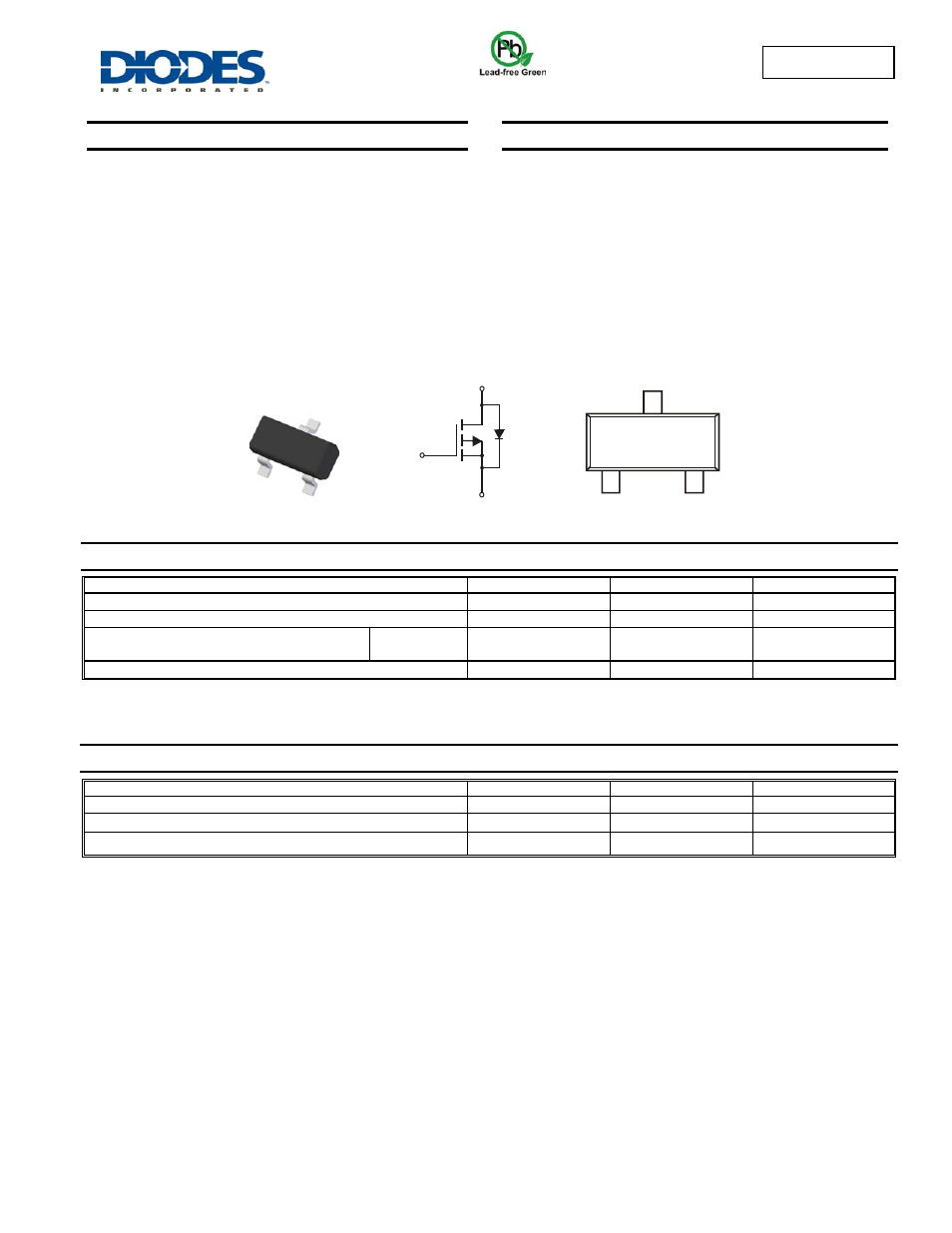

SOT-23
TOP VIEW
TOP VIEW
Source
EQUIVALENT CIRCUIT
Gate
Drain
D
G
S
