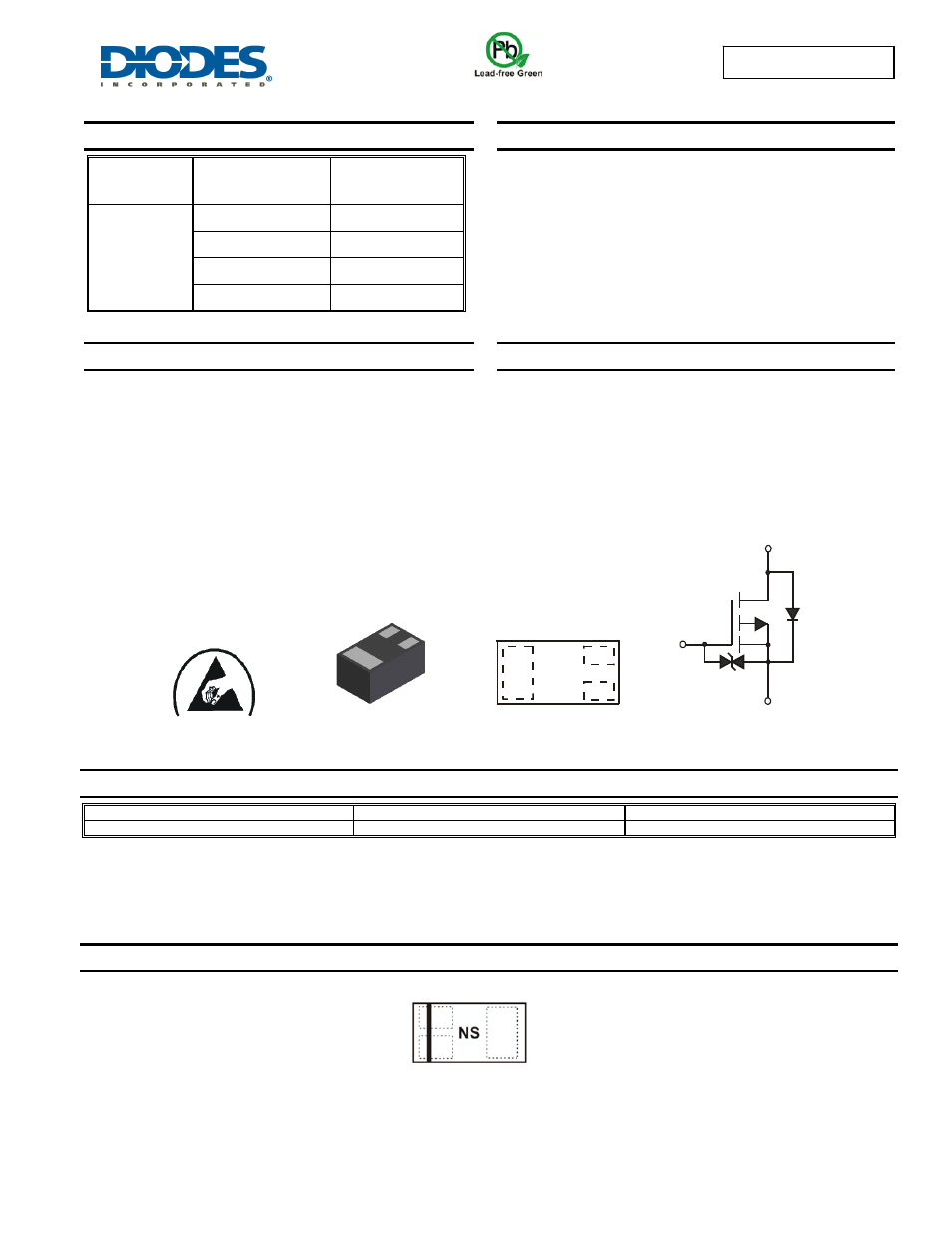

DMP21D5UFB4

Document number: DS35284 Rev. 5 - 2

1 of 6

www.diodes.com

May 2012

© Diodes Incorporated

DMP21D5UFB4

ADVAN

CE I

N

F

O

RM

ATI

O

N

P-CHANNEL ENHANCEMENT MODE MOSFET

Product Summary

V

(BR)DSS

R

DS(on) max

I

D

T

A

= 25°C

-20V

1.0

Ω @ V

GS

= -4.5V

-700mA

1.5

Ω @ V

GS

= -2.5V

-600mA

2.0

Ω @ V

GS

= -1.8V

-500mA

3.0

Ω @ V

GS

= -1.5V

-380mA

Description and Applications

This new generation MOSFET has been designed to minimize the on-
state resistance (R

DS(on)

) and yet maintain superior switching

performance, making it ideal for high efficiency power management
applications.

• DC-DC

Converters

Power management functions

Features and Benefits

• Low

On-Resistance

Very Low Gate Threshold Voltage V

GS(TH)

, 1.0V max

Low Input Capacitance

Fast Switching Speed

Ultra-Small Surfaced Mount Package

Ultra-low package profile, 0.4mm maximum package height

ESD Protected Gate

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

Mechanical Data

• Case:

X2-DFN1006-3

Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminal Connections: See Diagram

Terminals: Finish – NiPdAu over Copper leadframe. Solderable
per MIL-STD-202, Method 208

Weight: 0.001 grams (approximate)


















Ordering Information

(Note 4)

Part Number

Case

Packaging

DMP21D5UFB4-7B

X2-DFN1006-3

10,000/Tape & Reel

Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.



3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com.



Marking Information











X2-DFN1006-3

Top View

Internal Schematic

Bottom View

Equivalent Circuit

NS = Product Type Marking Code

Top View

Bar Denotes Gate

and Source Side

Source

Gate
Protection
Diode

Gate

Drain

D

S

G

ESD PROTECTED
