DMP21D0UT

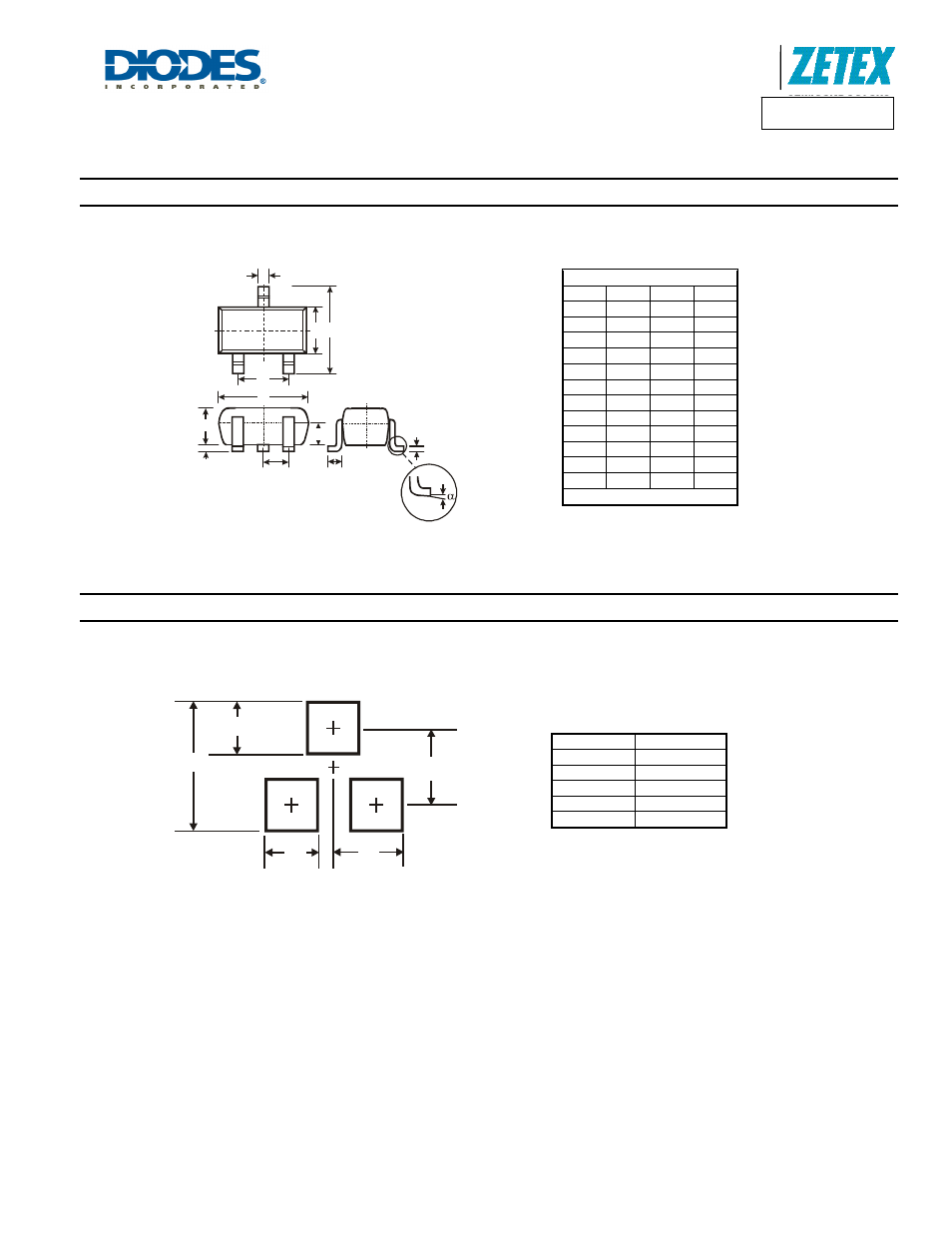

Package Outline Dimensions
Suggested Pad Layout
SOT523
Dim Min Max Typ
A 0.15 0.30 0.22
B 0.75 0.85 0.80
C 1.45 1.75 1.60
D ⎯ ⎯ 0.50
G 0.90 1.10 1.00
H 1.50 1.70 1.60
J 0.00 0.10 0.05
K 0.60 0.80 0.75
L 0.10 0.30 0.22
M 0.10 0.20 0.12
N 0.45 0.65 0.50
α 0° 8° ⎯
All Dimensions in mm
Dimensions Value (in mm)
Z 1.8
X 0.4
Y 0.51
C 1.3
E 0.7
A
M
J
L D
B C
H
K
G
N
X E
Y
C
Z
