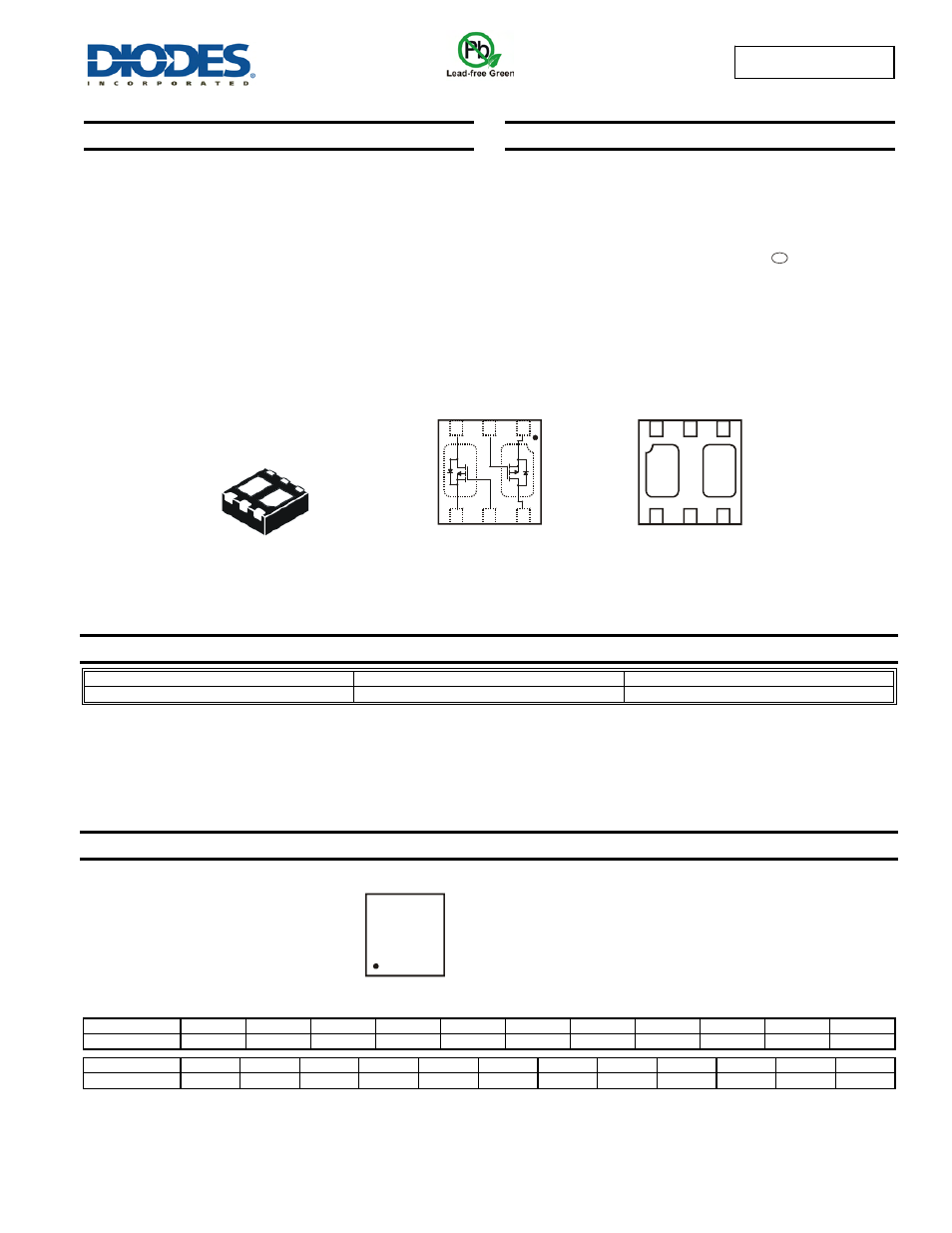

DMP2160UFDB
Document number: DS31643 Rev. 6 - 2
1 of 6
November 2012
© Diodes Incorporated
DMP2160UFDB
DUAL P-CHANNEL ENHANCEMENT MODE MOSFET
Features
•
Low On-Resistance
• 70mΩ @V
GS
= -4.5V
• 85mΩ @V
GS
= -2.5V
• 86mΩ (typ) @V
GS
= -1.8V
•
Low Gate Threshold Voltage, -0.9V Max
•
Fast Switching Speed
•
Low Input/Output Leakage
•
Low Profile, 0.5mm Max Height
•
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
•
Case: U-DFN2020-6 Type B
•
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminal Connections: See Diagram
•
Terminals: Finish – NiPdAu annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
e4
•
Weight: 0.0065 grams (approximate)
Ordering Information
(Note 4)
Part Number
Case
Packaging
DMP2160UFDB-7
U-DFN2020-6 Type B
3000/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. Se information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Date Code Key
Year
2008
2009
2010
2011
2012
2013
2014
2015 2016 2017 2018
Code V W X Y Z A B C D E F
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code 1 2 3 4 5 6 7 8 9 O N D
U-DFN2020-6
Type B
Bottom View
Top View
Internal Schematic
Bottom View
Pin Configuration
4
5
6
S
G
D
1
2
3
S
G
D
P2 = Marking Code
YM = Date Marking
Y = Year (ex: V = 2008)
M = Month (ex: 9 = September)
Dot denotes Pin 1
P2
YM
S
G
D
S
G
D
D
D
