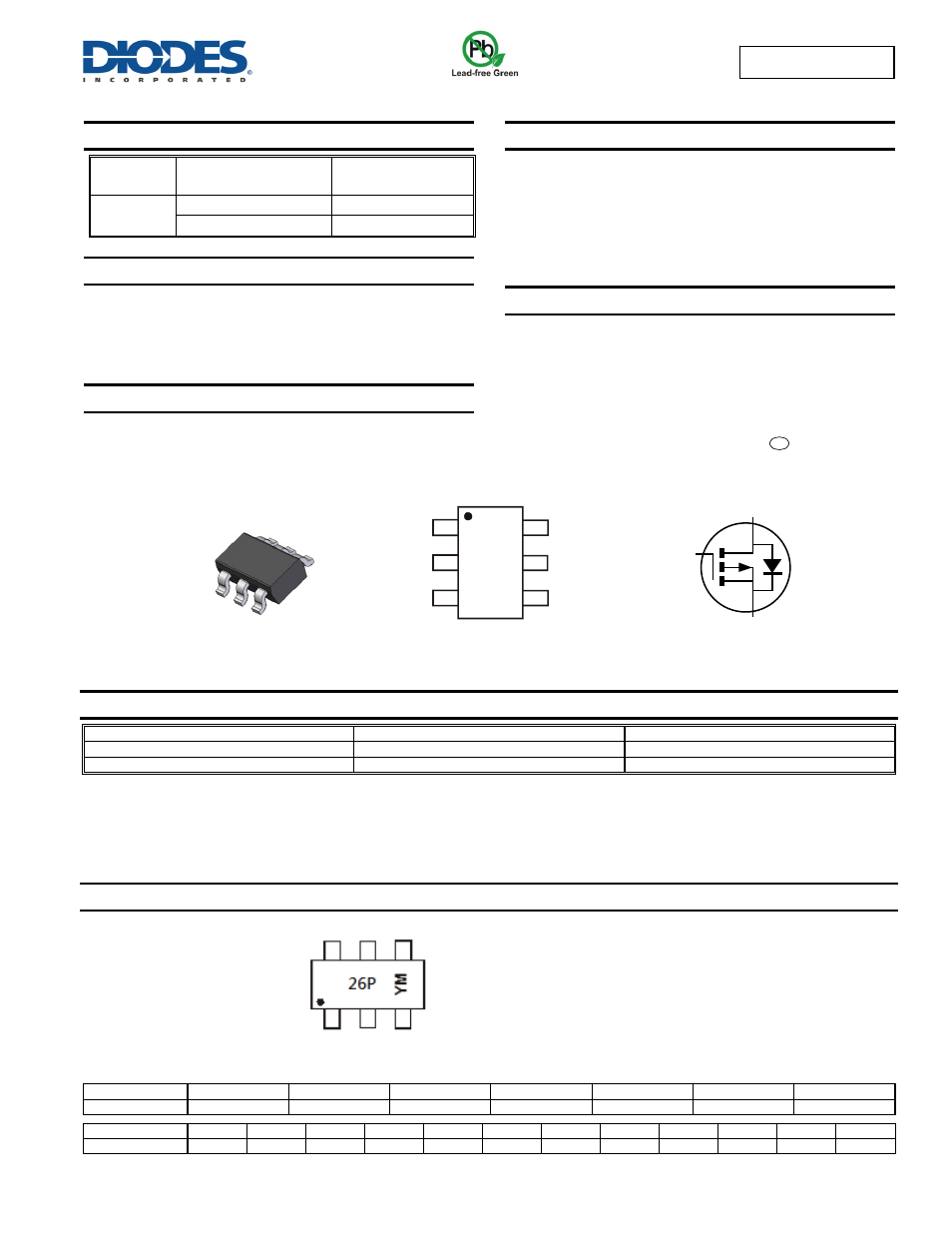

DMP2066LVT

Document number: DS36578 Rev. 3 - 2

1 of 6

www.diodes.com

March 2014

© Diodes Incorporated

DMP2066LVT

NEW PROD

UC

T

P-CHANNEL ENHANCEMENT MODE MOSFET

Product Summary

V

(BR)DSS

R

DS(ON)

max

I

D

max

T

A

= +25°C

-20V

45mΩ @ V

GS

= -4.5V

-4.5A

65mΩ @ V

GS

= -2.5V

-3.8A

Description

This new generation MOSFET has been designed to minimize the on-
state resistance (R

DS(on)

) and yet maintain superior switching

performance, making it ideal for high efficiency power management
applications.

Applications

General Purpose Interfacing Switch

Power Management Functions

Features and Benefits

• Low

On-Resistance

Low Gate Threshold Voltage

Low Input Capacitance

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

Mechanical Data

• Case:

TSOT26

Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminal Connections: See Diagram

• Terminals:

Finish

⎯ Matte Tin annealed over Copper leadframe.

Solderable per MIL-STD-202, Method 208

Weight: 0.015 grams (approximate)













Ordering Information

(Note 4)

Part Number

Case

Packaging

DMP2066LVT-7

TSOT26

3,000/Tape & Reel

DMP2066LVT-13

TSOT26

10,000/Tape & Reel

Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds4. For packaging details, go to our website at http://www.diodes.com.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information








Date Code Key

Year

2011

2012

2013

2014

2015

2016

2017

Code Y Z A B C D E

Month

Jan

Feb

Mar

Apr

May

Jun

Jul

Aug

Sep

Oct

Nov

Dec

Code 1 2 3 4 5 6 7 8 9 O N D

TSOT26

Top View

Top View

Pin-Out

Equivalent Circuit

1

2

3

6

5

4

D

D

D

D

G

S

D

S

G

26P = Product Type Marking Code
YM = Date Code Marking for SAT (Shanghai Assembly/ Test site)
Y or Y̅ = Year (ex: A = 2013)
M = Month (ex: 9 = September)

Shanghai A/T Site

e3
