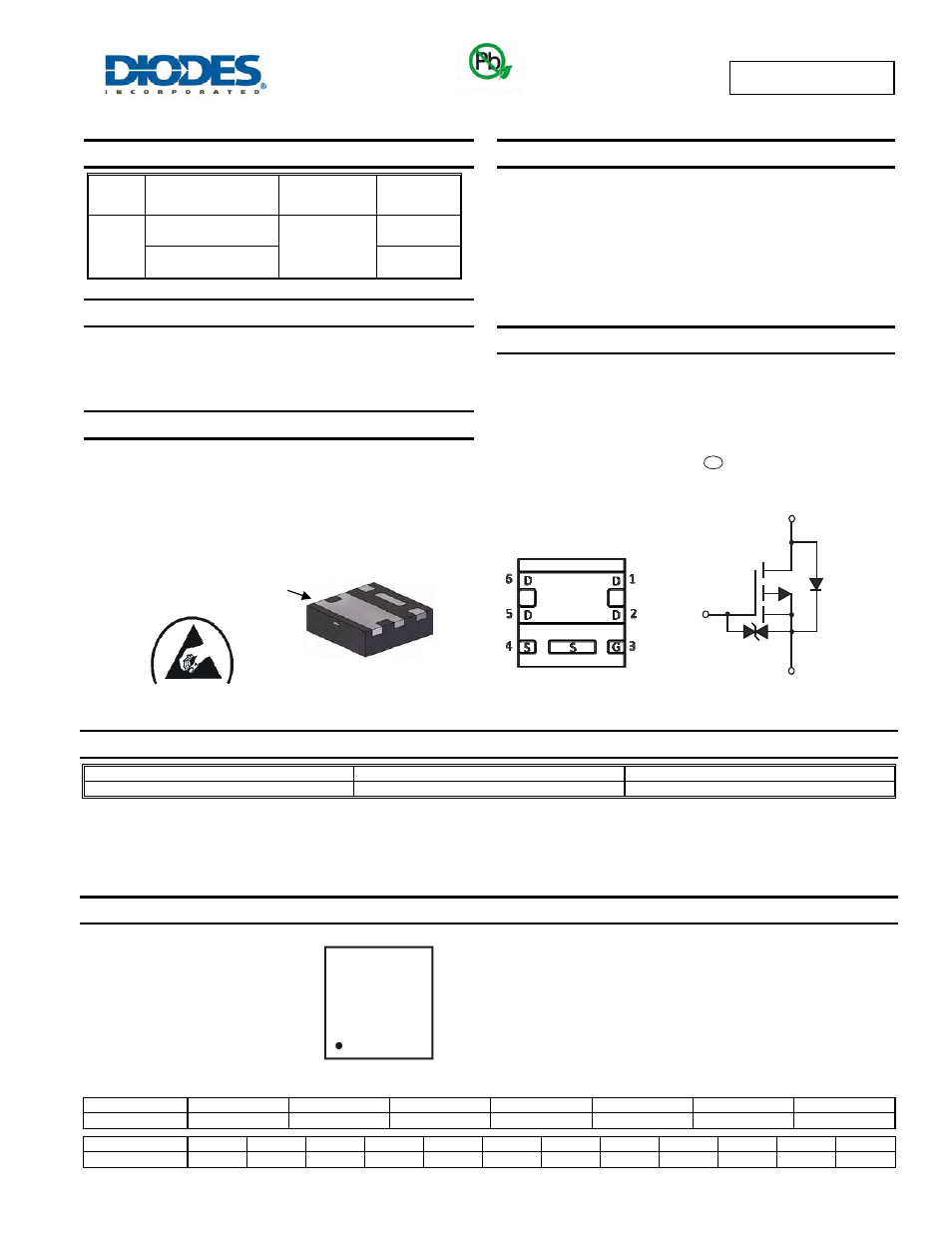

DMP2039UFDE
P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(ON) max
Package
I
D
T
A
= +25°C
-25V
27m
Ω @ V
GS
= -4.5V
U-DFN2020-6
Type E
-6.7A
40m
Ω @ V
GS
= -1.8V
-5.4A
Description
This new generation MOSFET has been designed to minimize the on-
state resistance (R
DS(on)
) and yet maintain superior switching
performance, making it ideal for high efficiency power management
applications.
Applications
•
Load Switching
•
Battery Management Application
•
Power Management Functions
Features
• Low
R
DS(ON)
– Ensures on State Losses are Minimized
•
0.6mm Profile – Ideal for Low Profile Applications
•
PCB Footprint of 4mm
2
•
ESD Protected Gate
•
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
•
Case: U-DFN2020-6 Type E
•
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminal Connections: See Diagram
•
Terminals: Finish – NiPdAu over Copper leadframe. Solderable
per MIL-STD-202, Method 208
•
Weight: 0.001 grams (approximate)
Ordering Information
(Note 4)
Part Number
Case
Packaging
DMP2039UFDE-7
U-DFN2020-6 Type E
3,000/Tape & Reel
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. S
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Date Code Key
Year
2011
2012
2013
2014
2015
2016
2017
Code Y
Z
A
B
C D
E
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code 1 2 3 4 5 6 7 8 9 O N D
e3
Green
U-DFN2020-6
Type E
Bottom View
Equivalent Circuit
ESD PROTECTED
Bottom View
Internal Schematic
Pin1
Source
Gate
Protection
Diode
Gate
Drain
P9
YM
P9 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: Y = 2011)
M = Month (ex: 9 = September)
