DMP2004VK
Document number: DS30916 Rev. 6 - 2
4 of 5
www.diodes.com
August 2012
© Diodes Incorporated
DMP2004VK
T , AMBIENT TEMPERATURE (°C)

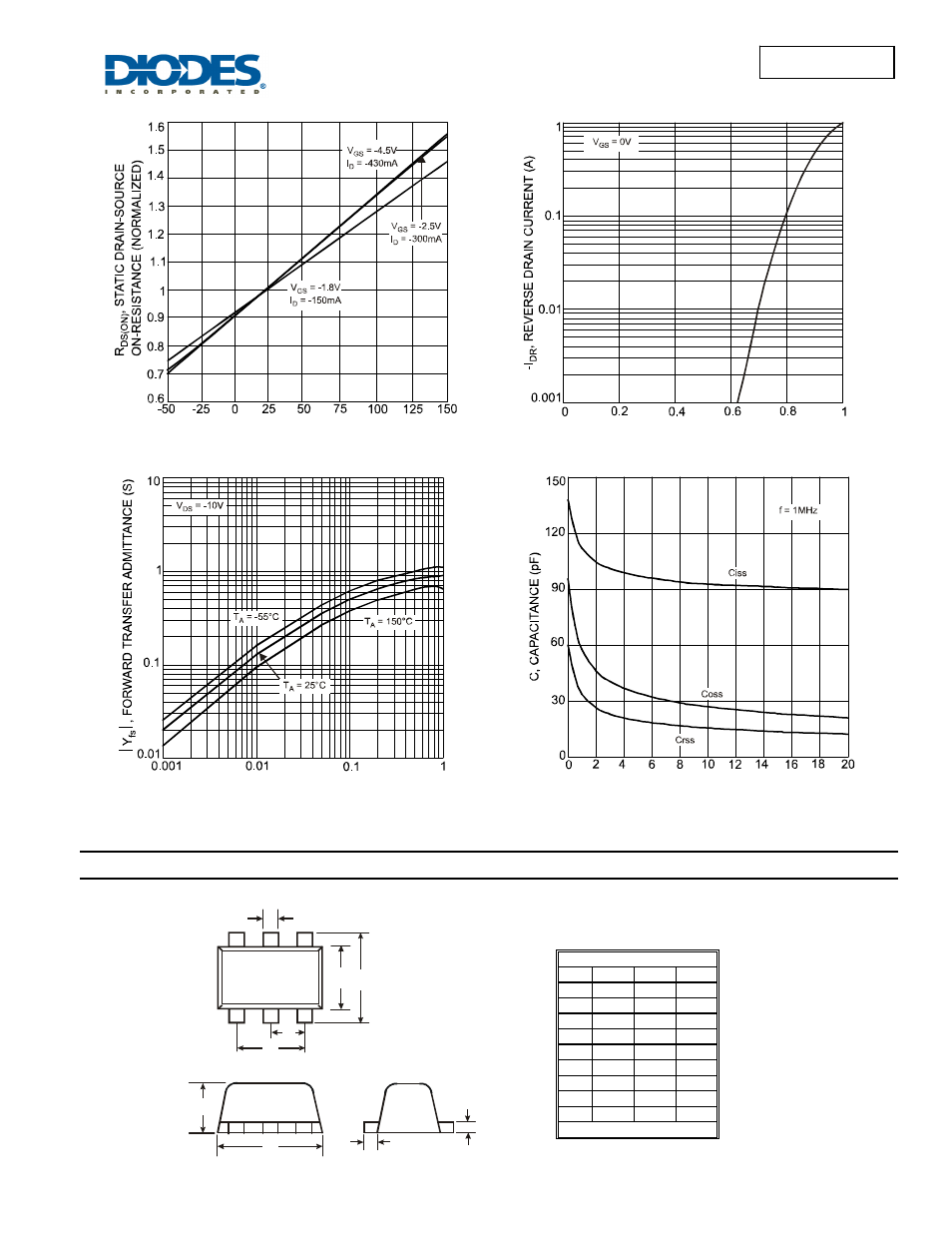

Fig. 7 Static Drain-Source On-State Resistance
vs. Ambient Temperature
A
-V , SOURCE-DRAIN VOLTAGE (V)
Fig. 8 Reverse Drain Current vs. Source-Drain Voltage
DS
-I , DRAIN-CURRENT (A)
Fig. 9 Forward Transfer Admittance vs. Drain-Current
D -V , DRAIN-SOURCE VOLTAGE (V)
Fig. 10 Typical Capacitance
DS
Package Outline Dimensions
SOT563
Dim Min Max Typ
A 0.15 0.30 0.20
B 1.10 1.25 1.20
C 1.55 1.70 1.60
D - - 0.50
G 0.90 1.10 1.00
H 1.50 1.70 1.60
K 0.55 0.60 0.60
L 0.10 0.30 0.20
M 0.10 0.18 0.11
All Dimensions in mm
A
M
L
B C
H
K
G
D
