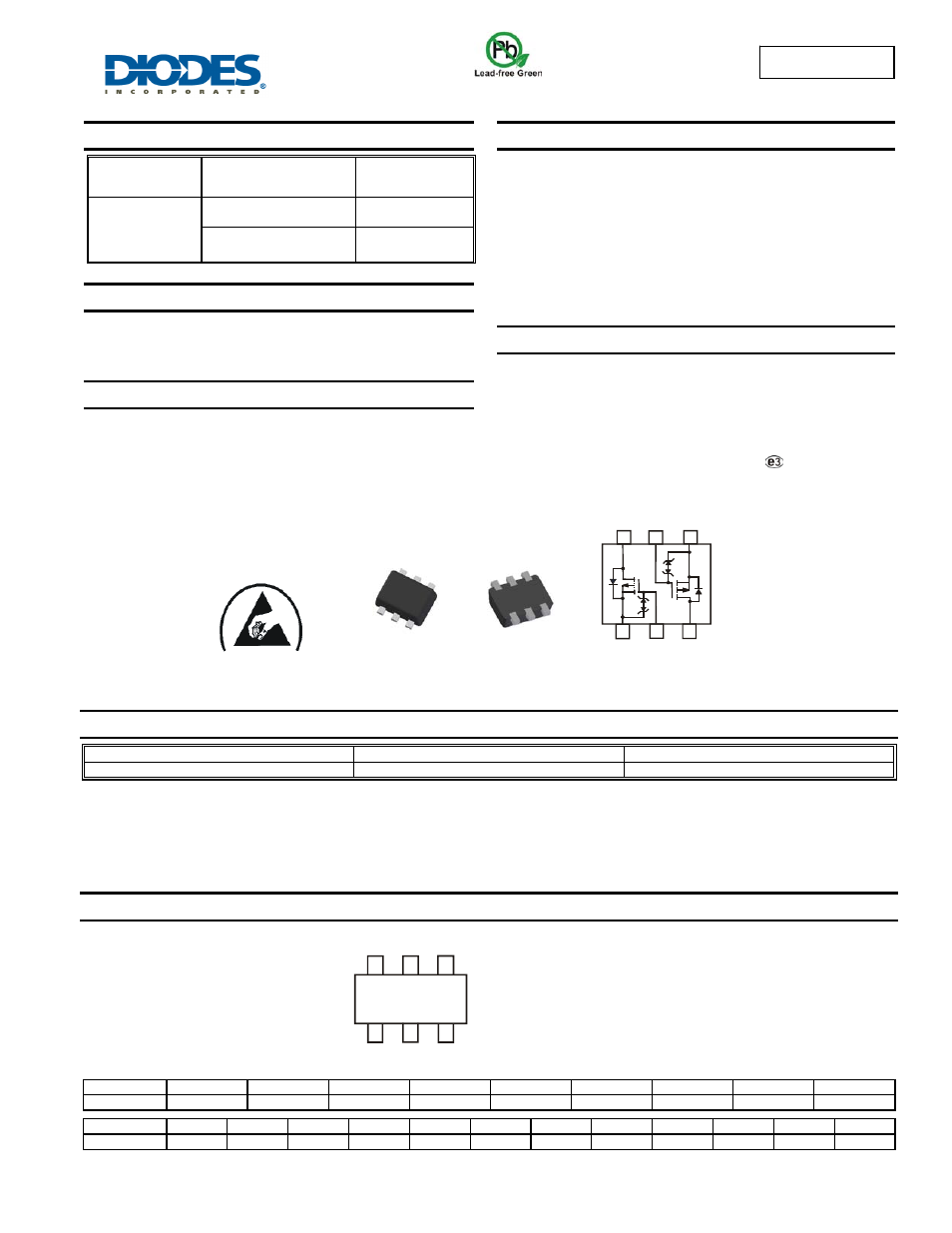

DMP2004VK

DUAL P-CHANNEL ENHANCEMENT MODE MOSFET

Product Summary

V

(BR)DSS

R

DS(ON)

max

I

D

max

T

A

= 25°C

-20V

0.9

Ω @ V

GS

= -4.5V

-530A

1.4

Ω @ V

GS

= -2.5V

-440A

Description

This MOSFET has been designed to minimize the on-state resistance
(R

DS(on)

) and yet maintain superior switching performance, making it

ideal for high efficiency power management applications.

Applications

• Battery

Charging

Power Management Functions

• DC-DC

Converters

• Portable

Power

Adaptors

Features

Dual P-Channel MOSFET

• Low

On-Resistance

Very Low Gate Threshold Voltage V

GS(TH)

< 1V

Low Input Capacitance

Fast Switching Speed

Low Input/Output Leakage

ESD Protected Gate

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Mechanical Data

• Case:

SOT563

Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminal Connections: See Diagram

Terminals: Finish - Matte Tin annealed over Copper lead frame.
Solderable per MIL-STD-202, Method 208

Weight: 0.006 grams (approximate)















Ordering Information

(Note 4)

Part Number

Case

Packaging

DMP2004VK-7

SOT563

3000/Tape & Reel

Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.



3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com.



Marking Information











Date Code Key

Year

2007

2008

2009

2010

2011

2012

2013

2014

2015

Code

U V W X Y Z A B C

Month

Jan

Feb

Mar

Apr

May

Jun

Jul

Aug

Sep

Oct

Nov

Dec

Code 1 2 3 4 5 6 7 8 9 O N D


SOT563

Top View

Top View

Internal Schematic

Bottom View

S

1

D

1

D

2

S

2

G

1

G

2

PAB = Marking Code
YM = Date Code Marking
Y = Year (ex: U = 2007)
M = Month (ex: 9 = September)

PAB

YM

ESD PROTECTED
