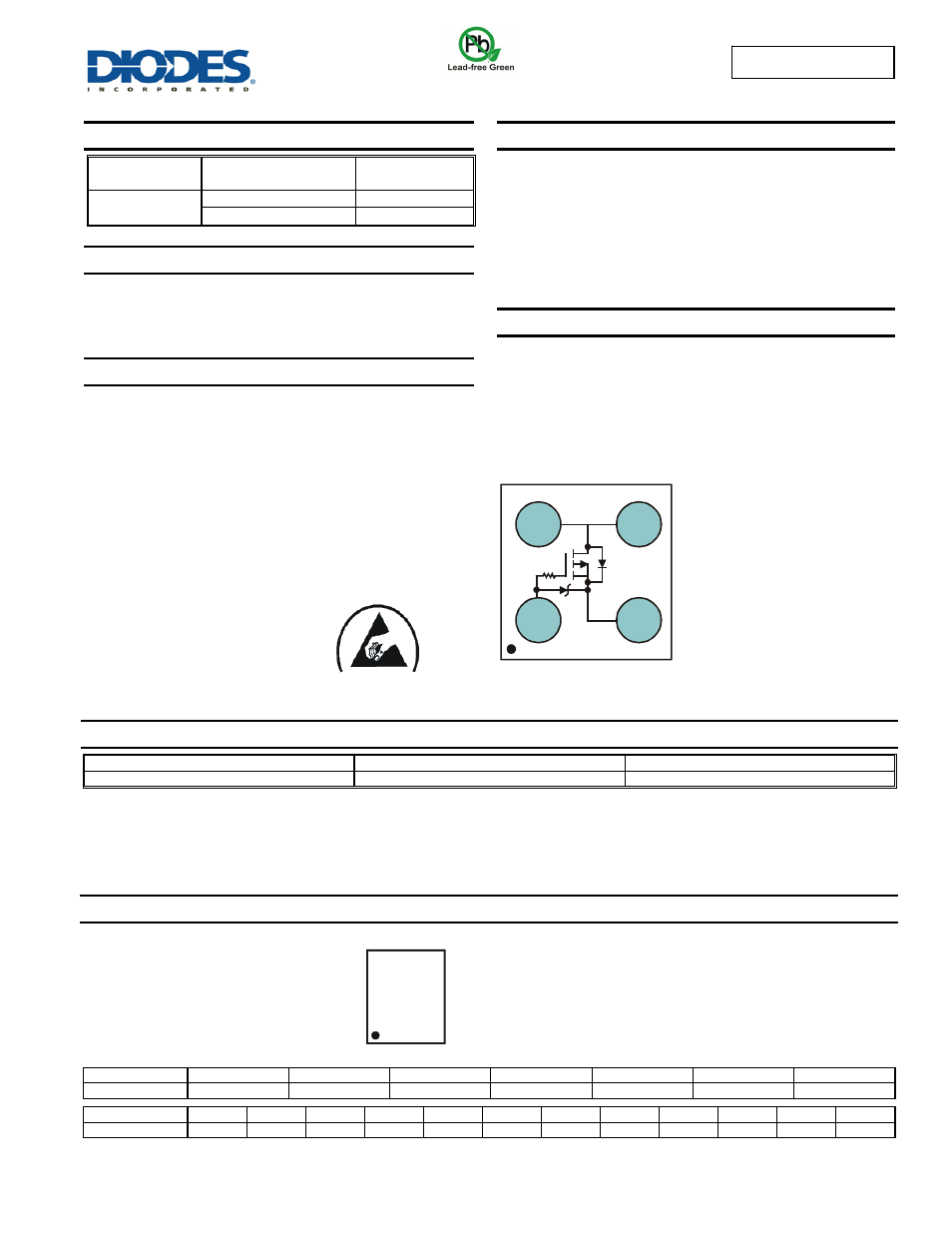

Diodes DMP1080UCB4 User Manual
Product summary, Description, Applications
DMP1080UCB4
Document number: DS35827 Rev. 4 - 2
1 of 6
December 2012
© Diodes Incorporated
DMP1080UCB4
P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(ON)
I
D
T
A
= +25°C
-12V
80m
Ω @ V
GS
= -4.5V
-3.3A
93m
Ω @ V
GS
= -2.5V
-3.0A
Description
This new generation MOSFET has been designed to minimize the on-
state resistance (R
DS(on)
) and yet maintain superior switching
performance, making it ideal for high efficiency power management
applications.
Applications
• Battery
Management
• Load
Switch
• Battery
Protection
Features
• Low
Q
g
& Q
gd
• Small
Footprint
•
Low Profile 0.62mm height
•
ESD Protected Up To -3KV
•
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
U-WLB1010-4
•
Terminal Connections: See Diagram Below
•
Weight: 0.0018 grams (approximate)
Ordering Information
(Note 4)
Part Number
Case
Packaging
DMP1080UCB4-7
U-WLB1010-4
3000/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. Se information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Date Code Key
Year
2011
2012
2013
2014
2015
2016
2017
Code Y
Z
A
B
C D
E
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code 1 2 3 4 5 6 7 8 9 O N D
U-WLB1010-4
Top View
Equivalent Circuit
ESD PROTECTED TO 3kV
S
D
G
D
BW = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: X = 2010)
M = Month (ex: 9 = September)
BW
YM
