DMN62D0LFB
Document number: DS35409 Rev. 2 - 2
5 of 6
www.diodes.com
October 2011
© Diodes Incorporated
DMN62D0LFB
ADVAN
CE I
N
F
O
RM
ATI
O
N
NEW PROD
UC
T

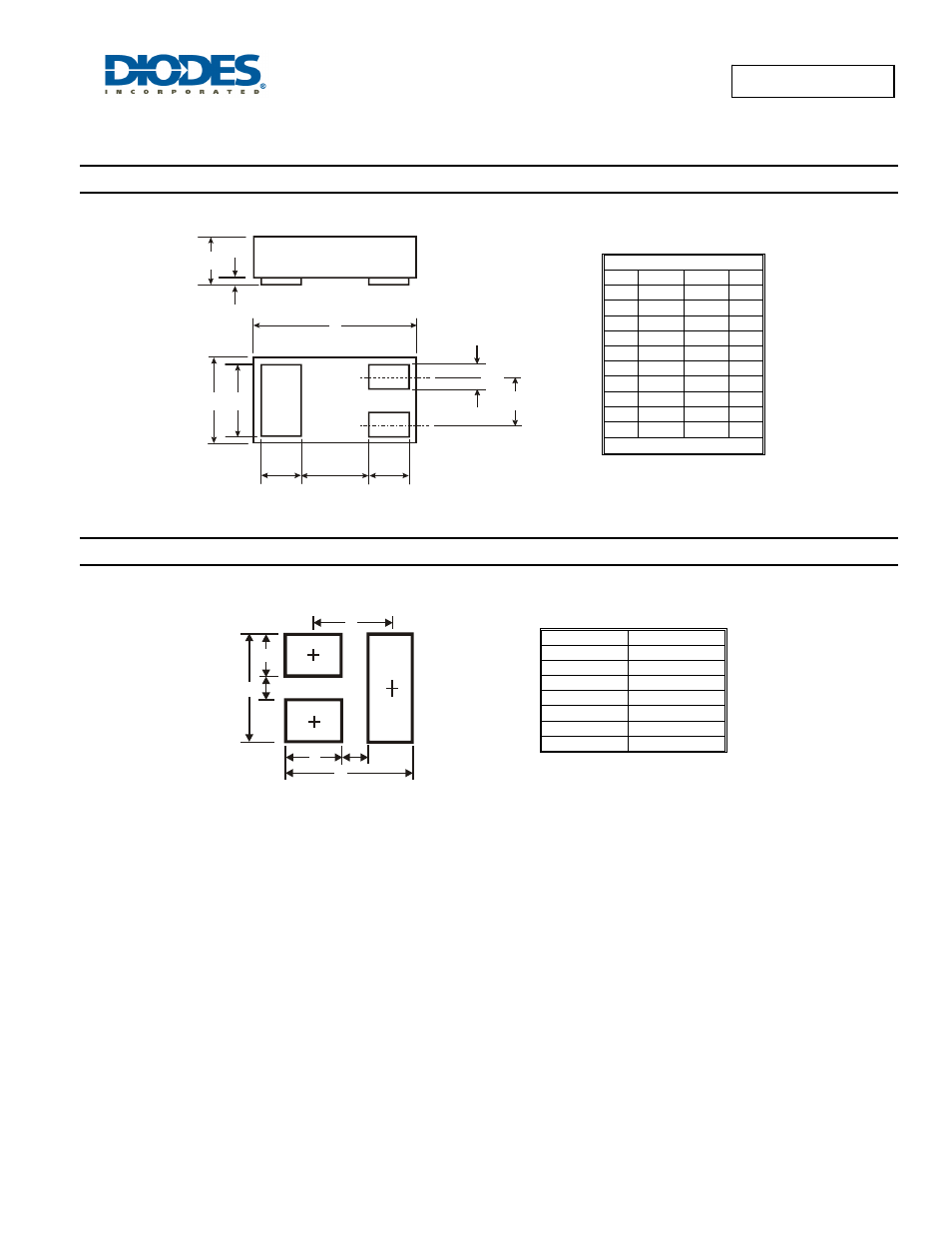

Package Outline Dimensions
Suggested Pad Layout
X1-DFN1006-3
Dim Min Max Typ
A 0.47 0.53 0.50
A1 0 0.05 0.03
b1 0.10 0.20 0.15
b2 0.45 0.55 0.50
D 0.95 1.075 1.00
E 0.55 0.675 0.60
e ⎯ ⎯ 0.35
L1 0.20 0.30 0.25
L2 0.20 0.30 0.25
L3 ⎯ ⎯ 0.40
All Dimensions in mm
Dimensions Value (in mm)
Z 1.1
G1 0.3
G2 0.2
X 0.7
X1 0.25
Y 0.4
C 0.7
L2
A1
E b2
L1 L3
D
e
b1
A
Y
C
G1
G2 X
X
1
Z
