Diodes DMN4030LK3 User Manual
Ds g, Product summary, Description and applications
DMN4030LK3
Document Number DS32008 Rev. 3 - 2
1 of 8
March 2010
© Diodes Incorporated
A Product Line of
Diodes Incorporated
DMN4030LK3
40V N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(on)
I
D
T
A
= 25
°C
40V
30m
Ω @ V
GS
= 10V
13.7A
50m
Ω @ V
GS
= 4.5V
10.6A
Description and Applications
This MOSFET has been designed to minimize the on-state resistance
(R
DS(on)
) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
•
Backlighting
•
DC-DC Converters
•
Power management functions
Features and Benefits
•
Low on-resistance
•
Fast switching speed
•
“Green” component and RoHS compliant (Note 1)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
TO252-3L
•
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0 (Note 1)
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals Connections: See Diagram
•
Terminals: Matte Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Weight: 0.33 grams (approximate)
Ordering Information
(Note 1)
Product
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
DMN4030LK3-13 N4030L
13
16
2,500
Notes:
1. Diodes, Inc. defines “Green” products as those which are RoHS compliant and contain no halogens or antimony compounds; further information about
Diodes Inc.’s “Green” Policy can be found on our website. For packaging details, go to our website.

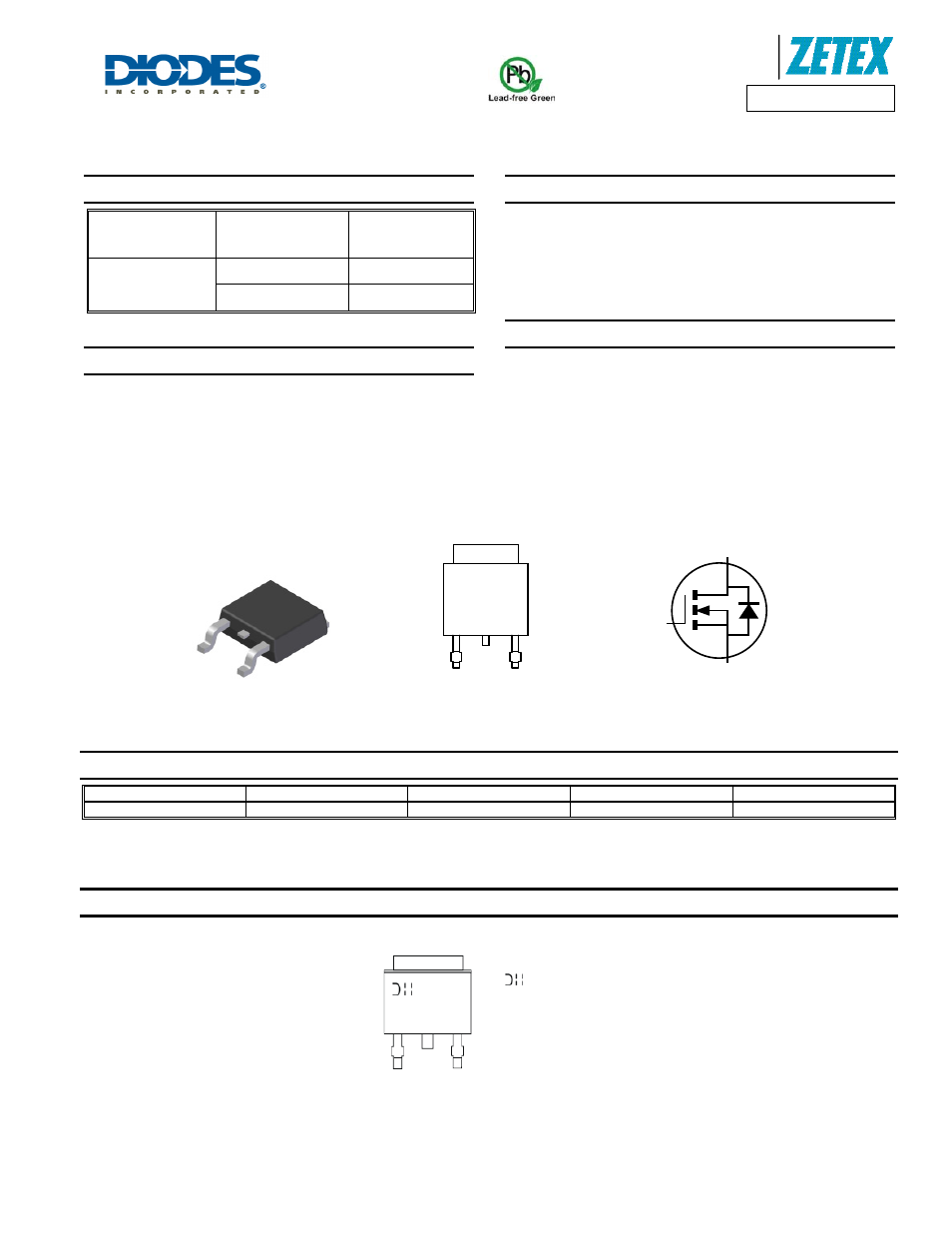

Marking Information
TOP VIEW
PIN OUT -TOP VIEW
D
S
G
Equivalent Circuit
G
S
D
D
= Manufacturer’s Marking
N4030L = Product Type Marking Code
YYWW = Date Code Marking
YY = Year (ex: 09 = 2009)
WW = Week (01 - 53)
TO252-3L
YYWW
N4030L
