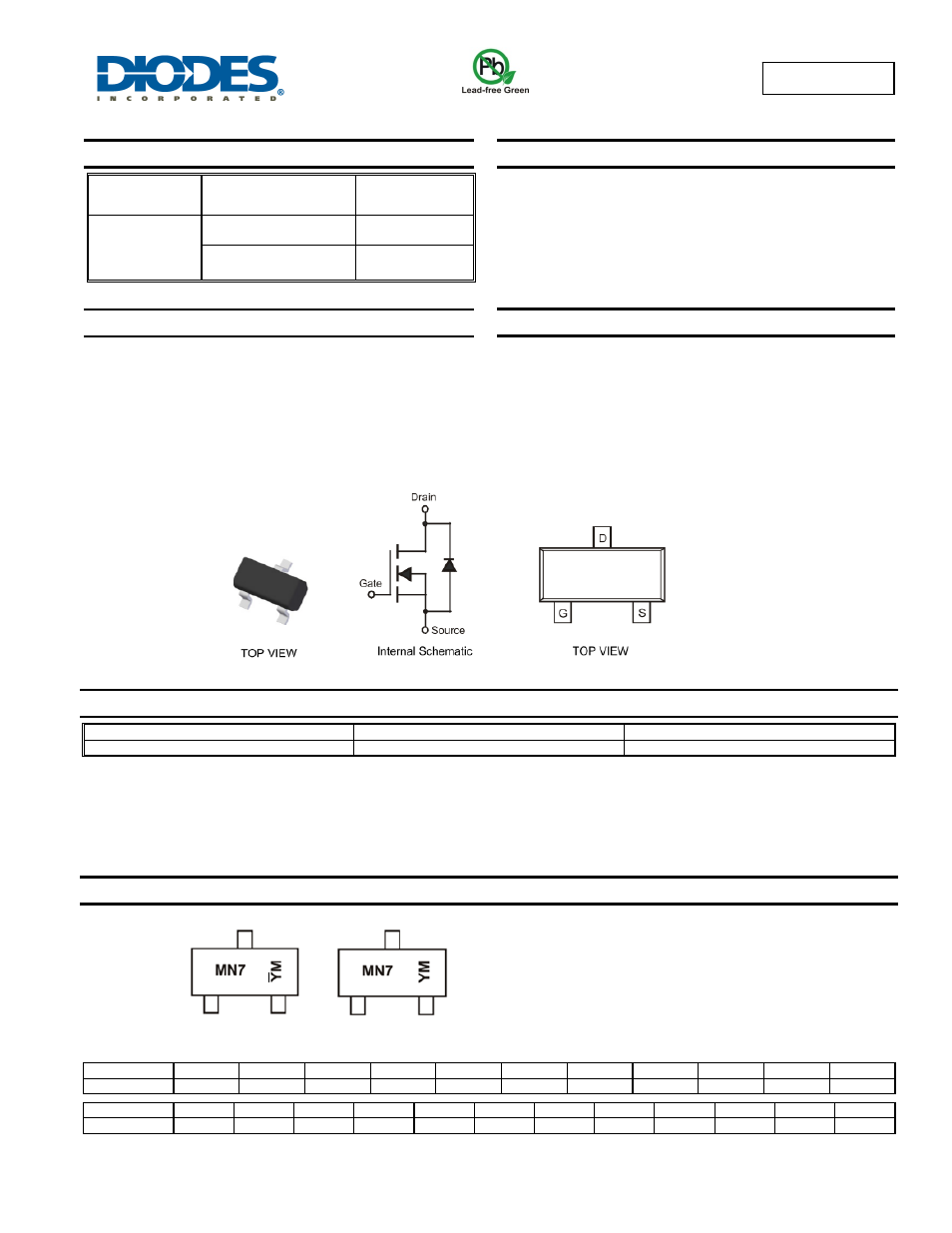

background image

DMN3110S

Document number: DS31561 Rev. 3 - 2

1 of 6

www.diodes.com

October 2013

© Diodes Incorporated

DMN3110S

NEW PROD

UC

T


N-CHANNEL ENHANCEMENT MODE MOSFET

Product Summary

V

(BR)DSS

R

DS(ON)

max

I

D

max

T

A

= +25°C

30V

73mΩ @ V

GS

= 10V

3.3A

110mΩ @ V

GS

= 4.5V

2.7A

Description and Applications

This MOSFET has been designed to minimize the on-state resistance
(R

DS(on)

) and yet maintain superior switching performance, making it

ideal for high efficiency power management applications.

General Purpose Interfacing Switch

Power Management Functions

 Boost

Application

 Analog

Switch

Features and Benefits

 Low

On-Resistance

Low Input Capacitance

Fast Switching Speed

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 standards for High Reliability


Mechanical Data

 Case:

SOT-23

Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

 Terminal

Connections

Indicator: See diagram

 Terminals:

Finish

 NiPdAu over Copper leadframe. Solderable

per MIL-STD-202, Method 208

Weight: 0.027 grams (approximate)

Ordering Information

(Note 4)

Part Number

Case

Packaging

DMN3110S-7

SOT-23

3000/Tape & Reel

Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html



Marking Information











Date Code Key

Year

2007

2008

2009

2010

2011

2012

2013

2014

2015 2016 2017

Code U V W X Y Z A B C D E

Month

Jan

Feb

Mar

Apr

May

Jun

Jul

Aug

Sep

Oct

Nov

Dec

Code 1 2 3 4 5 6 7 8 9 O N D



MN7 = Product Type Marking Code
YM = Date Code Marking for SAT (Shanghai Assembly/ Test site)
Y̅M = Date Code Marking for CAT (Chengdu Assembly/ Test site)
Y or Y̅ = Year (ex: A = 2013)
M = Month (ex: 9 = September)

Chengdu A/T Site

Shanghai A/T Site
