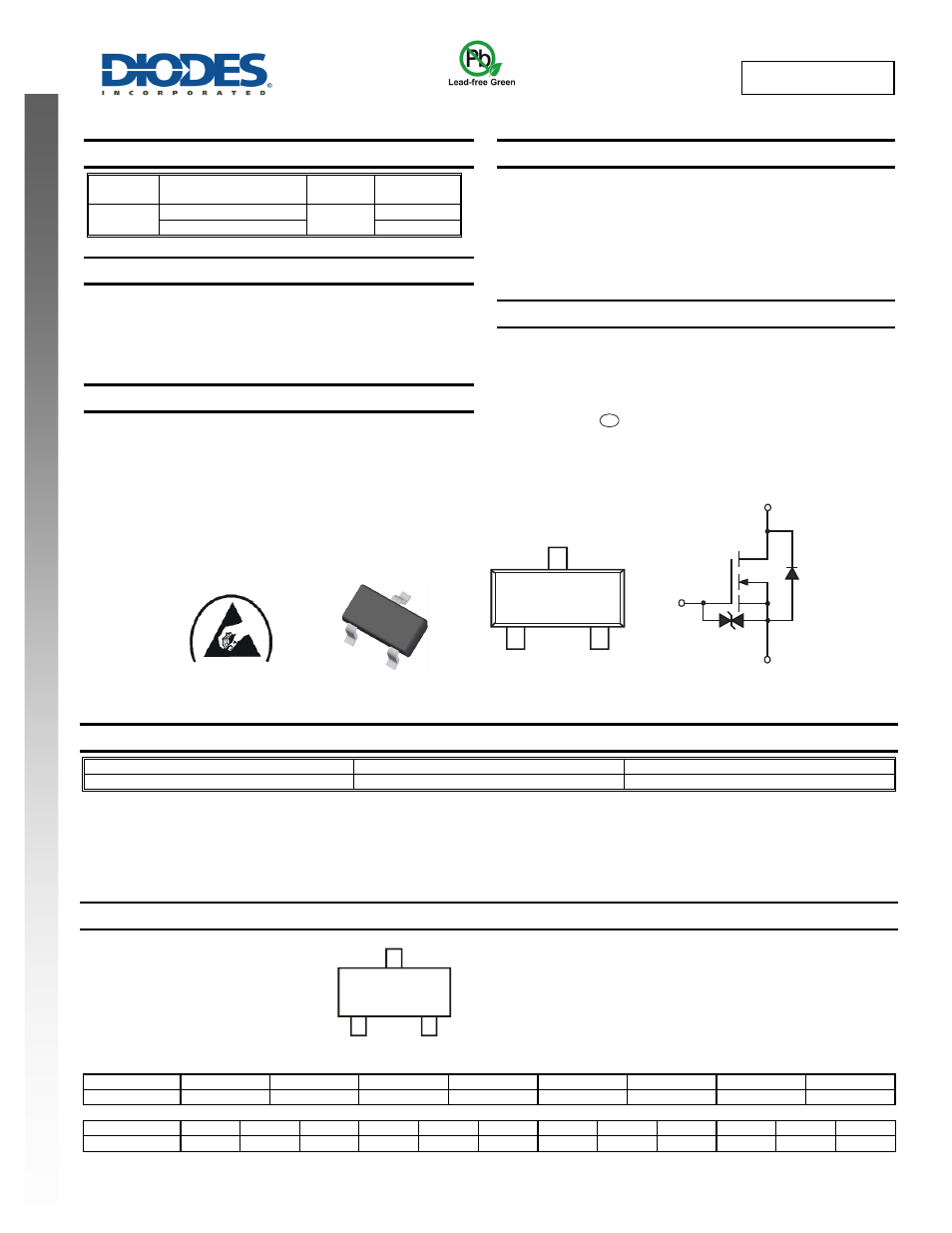

DMN3070SSN

NEW PROD

UC

T


30V N-CHANNEL ENHANCEMENT MODE MOSFET

Product Summary

V

(BR)DSS

R

DS(ON) MAX

Package

I

D

T

A

= +25°C

30V

40mΩ @ V

GS

= 10V

SC59

5.1A

50mΩ @ V

GS

= 4.5V

4.3A

Description

This new generation MOSFET has been designed to minimize the on-
state resistance (R

DS(ON)

) and yet maintain superior switching

performance, making it ideal for high efficiency power management
applications.

Applications

 Load

Switch

 DC-DC

Converters

Power Management Functions

Features

 Low

On-Resistance

ESD Protected Gate

Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability


Mechanical Data

 Case:

SC59

Case Material – Molded Plastic. UL Flammability Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Finish - Matte Tin Solderable per MIL-STD-202,
Method 208

Terminal Connections: See Diagram

Weight: 0.014 grams (approximate)











Ordering Information

(Note 4)

Part Number

Case

Packaging

DMN3070SSN-7

SC59

3000/Tape & Reel

Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http”//www.diodes.com/products/packages.html


Marking Information








Date Code Key

Year

2010

2011

2012

2013

2014

2015

2016

2017

Code

X Y Z A B C D E

Month

Jan

Feb

Mar

Apr

May

Jun

Jul

Aug

Sep

Oct

Nov

Dec

Code 1 2 3 4 5 6 7 8 9 O N D


e3

D

G

S

TOP VIEW

Pin Configuration

Source

Gate

Protection
Diode

Gate

Drain

Body
Diode

Equivalent Circuit

TOP VIEW

ESD PROTECTED

2kV

SC59

N70 = Product Type Marking Code
YM = Date Code Marking
Y = Year ex: Z = 2012
M = Month ex: 9 = September

N70

YM
