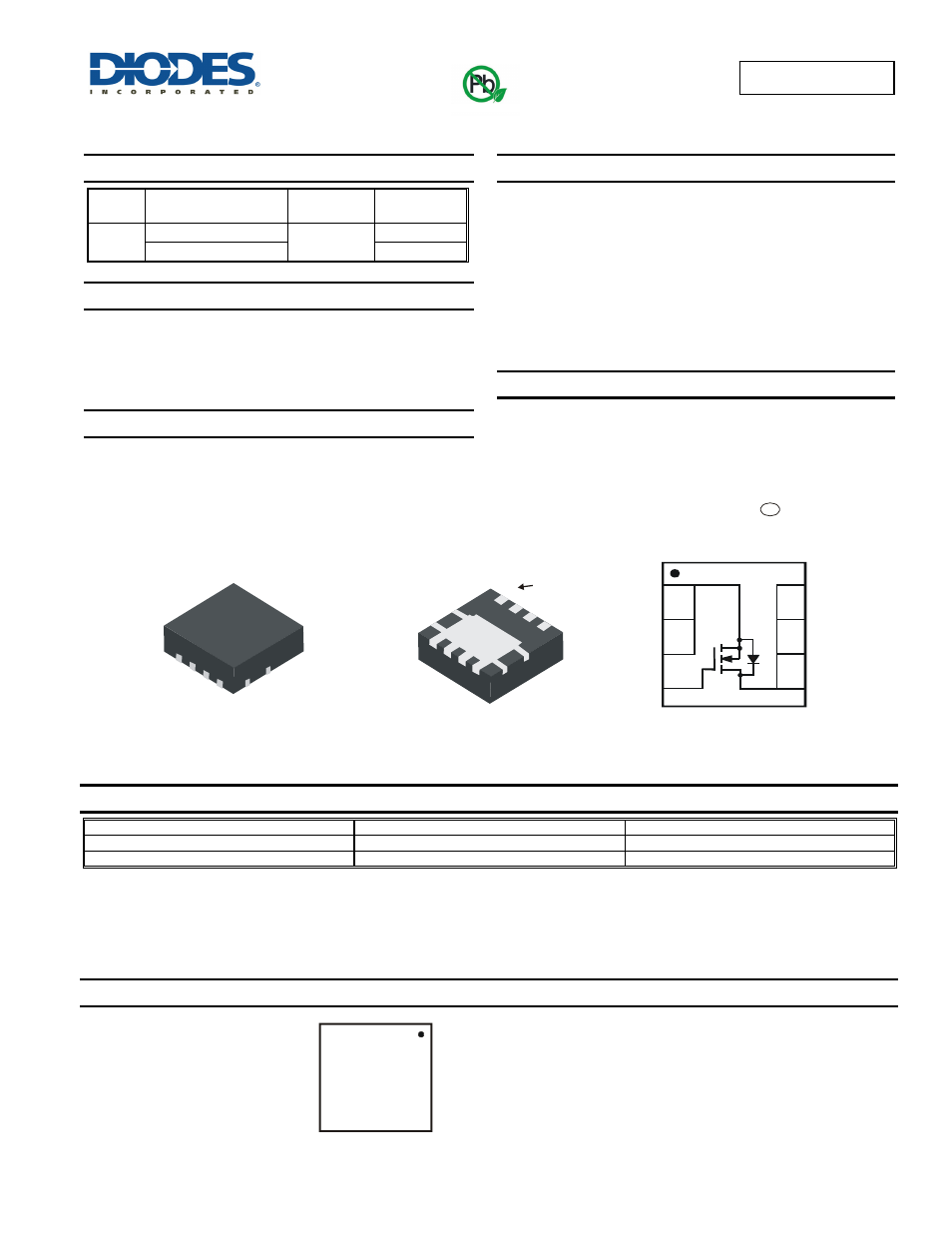

DMN3030LFG
Document number: DS35499 Rev. 5 - 2
1 of 6
www.diodes.com
March 2013
© Diodes Incorporated
POWERDI is a registered trademark of Diodes Incorporated.
DMN3030LFG
NEW PROD
UC
T
N-CHANNEL ENHANCEMENT MODE MOSFET
POWERDI ®
Product Summary
V
(BR)DSS
R
DS(ON)
Package
I
D
T
A
= +25°C
30V
18mΩ @ V
GS
= 10V POWERDI
3333-8
8.6A
27mΩ @ V
GS
= 4.5V 5.5A
Description
This new generation MOSFET has been designed to minimize the on-
state resistance (R
DS(on)
) and yet maintain superior switching
performance, making it ideal for high efficiency power management
applications.
Applications
 Backlighting
 DC-DC
Converters
 Power Management Functions
Features
 Low R
DS(ON)
– ensures on state losses are minimized
 Small form factor thermally efficient package enables higher
density end products
 Occupies just 33% of the board area occupied by SO-8 enabling
smaller end product
 Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
 Halogen and Antimony Free. “Green” Device (Note 3)
 Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
 Case: POWERDI3333-8
 Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
 Moisture Sensitivity: Level 1 per J-STD-020
 Terminals: Finish  Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
 Weight: 0.072 grams (approximate)
Ordering Information
(Note 4)
Part Number Case Packaging
DMN3030LFG-7 POWERDI3333-8 2000 / Tape & Reel
DMN3030LFG-13 POWERDI3333-8 3000 / Tape & Reel
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http”//www.diodes.com/products/packages.html.
Marking Information
Bottom View
Top View
Internal Schematic
Top View
POWERDI3333-8
1
2
3
4
8
7
6
5
S
S
S
G
D
D
D
D
Pin 1
N30 = Product marking code
YYWW = Date code marking
YY = Last digit of year (ex: 10 for 2010)
WW = Week code (01 – 53)
N30
YYW
W
e3
Green
