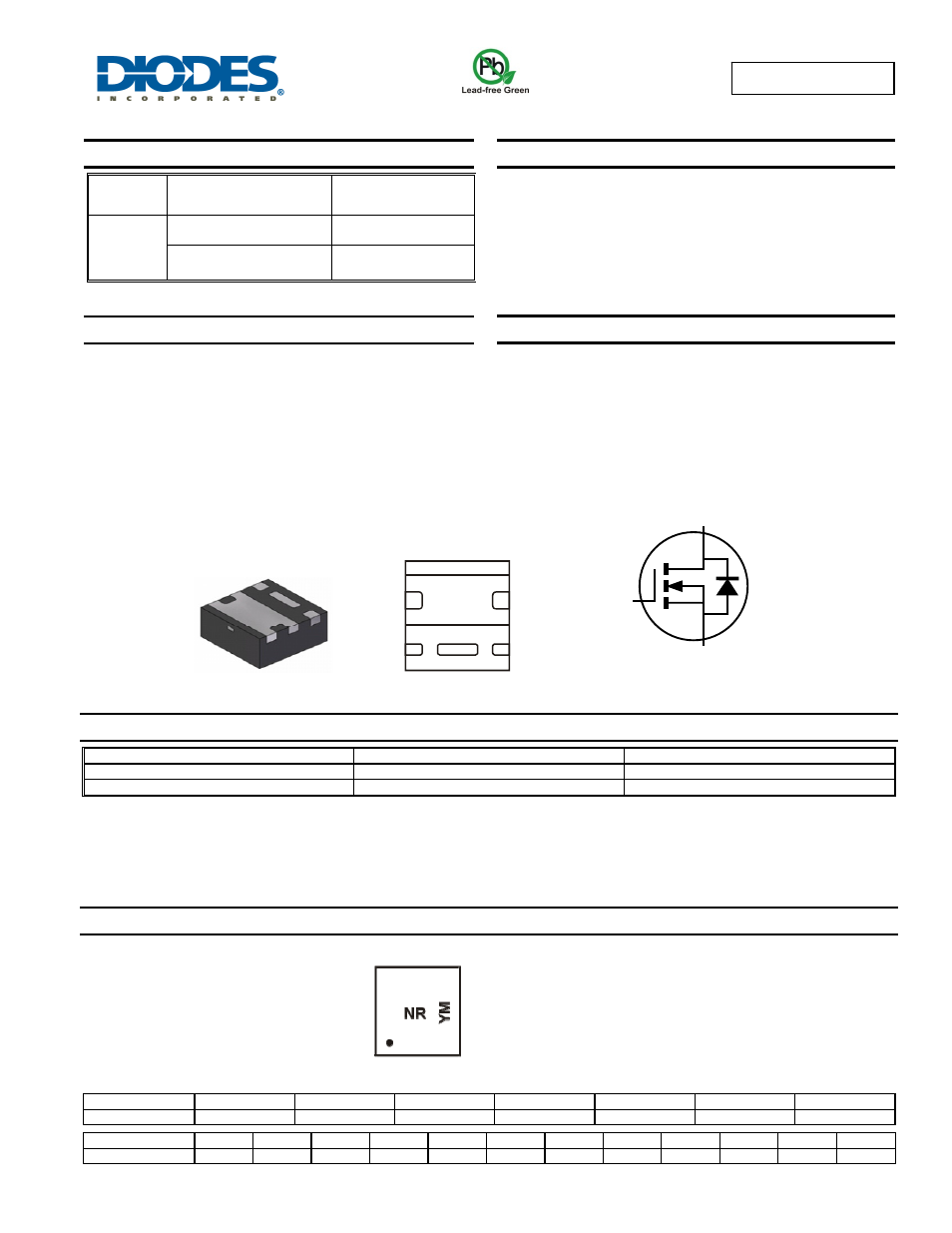

Diodes DMN3016LFDE User Manual
Product summary, Description and applications, Features and benefits

DMN3016LFDE
Document number: DS35900 Rev. 2 - 2
1 of 6
September 2013
© Diodes Incorporated
DMN3016LFDE
NEW PROD
UC
T
ADVAN
CE I
N
F
O
RM
ATI
O
N
N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(ON)
max
I
D
max
T
A
= +25°C
30V
12mΩ @ V
GS
= 10V
10A
16mΩ @ V
GS
= 4.5V
8.5A
Description and Applications
This MOSFET has been designed to minimize the on-state resistance
(R
DS(on)
) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
Battery Management Application
Power Management Functions
DC-DC
Converters
Features and Benefits
0.6mm profile – ideal for low profile applications
PCB footprint of 4mm
2
Low Gate Threshold Voltage
Low On-Resistance
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case: U-DFN2020-6 Type E
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – NiPdAu over Copper leadframe. Solderable
per MIL-STD-202, Method 208
Weight: 0.0065 grams (approximate)
Ordering Information
(Note 4)
Part Number
Case
Packaging
DMN3016LFDE-7
U-DFN2020-6 Type E
3,000/Tape & Reel
DMN3016LFDE-13
U-DFN2020-6 Type E
10,000/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Date Code Key
Year
2011
2012
2013
2014
2015
2016
2017
Code
Y Z A B C D E
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code
1 2 3 4 5 6 7 8 9 O N D
Bottom View
Pin Out
Internal Schematic
D
D
D
D
1
2
6
5
S
S
G 3
4
U-DFN2020-6
Type E
NR = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: Y = 2011)
M = Month (ex: 9 = September)
D
S
G
