DMG8880LK3
Document number: DS32052 Rev. 4 - 2
1 of 6
www.diodes.com
December 2010
© Diodes Incorporated

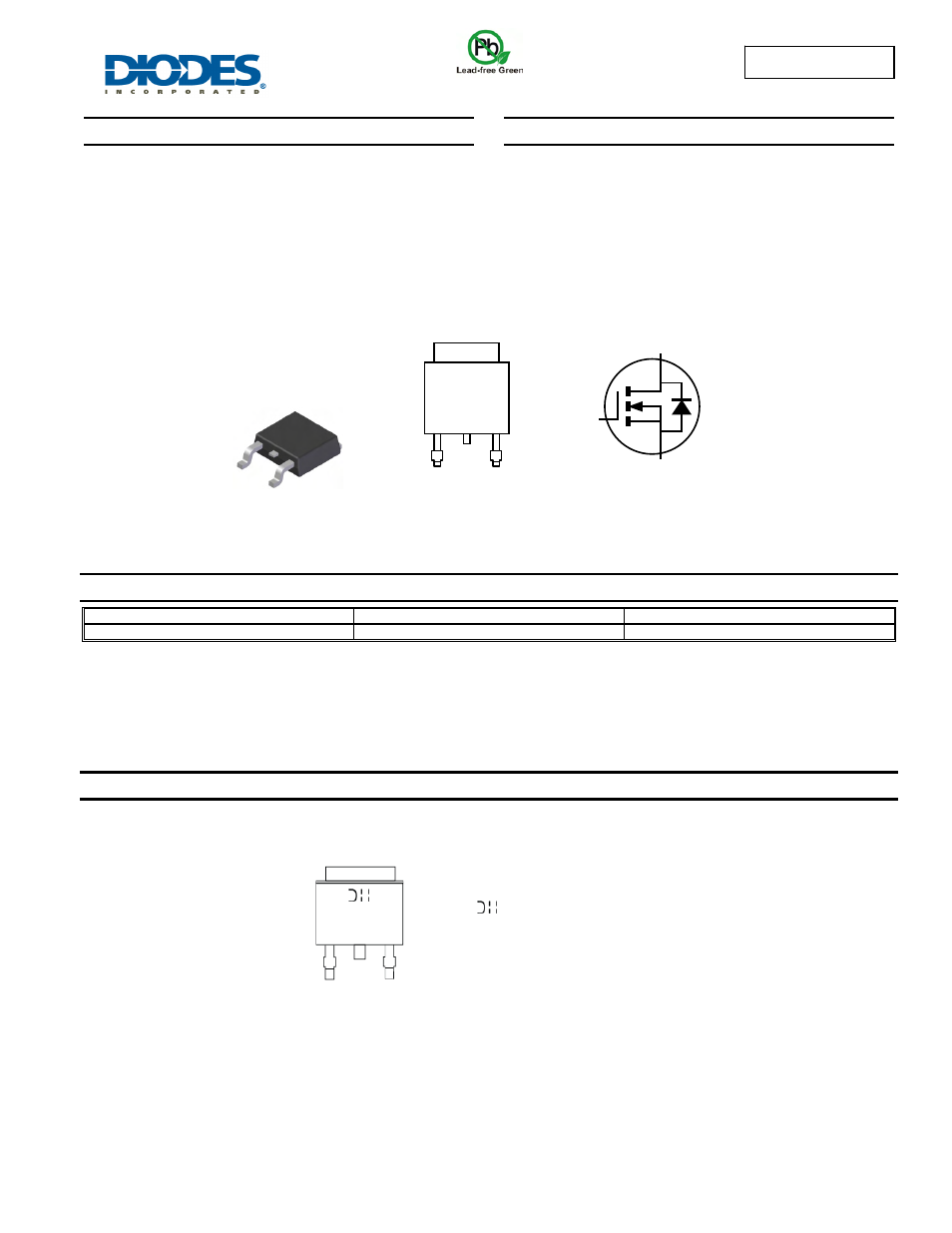

DMG8880LK3
N-CHANNEL ENHANCEMENT MODE MOSFET
Features
• Low On-Resistance
• Low Input Capacitance
•
Fast Switching Speed
•
Low Input/Output Leakage
•
Lead Free By Design/RoHS Compliant (Note 1)
• "Green" Device (Note 2)
• Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case: TO252-3L
• Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
• Terminal Connections: See Diagram Below
• Weight: 0.33 grams (approximate)
Ordering Information
(Note 3)
Part Number Case Packaging
DMG8880LK3-13 TO252-3L 2500 / Tape & Reel
Notes: 1. No purposefully added lead.
2. Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com.
3. For packaging details, go to our website at http://www.diodes.com.
Marking Information
TO252-3L
Top View
YYWW
G8880L
G8880L = Product Type Marking Code
= Manufacturer’s Marking
YYWW = Date Code Marking
YY = Year (ex: 09 = 2009)
WW = Week (01 ~ 53)
D
S
G
Equivalent Circuit
PIN OUT -TOP VIEW
G S
D
D
