Diodes DMG4468LK3 User Manual
Ds g, Features, Mechanical data

DMG4468LK3
Document number: DS31958 Rev. 3 - 2
1 of 6
June 2013
© Diodes Incorporated

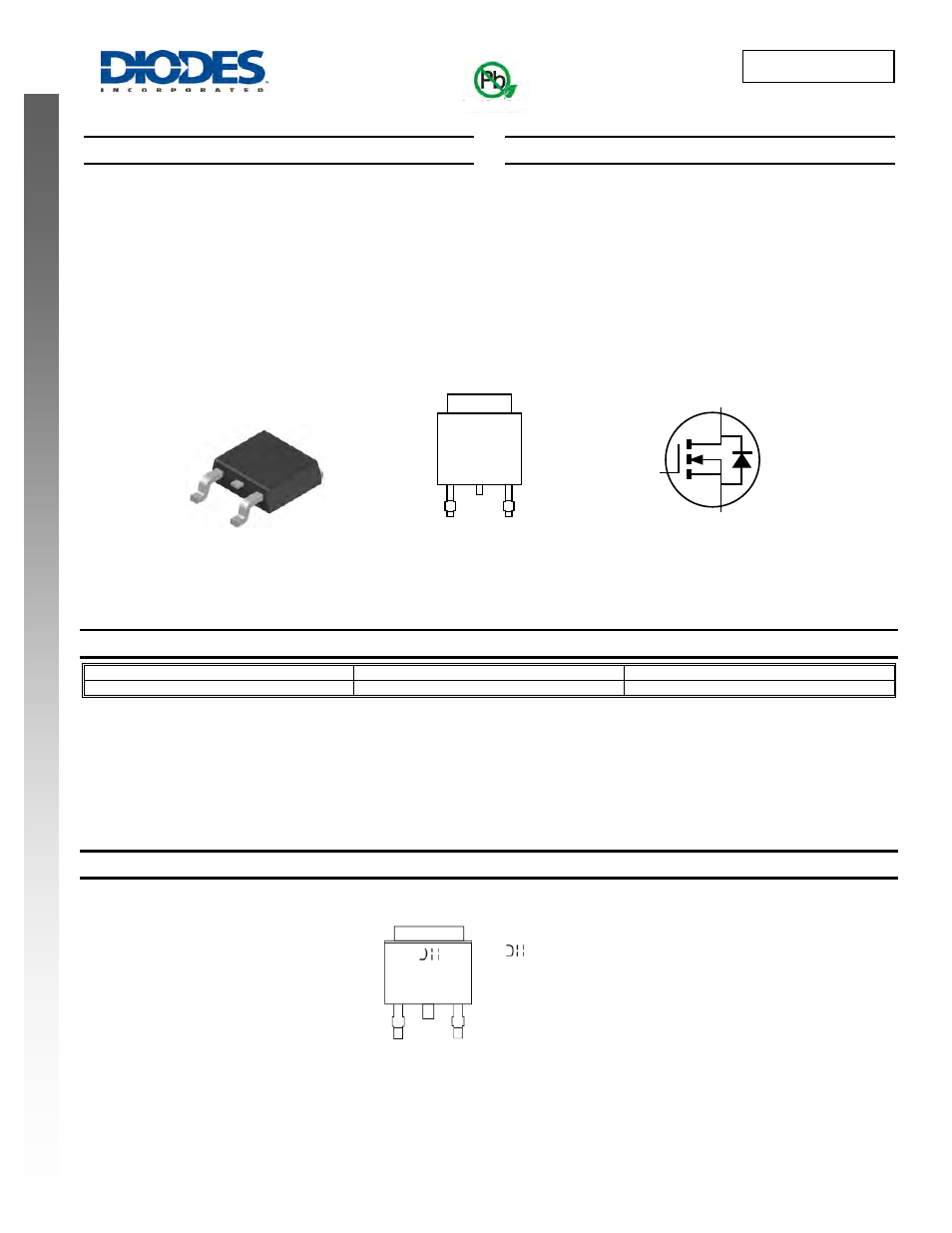

DMG4468LK3
NE
W
P
R
OD
UC
T
N-CHANNEL ENHANCEMENT MODE MOSFET
Features
•
Low On-Resistance
•
Low Input Capacitance
•
Fast Switching Speed
•
Low Input/Output Leakage
•
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
•
Case: TO252
•
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals Connections: See Diagram
•
Terminals: Matte Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Marking Information: See Page 5
•
Ordering Information: See Page 5
•
Weight: 0.33 grams (approximate)
Ordering Information
(Note 4)
Part Number
Case
Packaging
DMG4468LK3-13
TO252
2500 / Tape & Reel
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. Se
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website a
Marking Information
TOP VIEW
PIN OUT -TOP VIEW
D
S
G
Equivalent Circuit
G
S
D
D
Green
= Manufacturer’s Marking
N4468L = Product Type Marking Code
YYWW = Date Code Marking
YY = Year (ex: 13 = 2013)
WW = Week (01-52)
YYWW
N4468L
