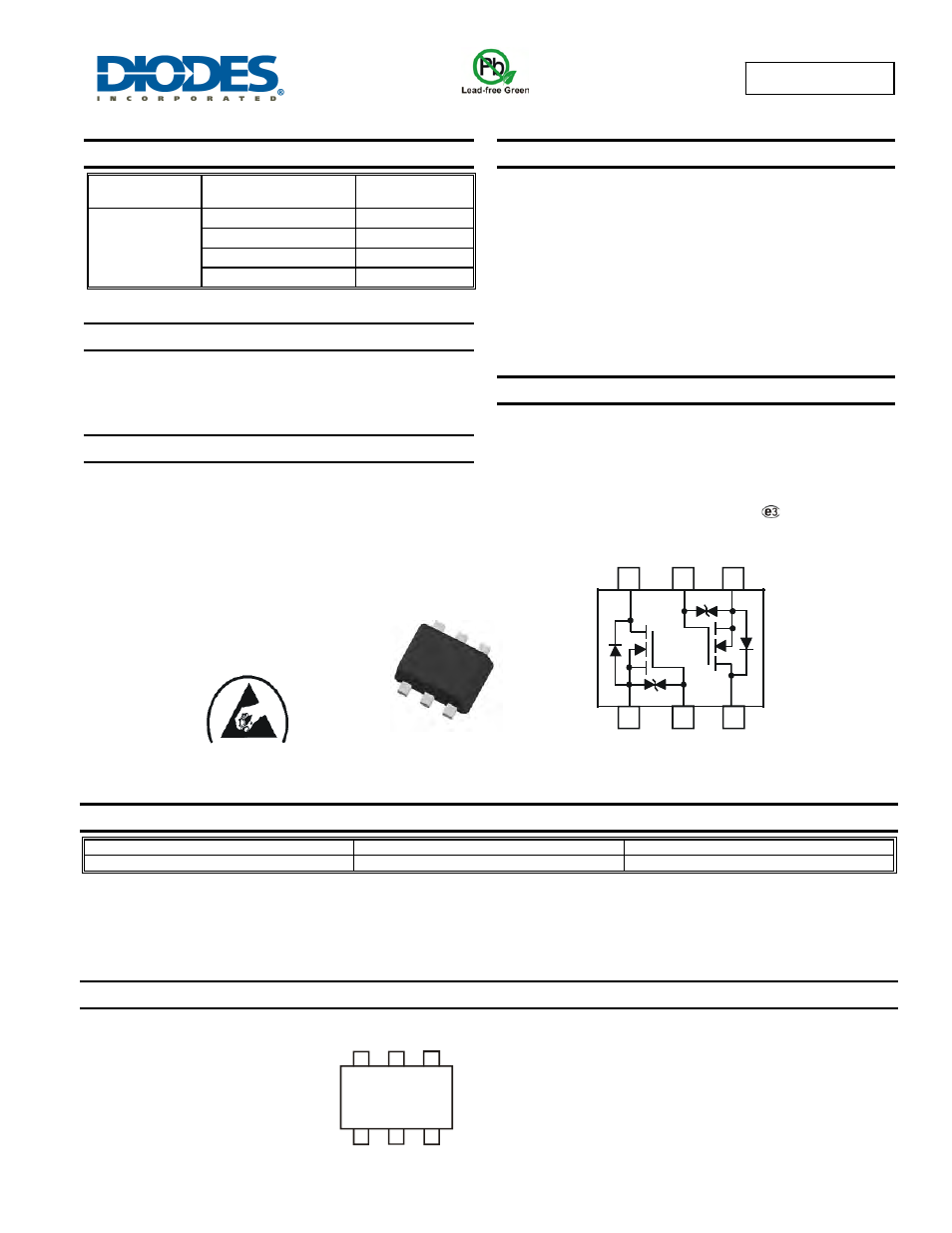

background image

DMN2990UDJ

Document number: DS35401 Rev. 7 - 2

1 of 6

www.diodes.com

September 2012

© Diodes Incorporated

DMN2990UDJ

NEW PROD

UC

T


DUAL N-CHANNEL ENHANCEMENT MODE MOSFET

Product Summary

V

(BR)DSS

R

DS(ON)

max

I

D

max

T

A

= 25°C

20V

0.99

Ω @ V

GS

= 4.5V

450mA

1.2

Ω @ V

GS

= 2.5V

400mA

1.8

Ω @ V

GS

= 1.8V

330mA

2.4

Ω @ V

GS

= 1.5V

300mA


Description

This MOSFET has been designed to minimize the on-state resistance
(R

DS(on)

) and yet maintain superior switching performance, making it

ideal for high efficiency power management applications.

Applications

General Purpose Interfacing Switch

Power Management Functions

• DC-DC

Converters

• Analog

Switch

Features

• Dual

N-Channel

MOSFET

• Low

On-Resistance

Very low Gate Threshold Voltage, 1.0V max

Low Input Capacitance

Fast Switching Speed

Ultra-Small Surface Mount Package 1mm x 1mm

Low Package Profile, 0.45mm Maximum Package height

• ESD

Protected

Gate

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 standards for High Reliability

Mechanical Data

• Case:

SOT963

Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

• Terminal

Connections

Indicator: See diagram

• Terminals:

Finish

⎯ Matte Tin annealed over Copper leadframe.

Solderable per MIL-STD-202, Method 208

Weight: 0.027 grams (approximate)














Ordering Information

(Note 4)

Part Number

Case

Packaging

DMN2990UDJ-7

SOT963

10K/Tape & Reel

Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.



3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com.



Marking Information










ESD PROTECTED

Top View

SOT963

Top View

Schematic and Transistor Diagram

L1 = Product Type Marking Code

L1

S

2

D

2

D

1

S

1

G

2

G

1
