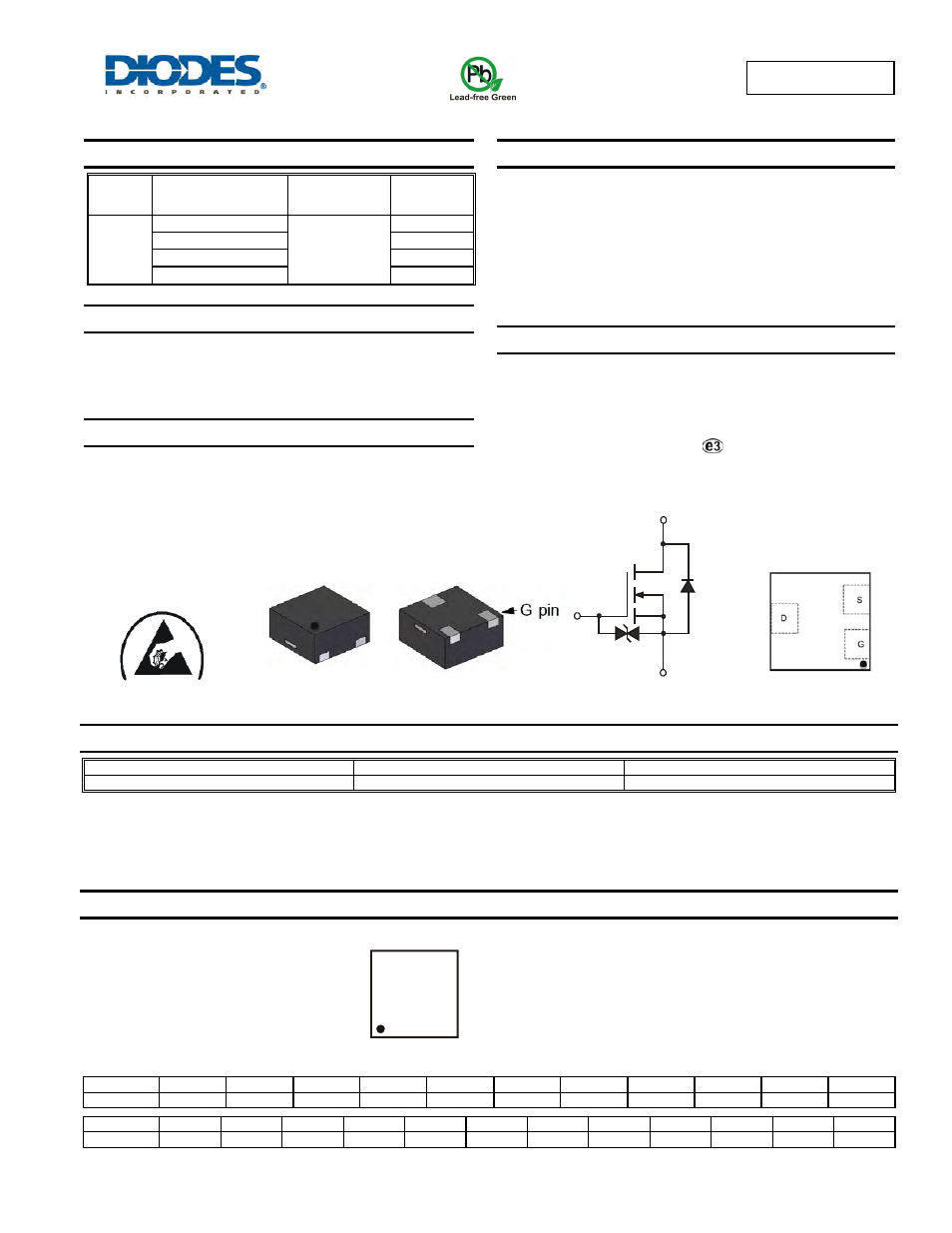

DMN2400UFD

Document number: DS35475 Rev. 4 - 2

1 of 6

www.diodes.com

July 2012

© Diodes Incorporated

DMN2400UFD

Source

Body
Diode

Gate
Protection
Diode

Gate

Drain


N-CHANNEL ENHANCEMENT MODE MOSFET

Product Summary

V

(BR)DSS

R

DS(ON)

Package

I

D

T

A

= +25°C

20V

0.6

Ω @ V

GS

= 4.5V

X1-DFN1212-3

0.9A

0.8

Ω @ V

GS

= 2.5V

0.7A

1.0

Ω @ V

GS

= 1.8V

0.5A

1.6

Ω @ V

GS

= 1.5V

0.3A

Description

This new generation MOSFET has been designed to minimize the on-
state resistance (R

DS(on)

) and yet maintain superior switching

performance, making it ideal for high efficiency power management
applications.

Applications

Power management functions

Battery Operated Systems and Solid-State Relays

Load switch

Features

• Low

On-Resistance

Very low Gate Threshold Voltage, 1.0V max

Low Input Capacitance

Fast Switching Speed

• ESD

Protected

Gate

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 standards for High Reliability

Mechanical Data

• Case:

X1-DFN1212-3

Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Finish – NiPdAu over Copper leadframe. Solderable
per MIL-STD-202, Method 208

Terminal Connections: See Diagram

Weight: 0.005 grams (approximate)














Ordering Information

(Note 4)

Part Number

Case

Packaging

DMN2400UFD

-7

X1-DFN1212-3

3000/Tape & Reel

Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.



3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com.


Marking Information











Date Code Key

Year

2007

2008

2009

2010 2011 2012 2013 2014 2015 2016 2017

Code

U V W X Y Z A B C D E

Month

Jan

Feb

Mar

Apr

May

Jun

Jul

Aug

Sep

Oct

Nov

Dec

Code 1 2 3 4 5 6 7 8 9 O N D


Top View

Bottom View

Equivalent Circuit

Pin-out Top view

ESD PROTECTED

K24

YM

K24 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: Y = 2011)
M = Month (ex: 9 = September)
