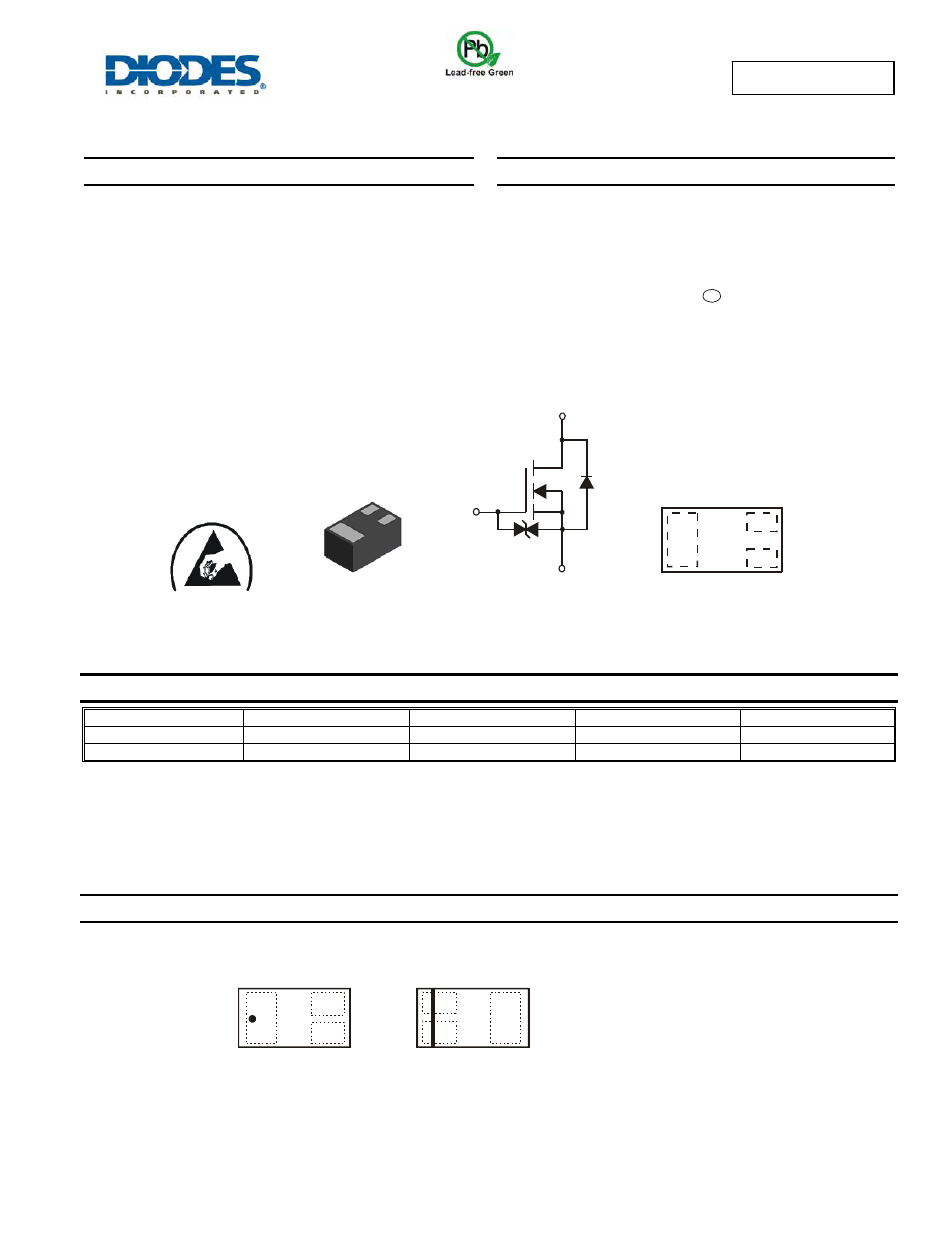

DMN2005LP4K

Document number: DS30799 Rev. 6 - 2

1 of 6

www.diodes.com

June 2012

© Diodes Incorporated

DMN2005LP4K


N-CHANNEL ENHANCEMENT MODE MOSFET

Features

• Low

On-Resistance

Very Low Gate Threshold Voltage, 0.9V Max.

Fast Switching Speed

Low Input/Output Leakage

Ultra-Small Surface Mount Package

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)



ESD Protected Gate

Ultra Low Profile Package

Qualified to AEC-Q101 Standards for High Reliability

Mechanical Data

• Case:

X2-DFN1006-3

Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminal Connections: See Diagram

• Terminals:

Finish

⎯ NiPdAu over Copper leadframe. Solderable

per MIL-STD-202, Method 208

Weight: 0.001 grams




















Ordering Information

(Note 4)

Part Number

Marking

Reel size (inches)

Tape width (mm)

Quantity per reel

DMN2005LP4K-7 DN

7

8

3000

DMN2005LP4K-7B DN

7

8

10,000

Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com.




Marking Information

















e4

X2-DFN1006-3

Bottom View

Equivalent Circuit

Top View

Pin-Out

Source

Body
Diode

Gate
Protection
Diode

Gate

Drain

D

S

G

ESD PROTECTED

DN = Product Type Marking Code

DN

DN

DMN2005LP4K-7

DMN2005LP4K-7B

Top View

Bar Denotes Gate

and Source Side

Top View

Dot Denotes

Drain Side
