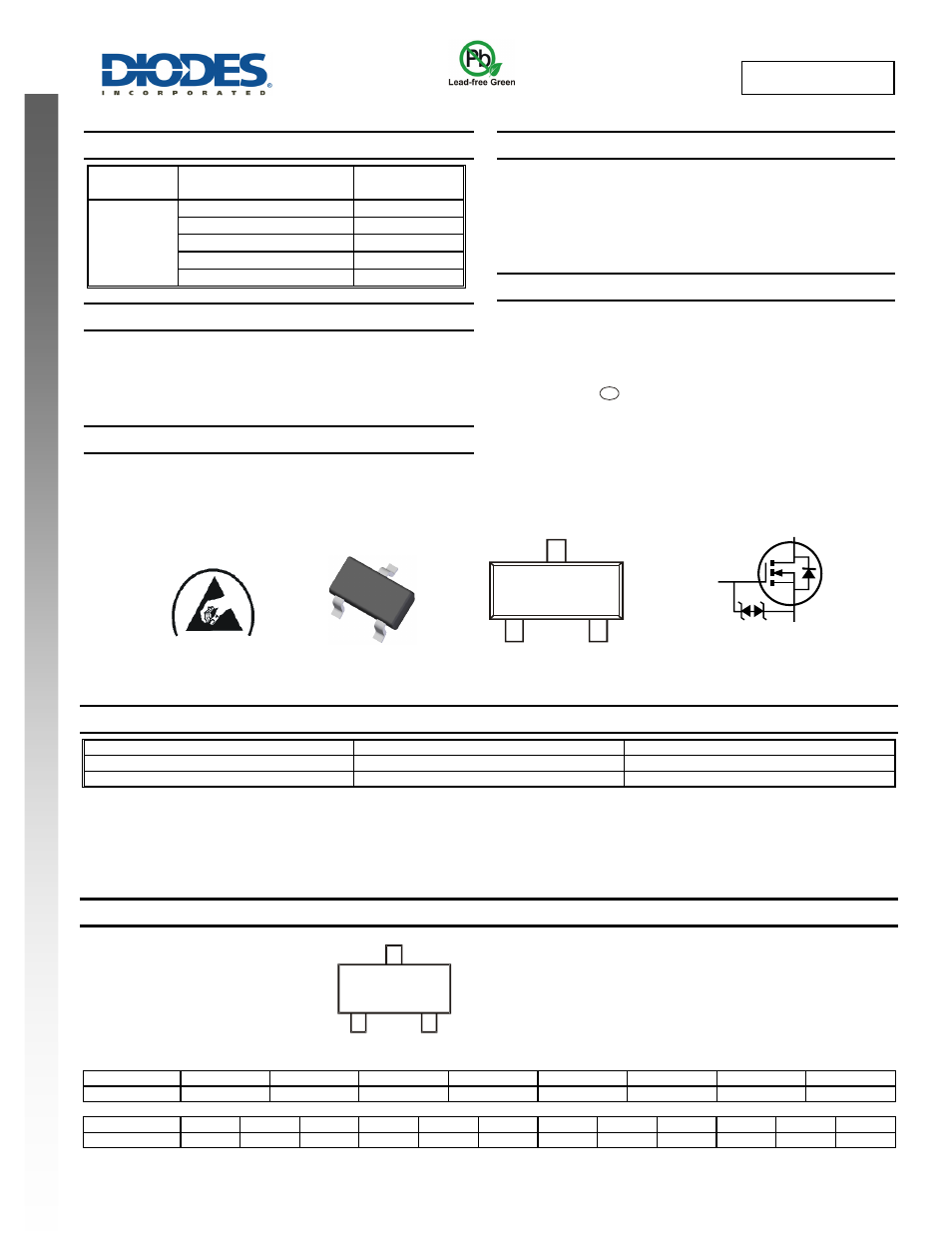

Dmn1019usn new prod uc t, Product summary, Description
DMN1019USN
Document number: DS36999 Rev. 2 - 2
1 of 6
May 2014
© Diodes Incorporated
DMN1019USN
NEW PROD
UC
T
D
S
G
Gate Protection
Diode
12V N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(ON) MAX
I
D
T
A
= +25°C
12V
10mΩ @ V
GS
= 4.5V
9.3A
12mΩ @ V
GS
= 2.5V
8.5A
14mΩ @ V
GS
= 1.8V
7.9A
18mΩ @ V
GS
= 1.5V
6.9A
41mΩ @ V
GS
= 1.2V
4.6A
Description
This new generation MOSFET has been designed to minimize the on-
state resistance (R
DS(ON)
) and yet maintain superior switching
performance, making it ideal for high efficiency power management
applications.
Applications
• Load
Switch
• DC-DC
Converters
•
Power Management Functions
Features
• Low
On-Resistance
• ESD
Protected
Gate
•
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
SC59
•
Case Material – Molded Plastic. UL Flammability Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish - Matte Tin Solderable per MIL-STD-202,
Method 208
•
Terminal Connections: See Diagram
•
Weight: 0.014 grams (approximate)
Ordering Information
(Note 4)
Part Number
Case
Packaging
DMN1019USN-7
SC59
3,000/Tape & Reel
DMN1019USN-13
SC59
10,000/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Date Code Key
Year
2013
2014
2015
2016
2017
2018
2019
2020
Code
A B C D E F G H
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code 1 2 3 4 5 6 7 8 9 O N D
e3
D
G
S
Top View
Pin Configuration
Top View
ESD PROTECTED
SC59
N7 = Product Type Marking Code
YM = Date Code Marking
Y = Year ex: A = 2013
M = Month ex: 9 = September
N7
Y
M
Equivalent Circuit
