DDTD (xxxx) C
Document number: DS30384 Rev. 10 - 2
3 of 4
www.diodes.com
January 2009
© Diodes Incorporated
DDTD (xxxx) C
Ordering Information
(Note 4)
Part Number Case Packaging
DDTD113EC-7-F SOT-23 3000/Tape & Reel
DDTD123EC-7-F SOT-23 3000/Tape & Reel
DDTD143EC-7-F SOT-23 3000/Tape & Reel
DDTD114EC-7-F SOT-23 3000/Tape & Reel
DDTD122JC-7-F SOT-23 3000/Tape & Reel
DDTD113ZC-7-F SOT-23 3000/Tape & Reel
DDTD123YC-7-F SOT-23 3000/Tape & Reel
DDTD133HC-7-F SOT-23 3000/Tape & Reel
DDTD123TC-7-F SOT-23 3000/Tape & Reel
DDTD143TC-7-F SOT-23 3000/Tape & Reel
DDTD114TC-7-F SOT-23 3000/Tape & Reel
DDTD114GC-7-F SOT-23 3000/Tape & Reel
Notes: 4. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
Date Code Key
Year 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015
Code N P R S T U V W X Y Z A B C
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Code 1 2 3 4 5 6 7 8 9 O N D

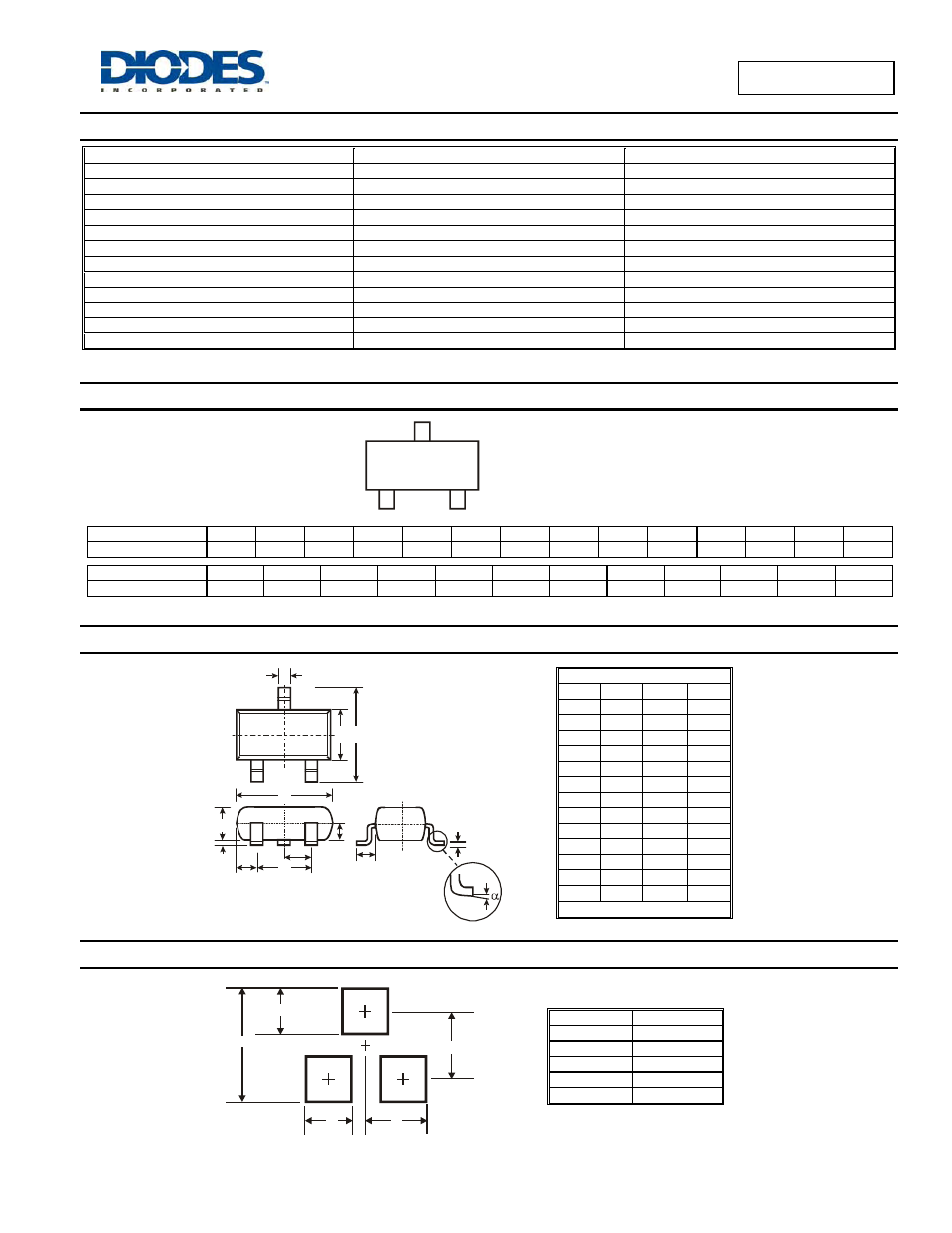

Package Outline Dimensions
Suggested Pad Layout
SOT-23
Dim Min Max Typ
A 0.37 0.51 0.40
B 1.20 1.40 1.30
C 2.30 2.50 2.40
D 0.89 1.03 0.915
F 0.45 0.60 0.535
G 1.78 2.05 1.83
H 2.80 3.00 2.90
J 0.013 0.10 0.05
K 0.903 1.10 1.00
K1 - - 0.400
L 0.45 0.61 0.55
M 0.085 0.18 0.11
α 0° 8° -
All Dimensions in mm
Dimensions Value (in mm)
Z 2.9
X 0.8
Y 0.9
C 2.0
E 1.35
Nxx = Product Type Marking Code (See Page 1)
YM = Date Code Marking
Y = Year (ex: T = 2002)
M = Month (ex: 9 = September)
A
M
J L
D
F
B C
H
K
G
K1
X E
Y
C
Z
Nxx
YM
