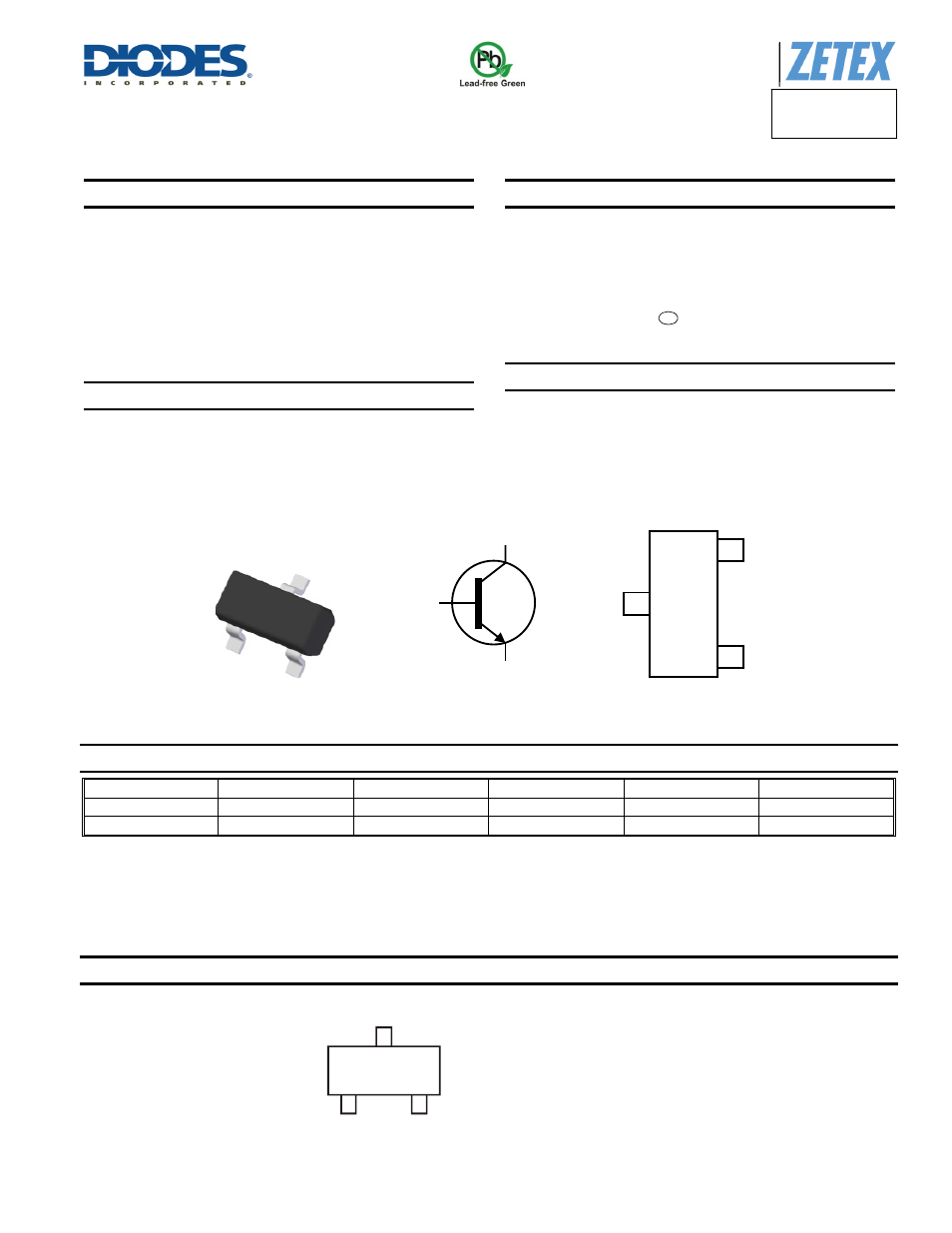

FMMT415-FMMT417

Datasheet Number: DS33084 Rev. 5 - 2

1 of 7

www.diodes.com

February 2014

© Diodes Incorporated

FMMT415
FMMT417

A Product Line of

Diodes Incorporated


NPN AVALANCHE TRANSISTOR IN SOT23

Features

• Avalanche

Transistor

60A Peak Avalanche Current (Pulse width = 20ns)

• BV

CES

> 260V (415) & 320V (417)

• BV

CEO

> 100V

Specifically designed for Avalanche mode operation

Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

Description

The FMMT415/417 are NPN silicon planar bipolar transistors
designed for operating in avalanche mode. Tight process control and
low inductance packaging combine to produce high current pulses
with fast edges.

Mechanical Data

• Case:

SOT23

Case Material: Molded Plastic. “Green” Molding Compound
UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Finish – Matte Tin Plated Leads, Solderable per MIL-
STD-202, Method 208

Weight: 0.008 grams (Approximate)

Applications

Laser Diode Drivers for Ranging and Measurement (LIDAR)

Automotive Radar Systems

ƒ

Adaptive Cruise Control

ƒ

Collision Avoidance System

Fast Edge Switch Generator

High Speed Pulse Generators
















Ordering Information

(Note 4)

Product

Compliance

Marking

Reel size (inches)

Tape width (mm)

Quantity per reel

FMMT415TD AEC-Q101

415

7

8

500

FMMT417TD AEC-Q101

417

7

8

500

Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, “Green”

and Lead-free.

3. Halogen- and Antimony-free “Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.



Marking Information




xxx = Product Type Marking Code
(See Ordering Information)

e3

Top View

Pin-Out

Top View

Device Symbol

C

E

B

C

E

B

SOT23

589

xxx
