FCX558
A Product Line of
Diodes Incorporated
400V PNP SILICON PLANAR HIGH VOLTAGE TRANSISTOR IN SOT89
Features
• BV
CEO
> -400V
•
I
C
= -200mA high Continuous Current
•
Low saturation voltage V
CE(sat)
< -200mV @ -20mA
•
Complementary NPN type: FCX458
•
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
SOT89
•
Case material: molded plastic. “Green” molding compound.
•
UL Flammability Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish - Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
•
Weight: 0.05 grams (Approximate)
Ordering Information
(Note 4)
Product
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
FCX558TA
P58 7 12
1,000
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. Se information about Diodes Incorporated’s definitions of Halogen and Antimony free, "Green" and Lead-Free.
3. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl)
and <1000ppm antimony compounds.
4. For packaging details, go to our website at

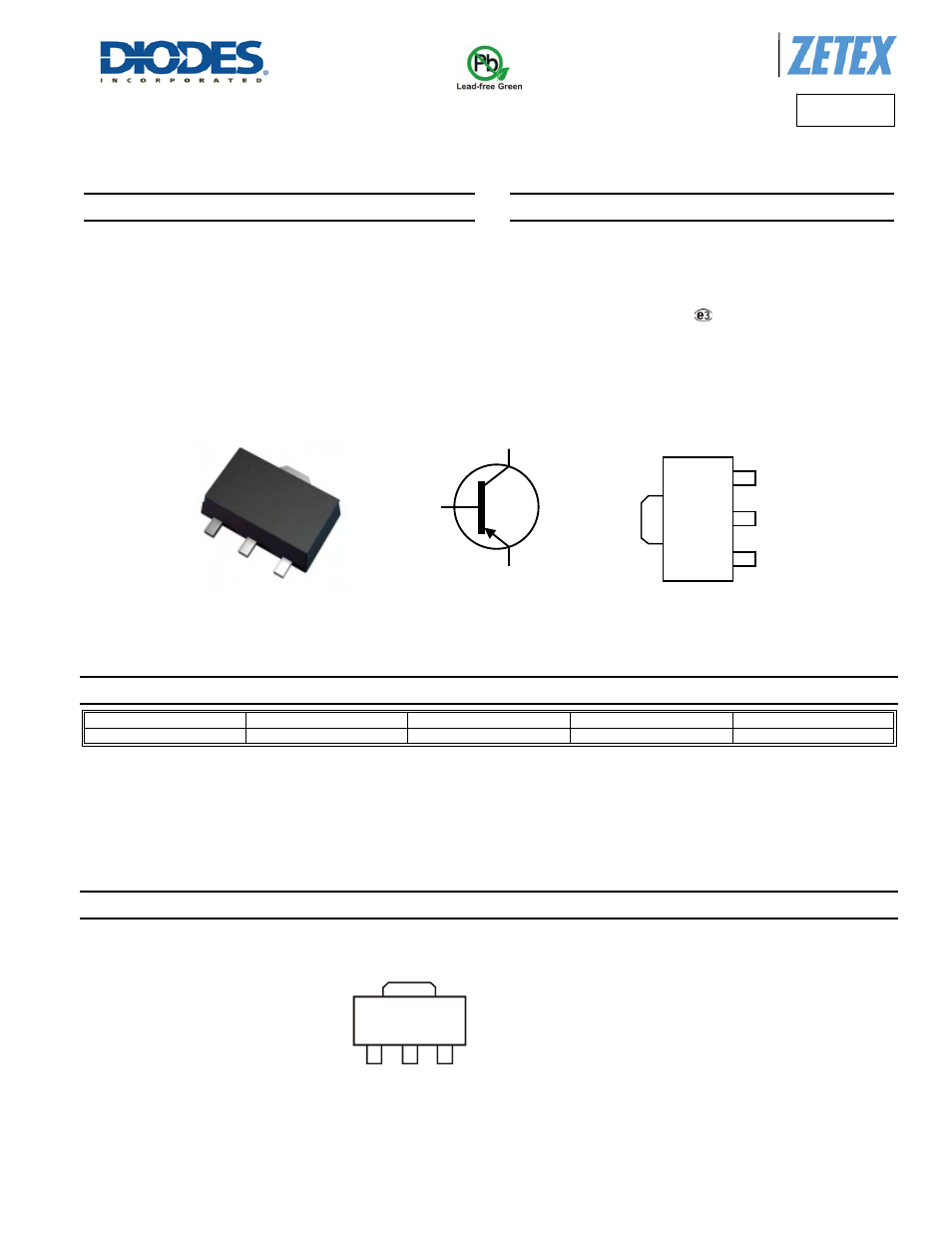

Marking Information
P58 = Product Type Marking Code
Top View
Device Symbol
Top View
Pin Out
SOT89
C
E
C
B
C
E
B
P58
