DZT5551

Document number: DS31219 Rev. 3 - 2

1 of 7

www.diodes.com

November 2012

© Diodes Incorporated

DZT5551

160V NPN VOLTAGE TRANSISTOR IN SOT223

Features

• BV

CEO

> 160V

• BV

EBO

> 6V

I

C

= 600mA Continuous Collector Current

Low Saturation Voltage (150mV max @10mA)

h

FE

specified up to 50mA for a high gain hold up

Complementary PNP Type: DZT5401

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

Applications

High Voltage Amplification Applications

High Voltage Switching

Mechanical Data

• Case:

SOT223

Case material: molded plastic. “Green” molding compound.

UL Flammability Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Finish - Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208

Weight: 0.112 grams (approximate)












Ordering Information

(Note 4)

Part Number

Marking

Reel size (inches)

Tape width (mm)

Quantity per reel

DZT5551-13 K4N

13

12

2,500

Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen and Antimony free,"Green" and Lead-Free.

3. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com




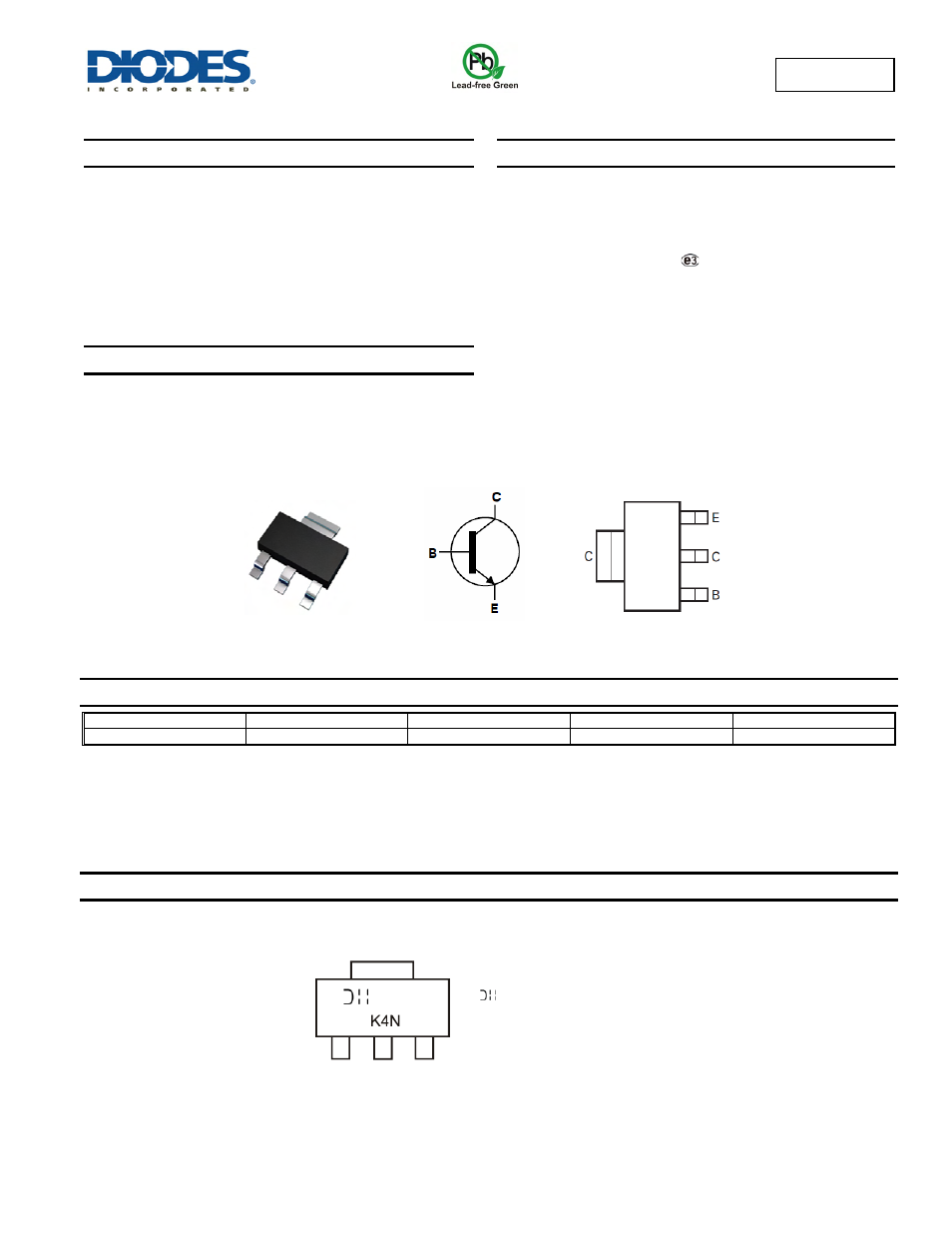

Marking Information













Top View

Pin-Out Top View

Device Schematic

SOT223

K4N = Product type marking code

= Manufacturer’s code marking

YWW = Date code marking
Y = Last digit of year ex: 7 = 2007
WW = Week code 01 - 52

YWW

(Top View)
