Diodes DXT5551P5 User Manual
Features and benefits, Applications, Mechanical data

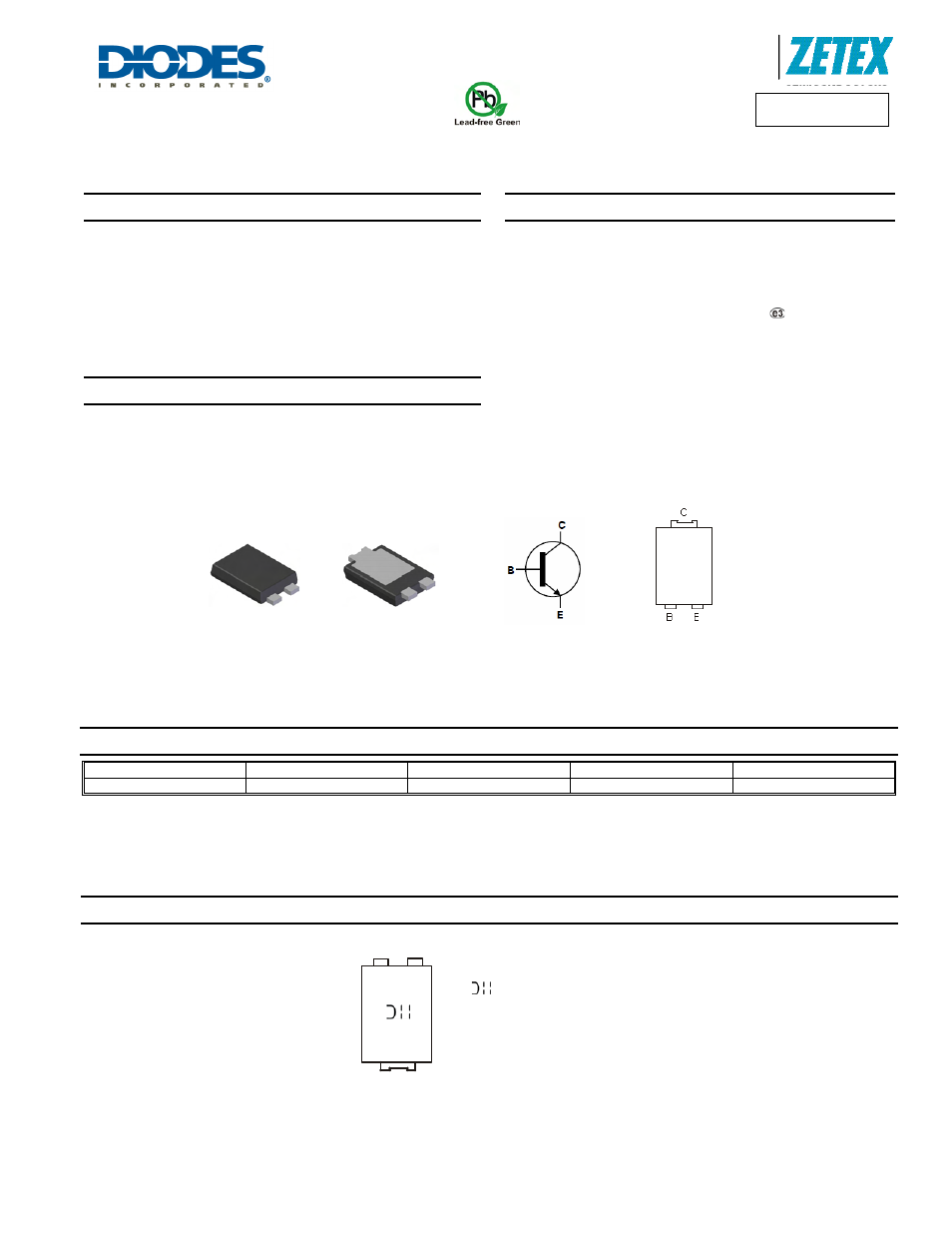

DXT5551P5
Document number: DS32066 Rev. 3 - 2
1 of 7
November 2010
© Diodes Incorporated
DXT5551P5
PowerDI is a registered trademark of Diodes Incorporated.
ADVAN
CE I
N
F
O
RM
ATI
O
N
A Product Line of
Diodes Incorporated
160V NPN HIGH VOLTAGE TRANSISTOR
PowerDI
®
5
Features and Benefits
•
43% smaller than SOT223; 60% smaller than TO252
•
Maximum height just 1.1mm
•
Rated up to 2.25W
• BV
CEO
> 160V
•
I
C(cont)
= 0.6A
•
Lead Free, RoHS Compliant (Note 1)
•
Halogen and Antimony Free, “Green” Device (Note 2)
•
Qualified to AEC-Q101 Standards for High Reliability
Applications
•
Telecom line driver
Mechanical Data
• Case:
PowerDI
®
5
•
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish – Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Weight: 0.093 grams (approximate)
Ordering Information
(Note 3)
Product
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
DXT5551P5-13 DXT5551
13
16
5,000
Notes:
1. No purposefully added lead.
2. Halogen and Antimony Free. Diodes Inc’s “Green” Policy can be found on our website at
3. For packaging details, go to our website at
Marking Information
Top View
Bottom View
Pin-out diagram
Device Schematic
DXT5551 = Product Type Marking Code
= Manufacturers’ Code Marking
K = Factory Designator
YYWW = Date Code Marking
YY = Last Two Digits of Year (ex: 09 for 2009)
WW = Week code (01 - 53)
PowerDI
®
5
YYWWK
DXT5551
