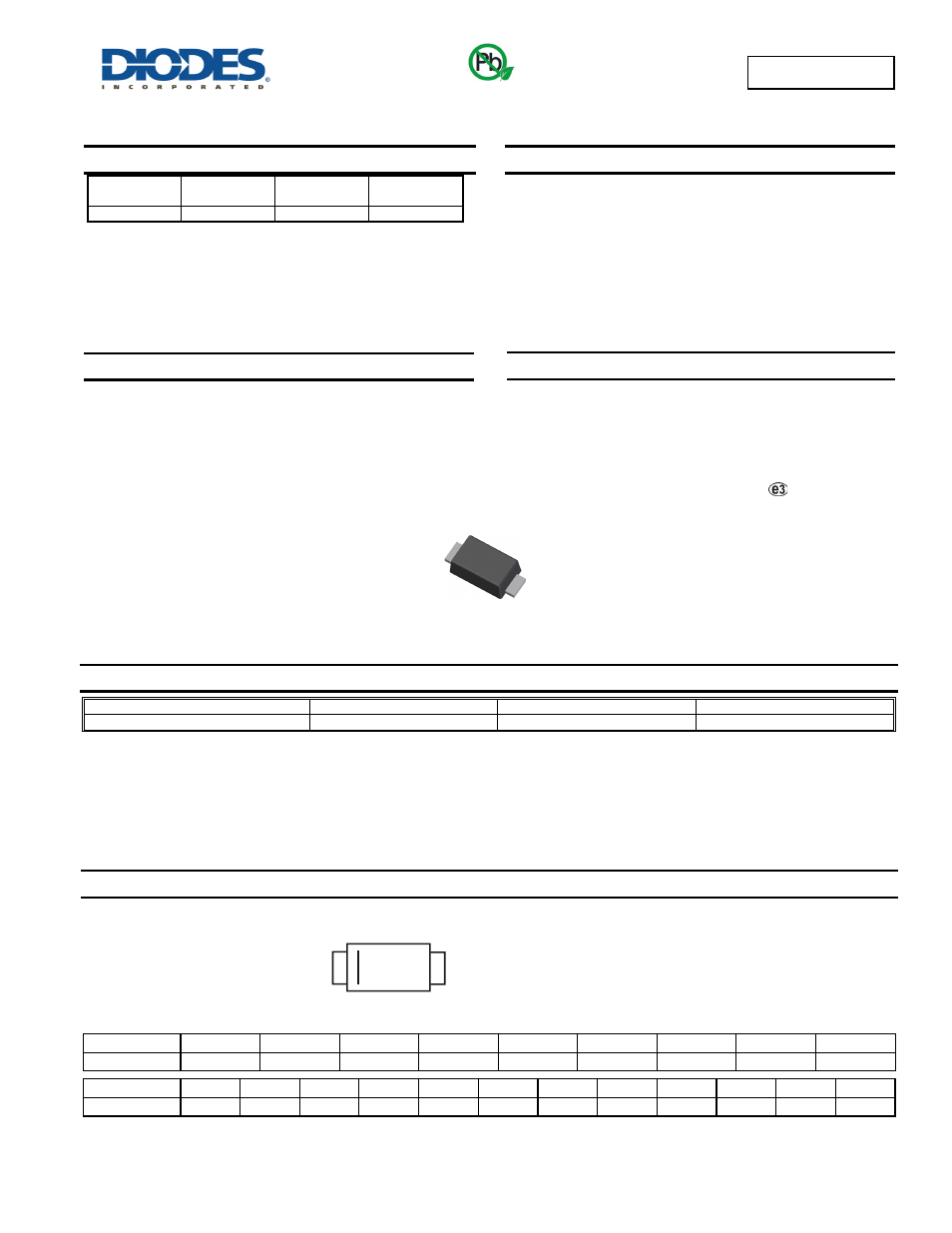

DFLS1200Q
Document number: DS37057 Rev. 1 - 2
1 of 4
www.diodes.com
March 2014
© Diodes Incorporated
DFLS1200Q
1.0A HIGH VOLTAGE SCHOTTKY BARRIER RECTIFIER
PowerDI ® 123
Product Summary
V
R
(V) I
F
(A)
V
F MAX
(V)
@ +25°C
I
R MAX
(mA)
@ +25°C
200 1.0 0.85 0.1
Description and Applications
This Schottky Barrier Rectifier has been designed to meet the
stringent requirements of Automotive Applications. It is ideally suited
to use as:

Polarity Protection Diode
 Re-circulating Diode
 Switching Diode
Features and Benefits
 Guard Ring Die Construction for Transient Protection
 Low Power Loss, High Efficiency
 Patented Interlocking Clip Design for High Surge Current
Capacity
 Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
 Halogen and Antimony Free. “Green” Device (Note 3)
 Qualified to AEC-Q101 Standards for High Reliability
 PPAP Capable (Note 4)
Mechanical Data
 Case: PowerDI ® 123
 Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
 Moisture Sensitivity: Level 1 per J-STD-020
 Terminal Connections: Cathode Band
 Terminals: Finish – Matte Tin annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
 Weight: 0.01 grams (approximate)
Ordering Information
(Note 5)
Part Number Compliance Case Packaging
DFLS1200Q-7 Automotive PowerDI ® 123 3000/Tape & Reel
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally
the same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Date Code Key
Year 2014 2015 2016 2017 2018 2019 2020 2021 2022
Code B C D E F G H I J
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Code 1 2 3 4 5 6 7 8 9 O N D
Top View
F08 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: B = 2014)
M = Month (ex: 9 = September)
F08
YM
Green
