74LVCE1G06
SINGLE INVERTER BUFFER/DRIVER WITH
OPEN DRAIN OUTPUT
74LVC1GE06
Document number: DS32273 Rev. 2 - 2
1 of 13
December 2010
© Diodes Incorporated
NEW PROD
UC
T
Description
The 74LVCE1G06 is a single inverter gate with an open drain
output. The device is designed for operation with a power
supply range of 1.4V to 5.5V. The input is tolerant to 5.5V
allowing this device to be used in a mixed voltage
environment. The device is fully specified for partial power
down applications using I
OFF
. The I
OFF
circuitry disables the
output preventing damaging current backflow when the
device is powered down. The open-drain output can be
connected to other open drain outputs to implement active-
low wired-OR or active-high wired-AND functions. The
maximum sink current is 32 mA.
Features
• Wide Supply Voltage Range from 1.65 to 5.5V
• ± 24mA Output Drive at 3.3V
• CMOS low power consumption
• I
OFF
Supports Partial-Power-Down Mode Operation
• Inputs accept up to 5.5V
• ESD Protection Tested per JESD 22
Exceeds 200-V Machine Model (A115-A)
Exceeds 2000-V Human Body Model (A114-A)
• Latch-Up Exceeds 100mA per JESD 78, Class II
• Range of Package Options
• SOT25, SOT353, and DFN1410: Assembled with “Green”
Molding Compound (no Br, Sb)
• Lead Free Finish/ RoHS Compliant (Note 1)

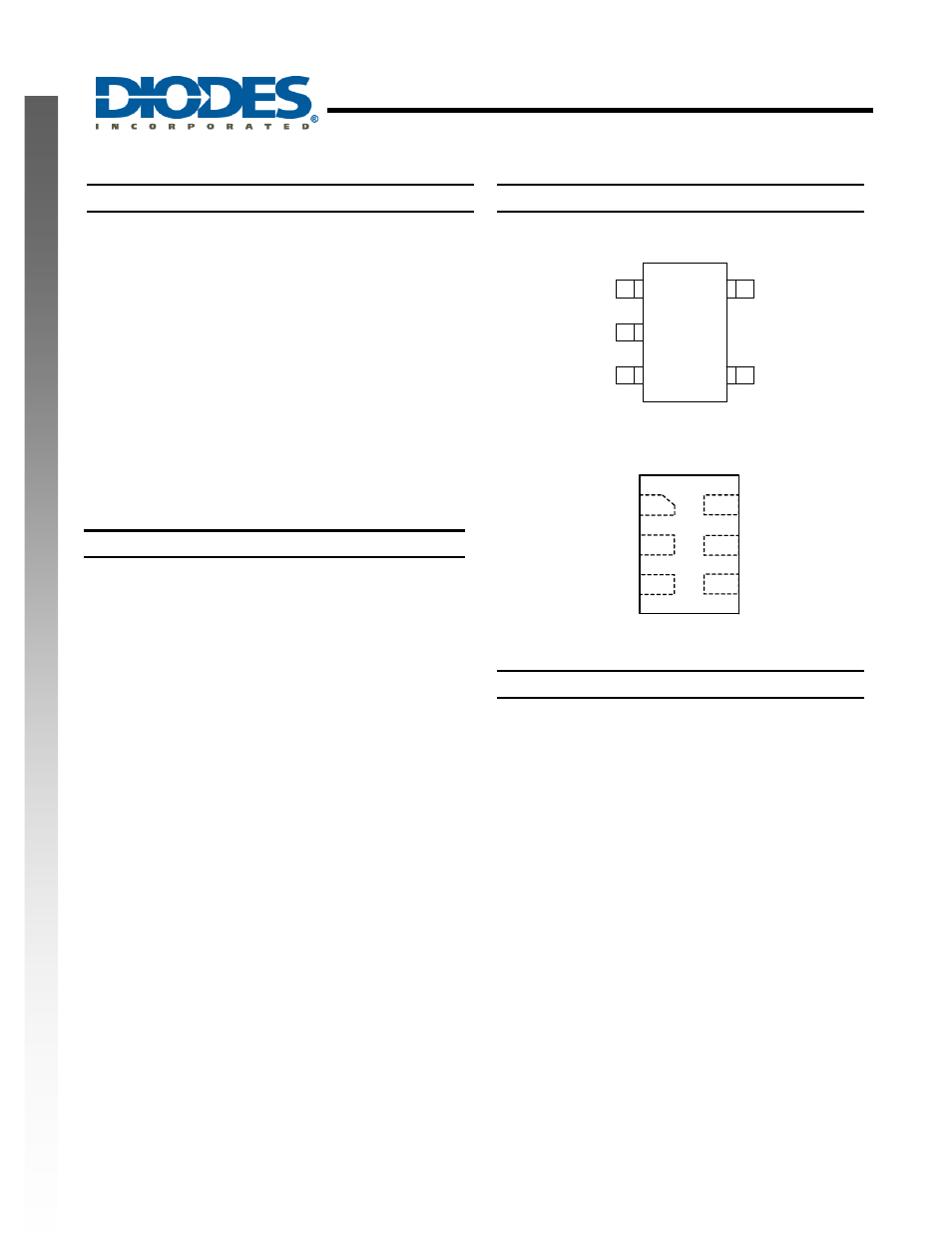

Pin Assignments
SOT25 / SOT353
NC
GND
Y
Vcc
(Top View)
5
4
3
2
1
A
2
3
(Top View)
DFN1410 (Note 2)
NC
A
GND
Y
Vcc
NC
4
6
5
1
Applications
• Voltage
Level
Shifting
• General Purpose Logic
• Power Down Signal Isolation
• Wide array of products such as.
o
PCs, networking, notebooks, netbooks, PDAs
o
Computer peripherals, hard drives, CD/DVD ROM
o
TV, DVD, DVR, set top box
o
Cell Phones, Personal Navigation / GPS
o
MP3 players ,Cameras, Video Recorders
Notes: 1. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied. Please visit our website at
2. Pin 2 and pin 5 of the DFN1410 package are internally connected.
