74LVC32A
Parameter Measuement Information
V
CC
Inputs
V
M
C
L
R
L
V
I
t
r
/t
f
1.8V±0.15V V
CC
≤2ns V
CC
/2 30pF 1KΩ
2.5V±0.2V V
CC
≤2ns V
CC
/2 30pF 500Ω
2.7V 2.7V ≤2.5ns 1.5V 50pF 500Ω
3.3V±0.3V 2.7V ≤2.5ns 1.5V 50pF 500Ω
Voltage Waveform
Pulse Duration
Voltage Waveform
Propagation Delay Times
Inverting and Non Inverting Outputs

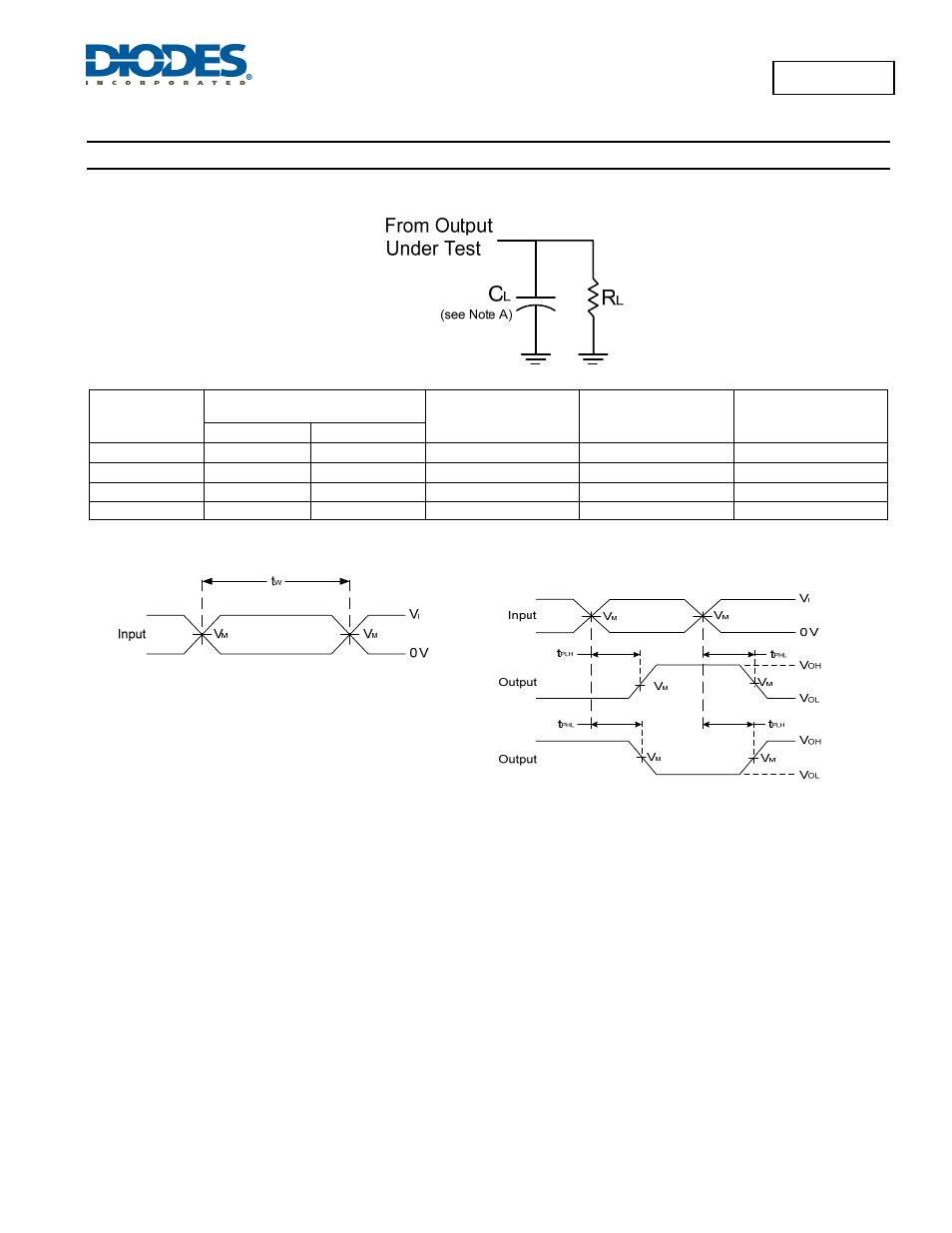

Figure 1. Load Circuit and Voltage Waveforms
Notes: A. Includes test lead and test apparatus capacitance.
B. All pulses are supplied at pulse repetition rate ≤ 10 MHz
C. Inputs are measured separately one transition per measurement
D. t
PLH
and t
PHL
are the same as t
PD
